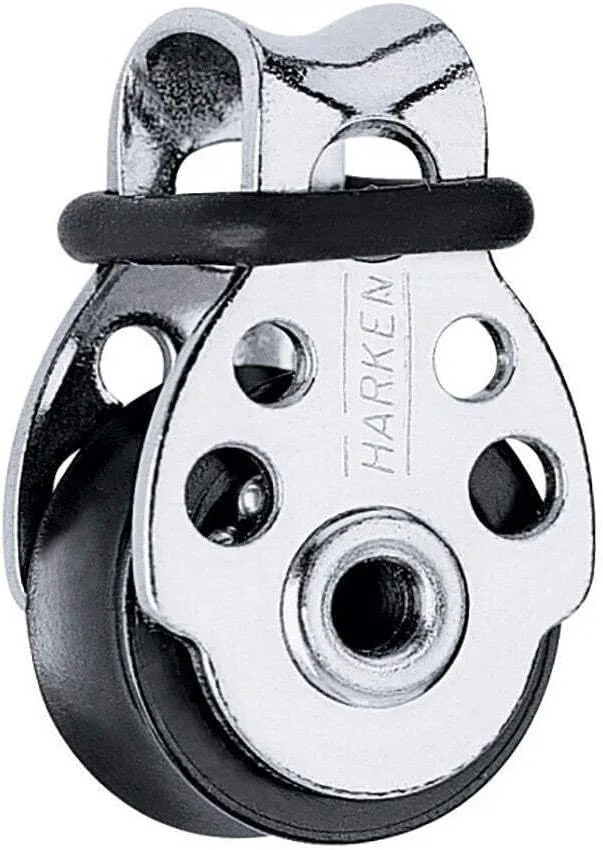

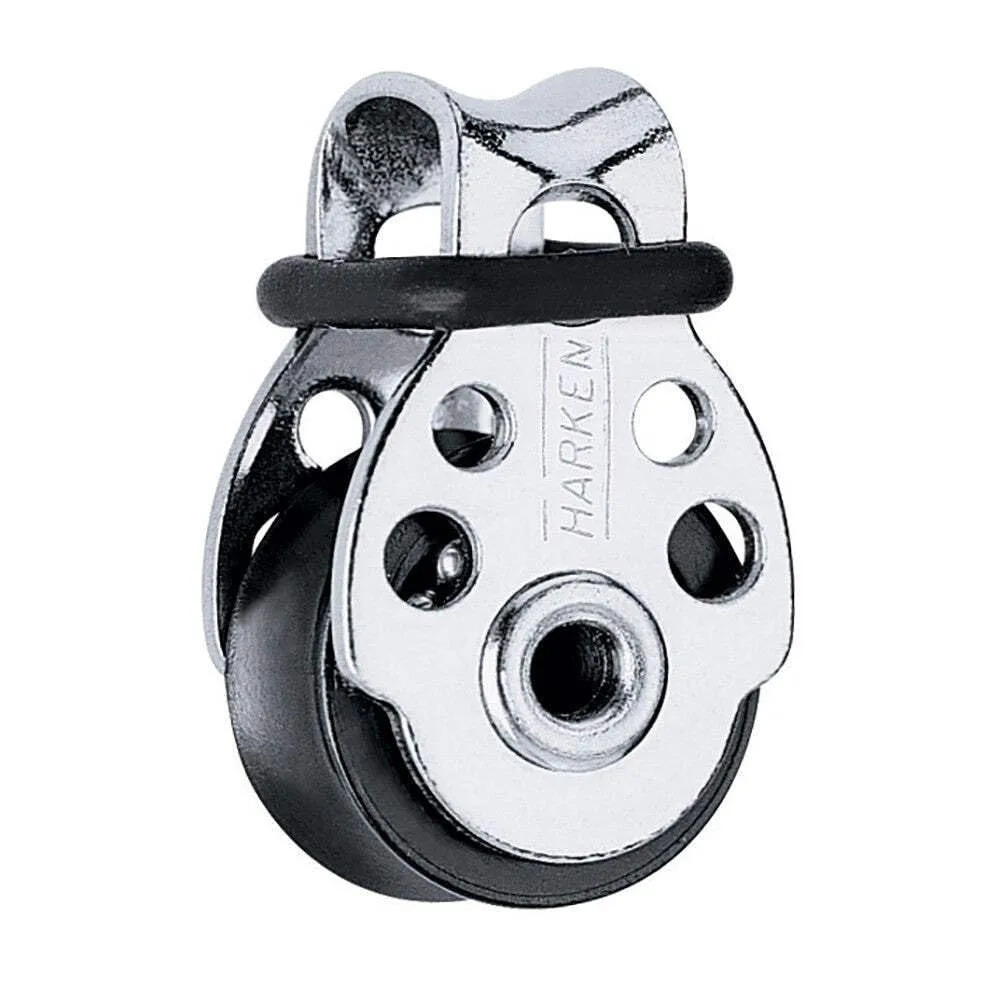

16mm Block The 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading. Specifications: Sheave: 16mm / 5/8in. Length: 29mm / 1-1/8in. Weight: 10g / .33oz Maximum line: 5mm / 7/32in Maximum working load: 113kg/ 250lb Breaking load: 544kg / 1200lb. Marketing note: Great Product.
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | 404 |
| Model Number | 404F |
| Size | One Size |
| UPC | 097653285854 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 0.47 inches |
| Length | 4.8 inches |
| Size | One Size |
| Weight | 0.35 ounces |
| Width | 1.81 inches |
