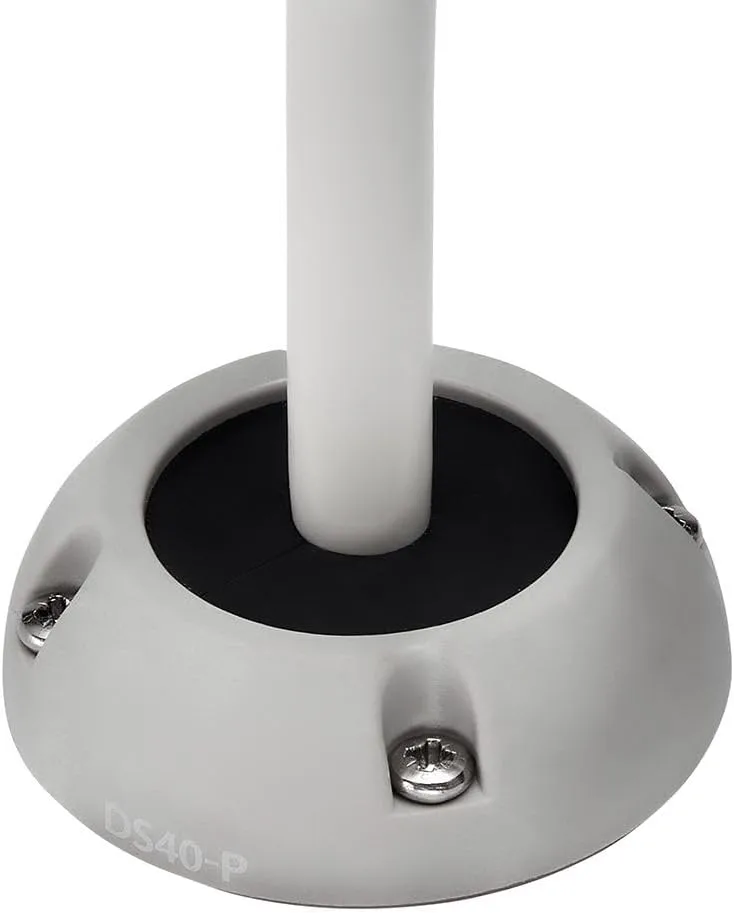

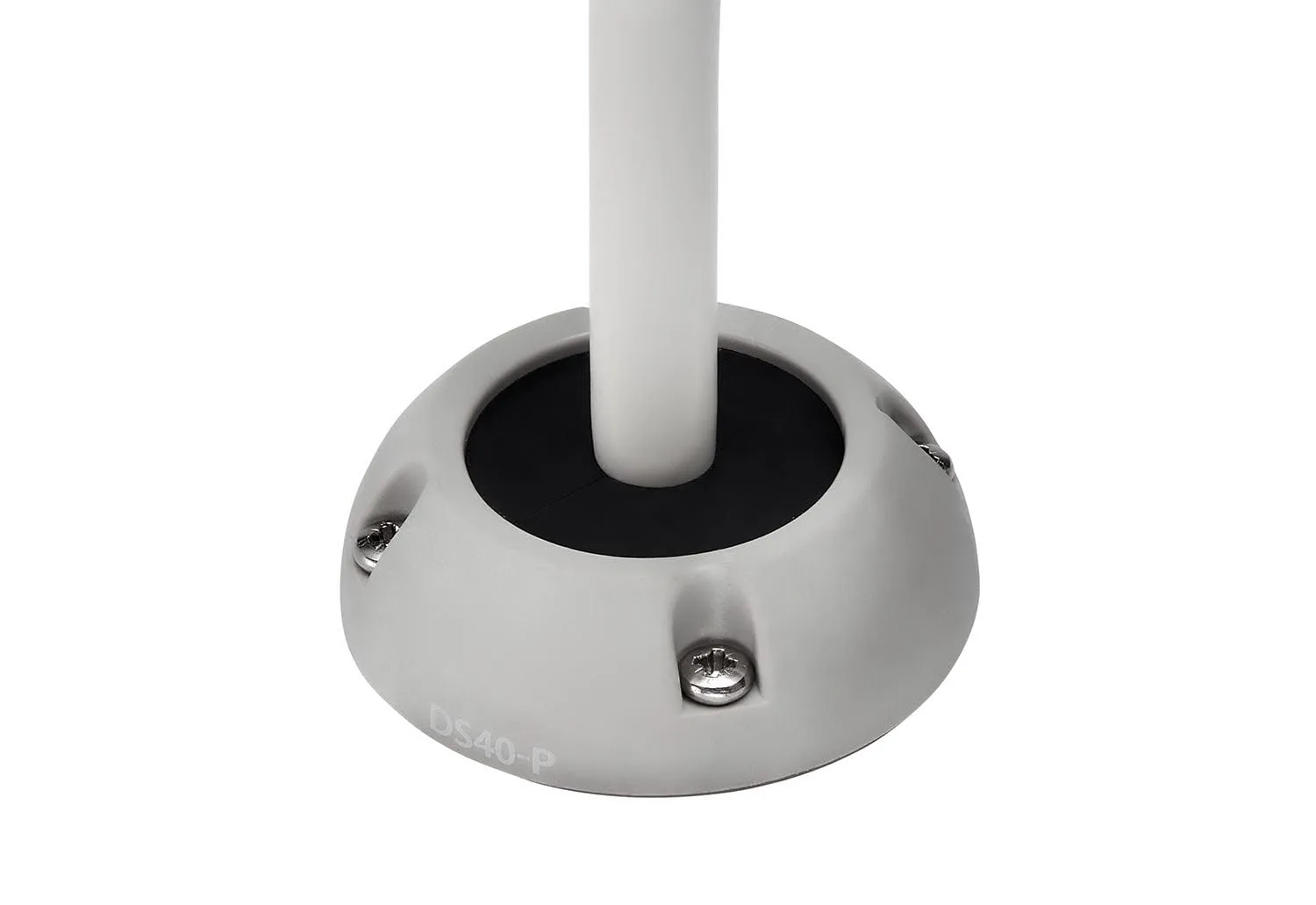

Scanstrut DS40-P Large Cable Seal - Plastic, White
Customize
DS40-P Vertical Cable Seal — Scanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that reduces installation time and ensures a watertight installation for antenna and navlight cables. The split-seal design allows installation without removing connectors. The dome-shaped profile is impact-resistant and provides additional water shielding. Each unit is supplied with pre-drilled and blank inner seals for reliable installation and captive nuts for easy assembly and repeat installations. Technical specifications include fit for cable diameters ~0.4" to 0.59" (12–15 mm), connector clearances up to 1.57" (40 mm), height approx. 0.85" (20.5 mm), color white/grey, orientation vertical, material ASA plastic. In the box: cable seal, mounting hardware, installation manual. Sold as an individual deck seal, model DS40-P.
- Fit type: Universal Fit
- Aesthetic dome-shaped profile provides a stronger, impact-resistant design
- Split-seal option does not require connector removal during install

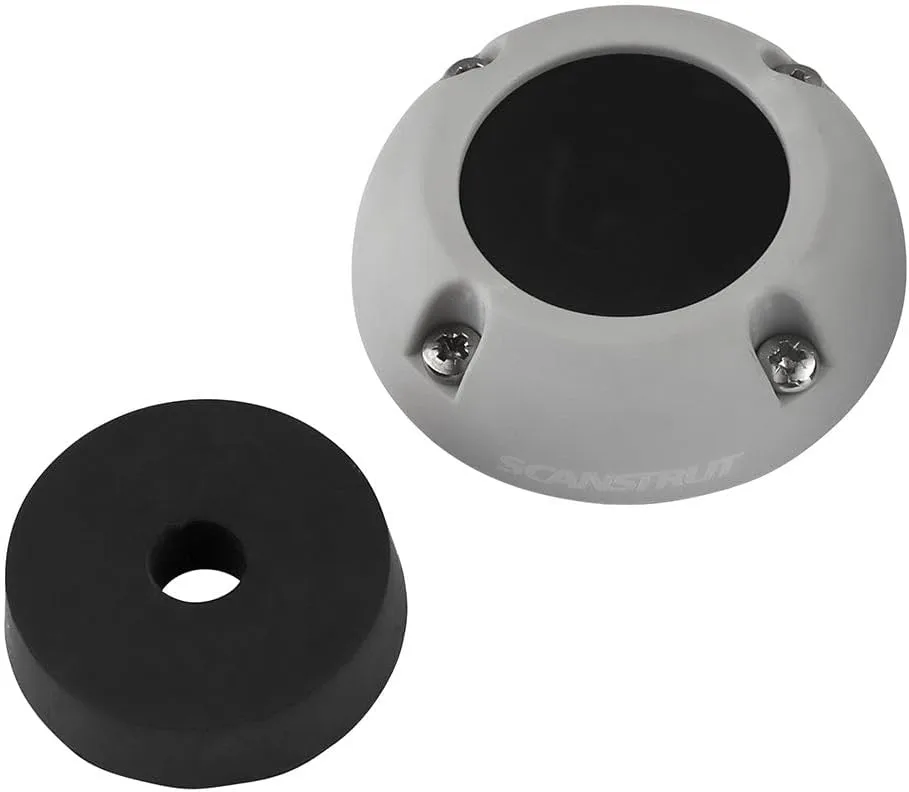

- Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible
- Captive nuts make for easy assembly and also allow reliable repeat installations
Specifications:
| Materials & Construction | |
| Color | White |
| Material | ASA Plastic |
| Maximum Diameter | 1.57 inches |
| Product Details | |
| Included Components | Scanstrut DS40-P Large Cable Seal - Plastic, White |
| Item Package Dimensions L x W x H | 7.87 x 3.62 x 1.18 inches |
| Number of Pieces | 1 |
| Size | L |
| Style | (function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-4:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-4'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated '' : 'none'; } }) });})); Scanstrut DS40-P Large Vertical Cable Seal for Connectors Up to 1.57" and Cables 0.47"-0.59" - Gray Plastic See more |
| Type | Deck Seal |
| Sizing & Dimensions | |
| Height | 1.18 inches |
| Length | 8.27 inches |
| Product Dimensions | 8.27 x 3.54 x 1.18 inches |
| Size | L |
| Weight | 5.28 ounces |
| Width | 3.54 inches |
| Technical Specifications | |
| Global Trade Identification Number | 05060114792821 |
| Item Dimensions Lx Wx H | 8.27 x 3.54 x 1.18 inches |
| Style Details | Scanstrut DS40-P Large Vertical Cable Seal for Connectors Up to 1.57" and Cables 0.47"-0.59" - Gray Plastic |
| Warranty Description | Warranty |
