ROKK Adapter Plate - ROKK Mini/Midi Universal self-Drill Plate
Customize

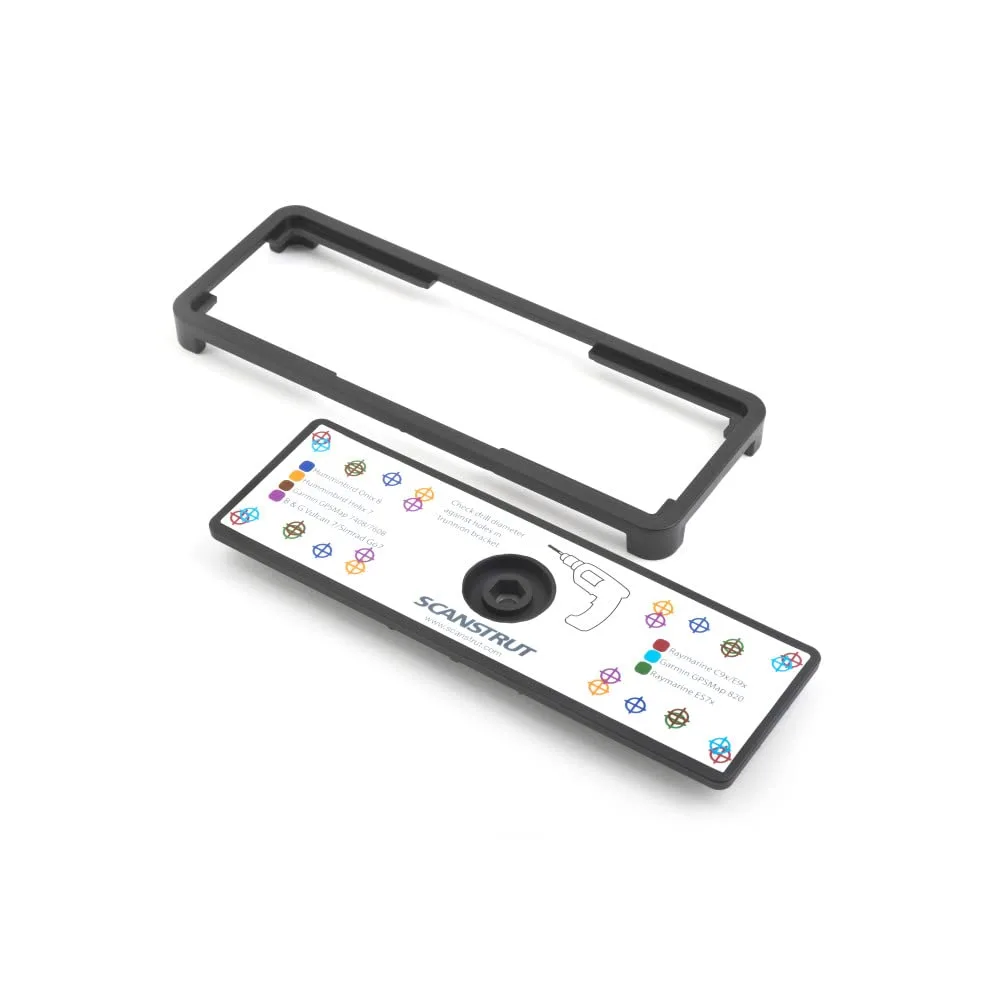

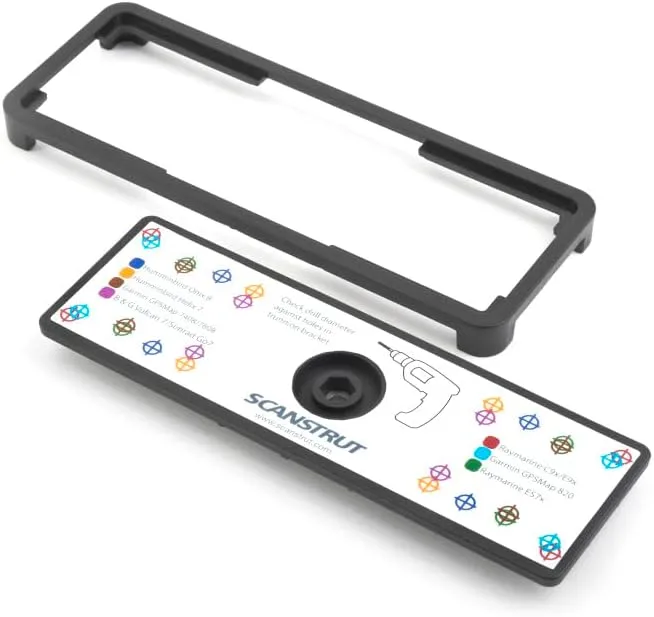

ROKK Midi Universal Top Plate Self-drill Plate. Universal design ensures you only need to drill holes for the footprint of your specific display using the template and jig provided. The RL-513 is one (1) part of a system based around 4 different heavy-duty anodized aluminum mounts that allow your device to attach to the ROKK Midi to unlock its incredible features. Features: Engineered to withstand high shock loading. Universal design ensures you only need to drill holes for the footprint of your specific display using the template and jig provided. Template is color coded for different electronics to make identifying the holes you need to drill as easy as possible. Compatible with Raymarine E9/Raymarine eS75/77/78, Garmin GPSMap 820/Garmin GPSMap 7408/7608, Humminbird Helix 7/Humminbird Onix 8, B&G Vulcan 7. For use with any ROKK Midi mount. Supplied with drilling template and jig. Template color coded for different electronics to make identifying the holes you need to drill as easy as possible. Technical Specifications: Material - ASA Plastic. Item dimensions L x W x H: 8.35 x 3.86 x 0.71 inches. Package Weight (converted): 5.29 ounces. Item Weight (converted): 7.05 ounces. Sold as an Individual, Cut/Uncut: Cut, Mounting Style: Bracket.
- Compatible with Raymarine E9/Raymarine eS75/77/78, Garmin GPSMap 820/Garmin GPSMap 7408/7608, Humminbird Helix 7/Humminbird Onix 8, B&G Vulcan 7
- For use with any ROKK Midi mount
- Supplied with drilling template and jig
- Template color coded for different electronics to make identifying the holes you need to drill as easy as possible
- Universal design ensures you only need to drill holes for the footprint of your specific display using the template and jig provided
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Cut/Uncut | Cut |
| Included Components | Scanstrut RL-513 ROKK Universal Self-Drill Top Plate |
| Model Name | Scanstrut RL-513 ROKK Universal Self-Drill Top Plate |
| Mounting Style | Bracket |
| Number of Items | 1 |
| Part Number | RL-513 |
| Shank Type | Straight |
| Tool Flute Type | Spiral |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 0.71 inches |
| Item Package Dimensions L x W x H | 8.35 x 3.86 x 0.71 inches |
| Length | 8.35 inches |
| Minimum Bore Diameter | 0.71 Inches |
| Product Dimensions | 8.35 x 3.86 x 0.71 inches |
| Size | No Size |
| Weight | 7.05 ounces |
| Width | 3.86 inches |
| Technical Specifications | |
| EU Spare Part Availability Duration | 5 Years |
| Surface Recommendation | Glass, Plastic, Metal |
| Unit Count | 1.0 Count |
