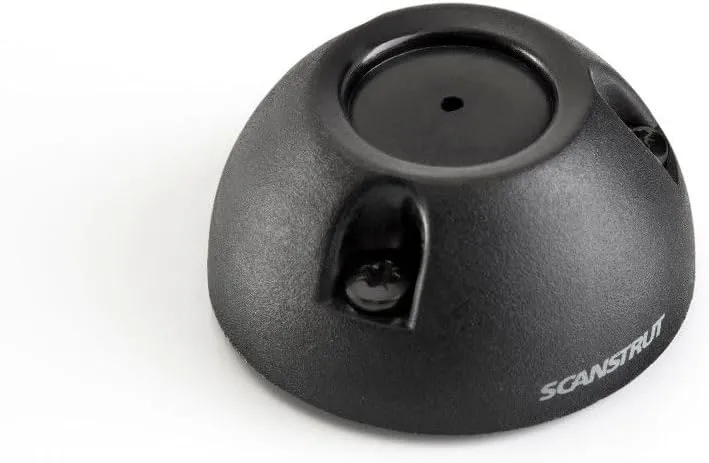

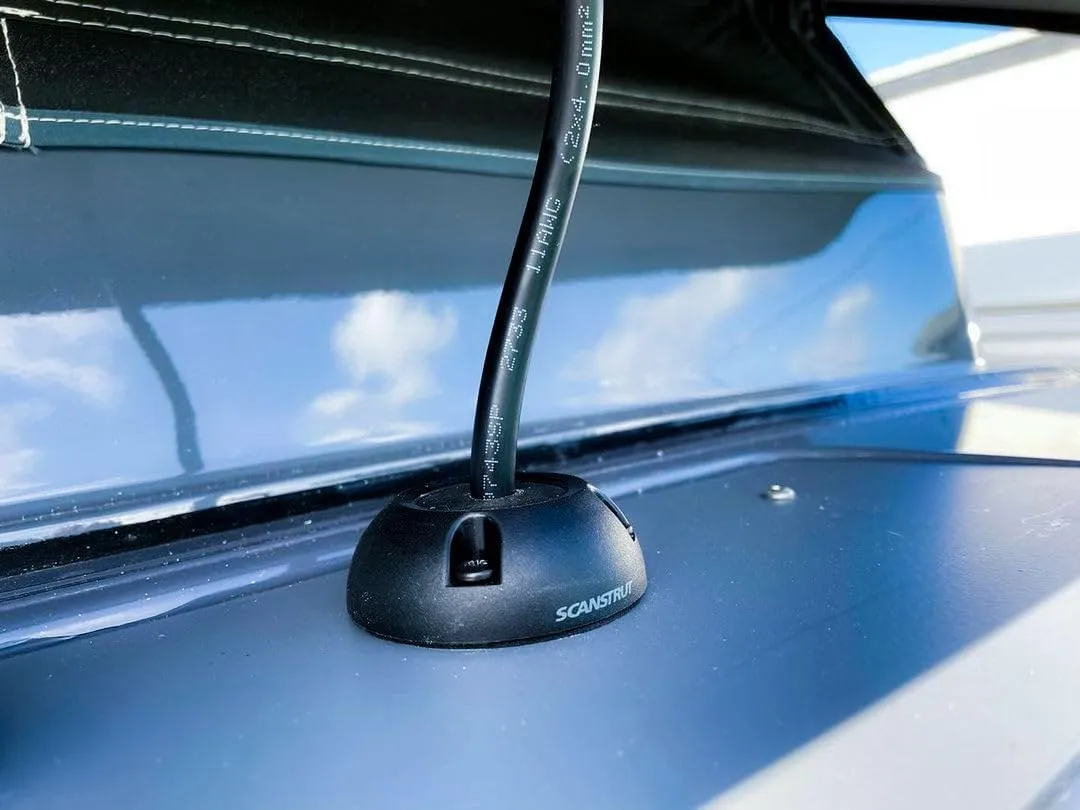

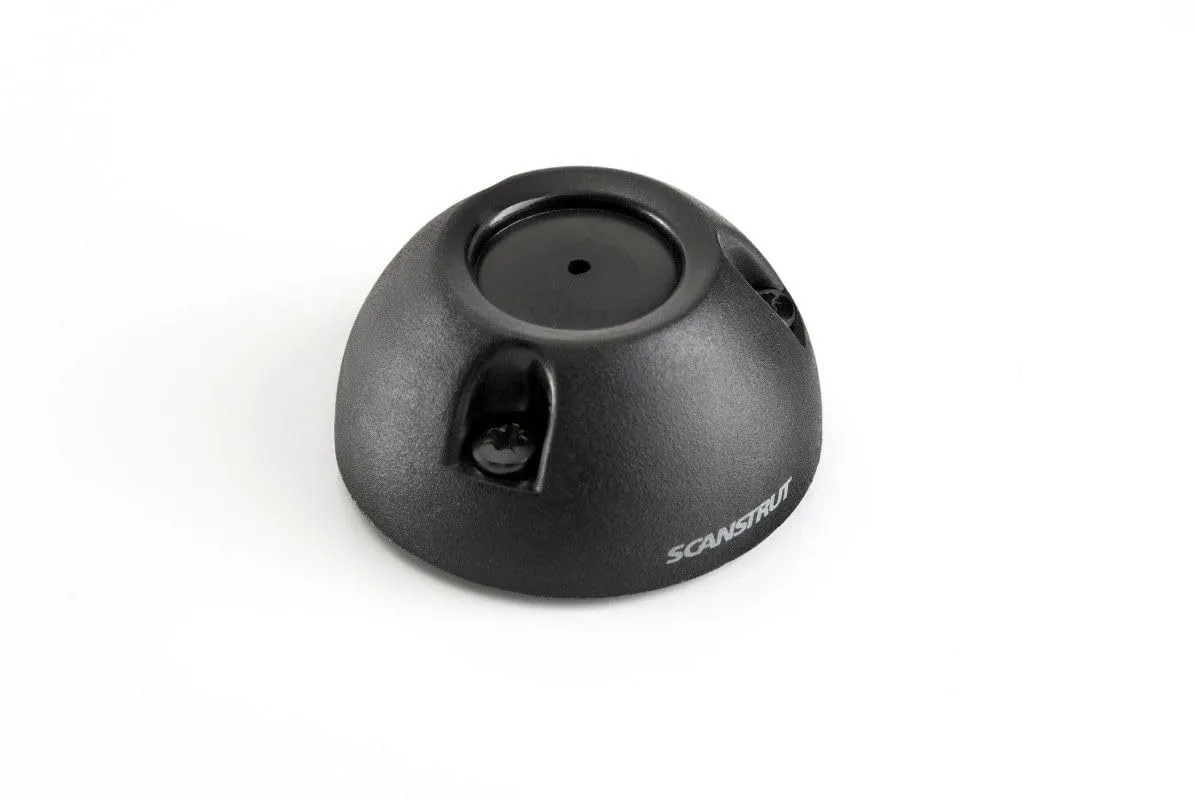

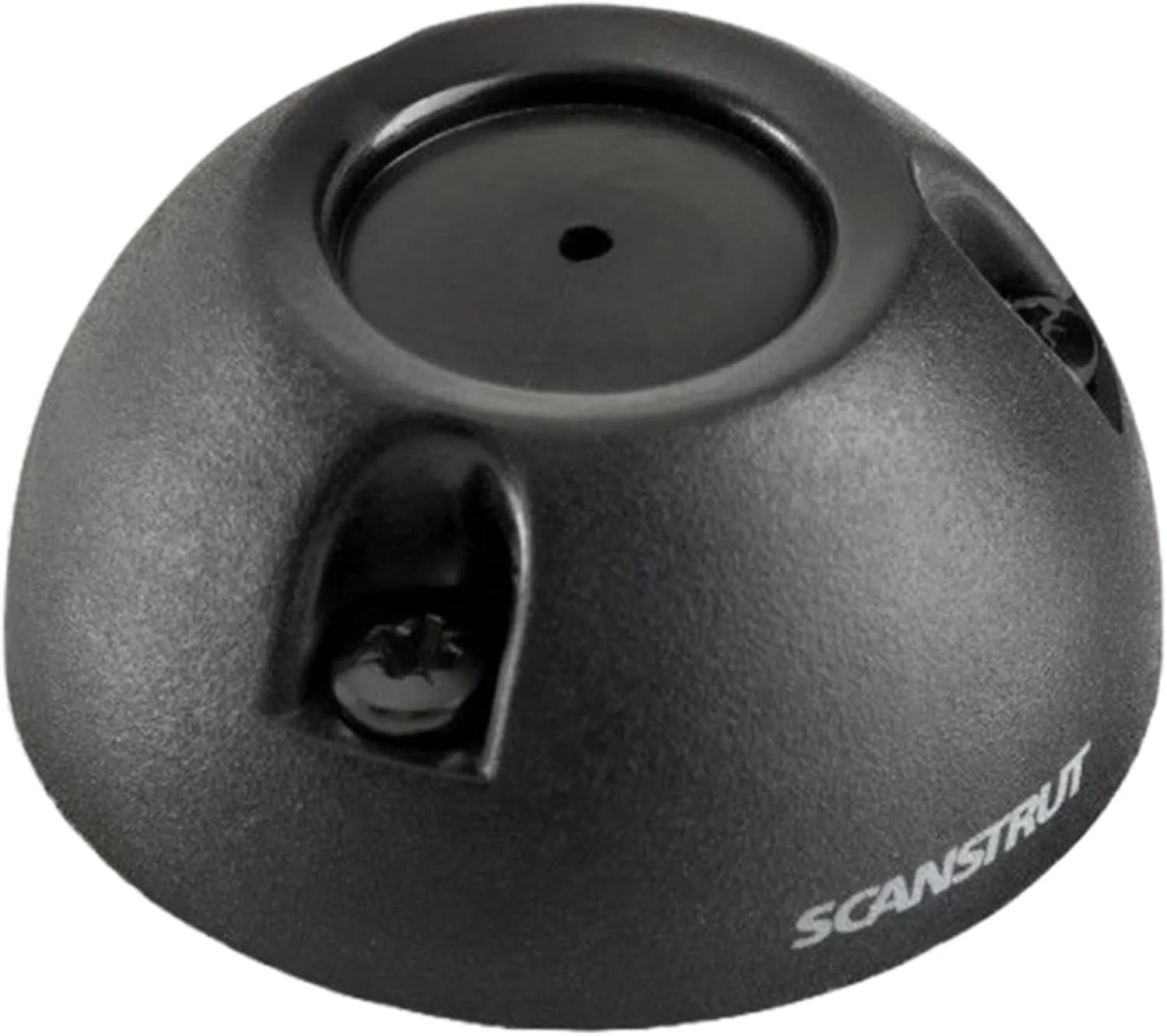

Scanstrut DS16-P-BLK Vertical Cable Seal - Black
Customize
DS16-P-BLK Vertical Cable Seal - Black. Scanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that reduces installation time and delivers a proven watertight installation for antenna and navigation light cables. Features a split-seal option so connectors need not be removed, supplied with both pre-drilled and blank inner seals for customization, and a multi-functional dome shape for increased impact resistance and additional water shielding. Marine-grade materials: UV-stable ASA plastic body, 316 stainless steel fixings and 3M closed-cell gasket (as referenced in product details). Technical fit: fits cable diameters approximately 0.08" to 0.35" (2–8 mm) and connector sizes up to 0.63" (16 mm). Supplied as an individual deck seal with mounting hardware and installation manual.

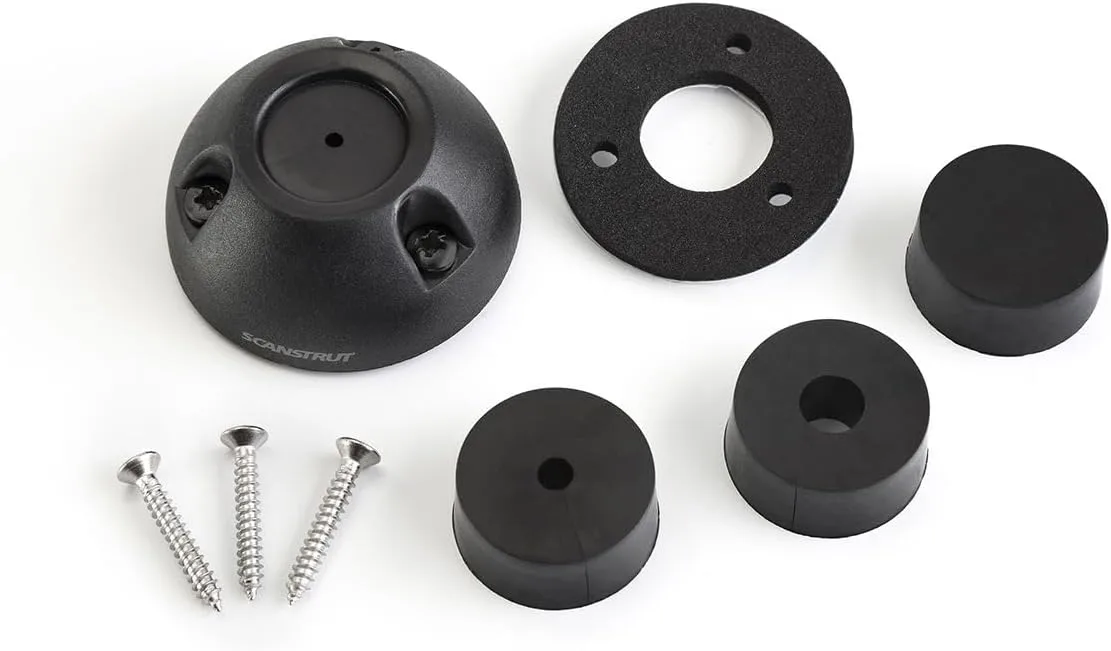

- Simple & Flexible Installation - Captive nuts ensure fast, tool-friendly assembly and support reliable reinstallation; Supplied with both pre-drilled and blank bungs for full customization; Split bung option allows cable installation without removing factory-installed connectors (up to Ø16 mm)
- Waterproof by Design - Rated IP68 for complete water protection; Tapered bung and closed-base seal prevent water intrusion without requiring additional sealant
- Marine-Grade Materials - Made from UV-stable, hard-wearing plastic engineered to withstand marine environments; 316 stainless steel fixings and a 3M closed-cell gasket ensure a long-lasting installation
- Rugged Dome Profile - Strong, low-profile design with an aesthetic dome shape; Offers increased impact resistance and an added shield against water ingress; Perfect for tight spaces on rooftops, decks, or bulkheads
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Acrylonitrile Styrene Acrylate (ASA Plastic) |
| Outer Material | Acrylonitrile Styrene Acrylate (ASA Plastic) |
| Product Details | |
| Included Components | Scanstrut DS16-P-BLK Cable Seal - Black |
| Installation Type | Self-Adhesive |
| Model Name | Scanstrut DS16-P-BLK Cable Seal - Black |
| Number of Items | 1 |
| Type | Deck Seal |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 1.18 inches |
| Length | 8.27 inches |
| Product Dimensions | 8.27 x 3.54 x 1.18 inches |
| Product Weight | 0.16 pounds |
| Size | Mini / Individual |
| Weight | 2.56 ounces |
| Width | 3.54 inches |
| Technical Specifications | |
| Installation Type | Self-Adhesive |
| Model Name | Scanstrut DS16-P-BLK Cable Seal - Black |
