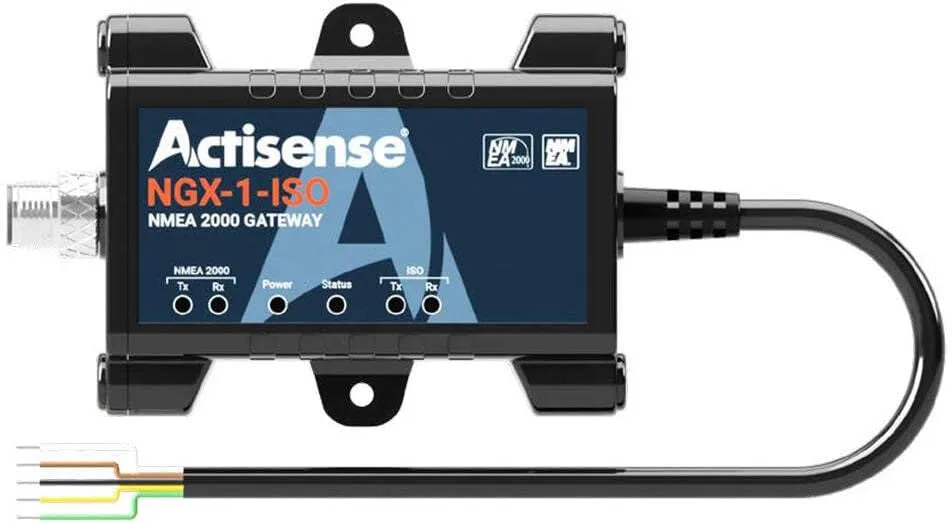

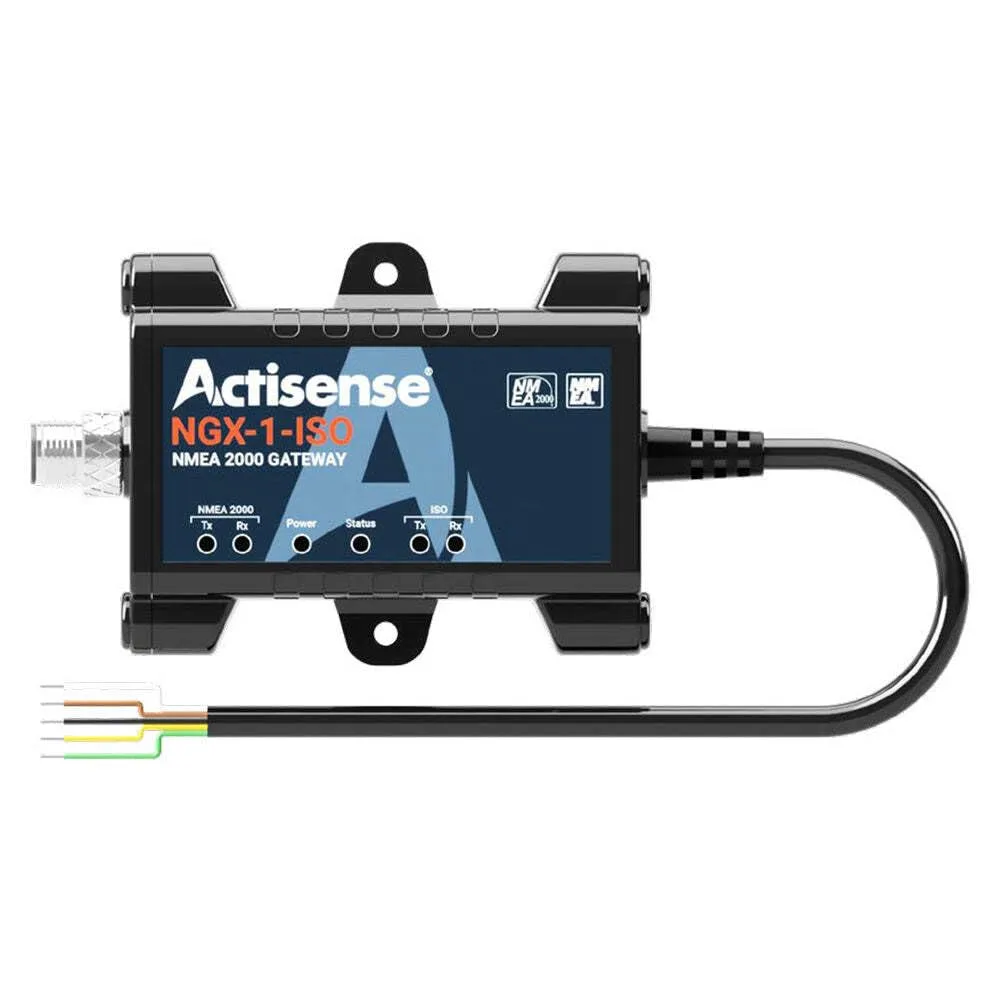

The Actisense NGX-1-ISO is an intelligent NMEA gateway combining PC interfacing and NMEA data conversion in a single unit. Configure the NGX-1 to operate as an NMEA 2000 PC interface or as a bi-directional NMEA 0183/NMEA 2000 conversion gateway. It supports every available PGN in the NMEA 2000 standard and has the largest conversion library available. Features include OPTO-isolated input and ISO-Drive output, support for baud rates up to 230,400, advanced configuration via Actisense Toolkit, diagnostic LEDs, galvanic isolation to USB, IsoDrive tested to 1000V, IP67 protection, and extensive certifications (NMEA 2000 Certified, IEC 61162-1/2 compliance, RoHS/REACH). Supplied with a 0.75 m cable (approx. 2.4'), supports Fast Heading at 10Hz, firmware upgradeable on-bus, and includes powerful network diagnostic tools (Actisense NMEA Reader and Toolkit). 3 year guarantee, extendable to 5 years upon registration.
| Materials & Construction | |
| Color | Black |
| Housing Material Body | Flame retardant Polycarbonate |
| Housing Material End Caps | Flame retardant PBT |
| Material | Plastic |
| Product Details | |
| Model Name | NGX-1-ISO |
| Number of Items | 1 |
| Special Feature | Waterproof, Shakeproof. |
| Sizing & Dimensions | |
| Height | 0.04 inches |
| Item Dimensions Lx Wx H | 6 x 6 x 0.04 inches |
| Item Package Dimensions L x W x H | 6 x 6 x 2 inches |
| Length | 6 inches |
| Product Dimensions | 6 x 6 x 0.04 inches |
| Weight | 5.60 ounces |
| Width | 6 inches |
| Technical Specifications | |
| Cable Length (Feet) | 2.4' |
| Data Interface | Nmea 0183 |
| Isolation | NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V; NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V |
| NMEA 2000 Port | Speed / Baud Rate - 250kbps; Connectivity - M12 Male (A coded) |
| Power Supply | Supply Voltage (NMEA 2000 Port) - 9 to 30V DC; Supply Current (NMEA 2000 Port) - 62mA @ 9V DC; Load Equivalent Number (LEN) - 2 |
