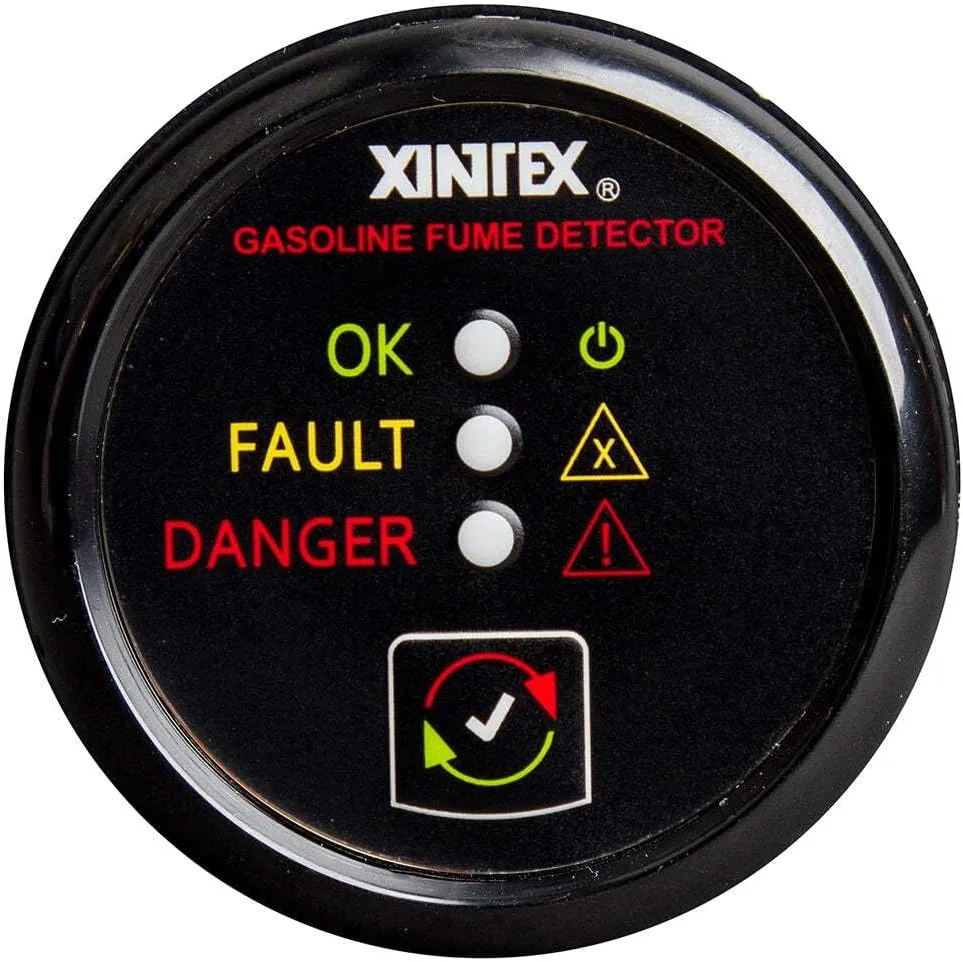

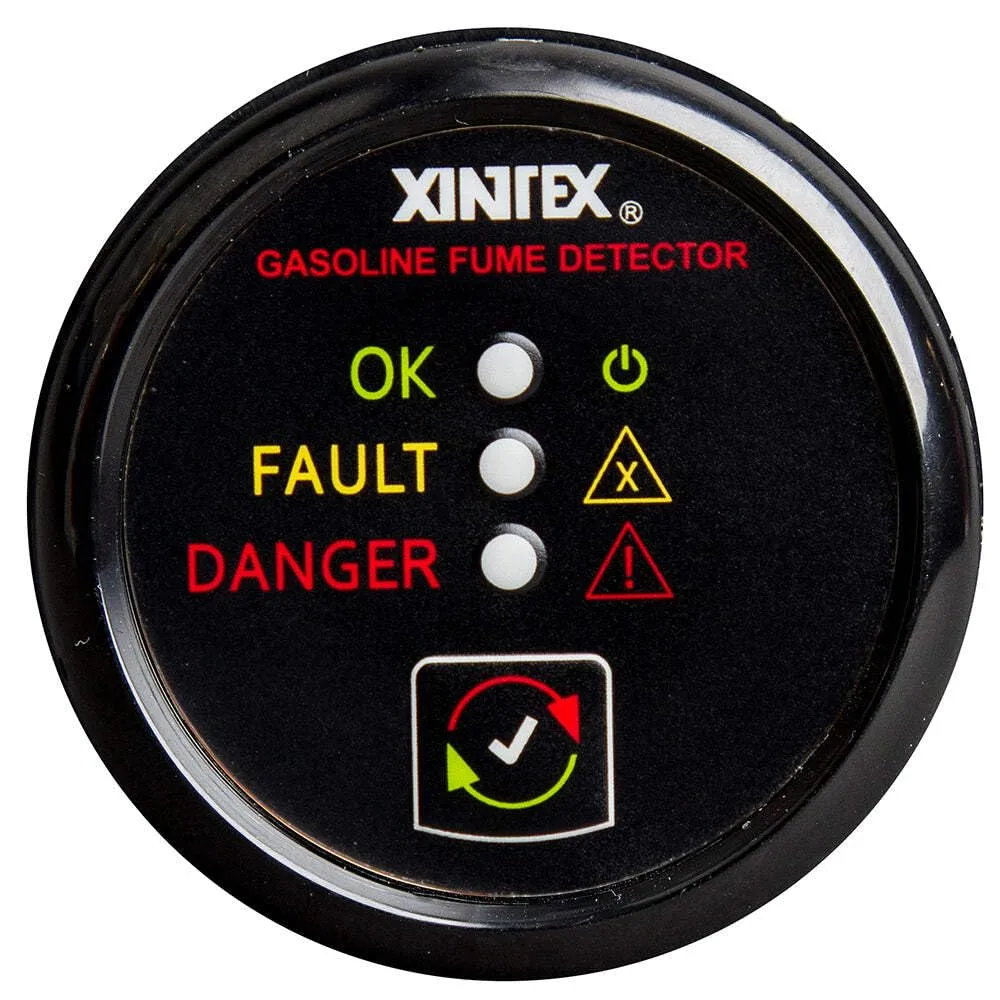

Fireboy-Xintex Gasoline Fume Detector - Black Bezel - 12/24V
Customize
Gasoline Fume Detector - Black Bezel - 12/24V The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate. Features: Simple Installation. Audible and visual alarm to indicate LEL (Lower Explosive Level) presence. Monitors one (1) single area. In the Box: Fume Detector. Fuel sensors x one (1). 20' Extension Cable x one (1). Instruction manual. Technical Specifications (from ProductDatabase and marketplace data): Operating Temperature: -40° to 185°F (-40° to 85°C). Current Draw Nominal - 55mA. Current Draw Maximum - 95mA. Operating Voltage - 9 to 30V DC. Alarm Horn - 68 dB. Display Style - Round with Black Bezel. Display Dimensions - 2-3/16" (5.6 cm) round. Cutout Dimension - 2-1/16" (5.2 cm) round hole. Marketplace/Marketing: BEST IN CLASS. AFFORDABLE PARTS. Single unit, plastic construction, black bezel finish. Ideal for automotive/RV and marine safety applications.
- AFFORDABLE PARTS
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Alarm | Audible |
| Blower Relay | No |
| Fume Type | Gasoline |
| Generator Shutdown | No |
| Material | Plastic |
| Number of Items | 1 |
| Operating Humidity | 95 percent |
| Power Source | Battery Powered |
| Sensors Included | 1 |
| Style | simple |
| Voltage - Input Range (Volts) | 9 To 30 |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 4 x 4 inches |
| Weight | 1 pounds |
| Width | 4 inches |
