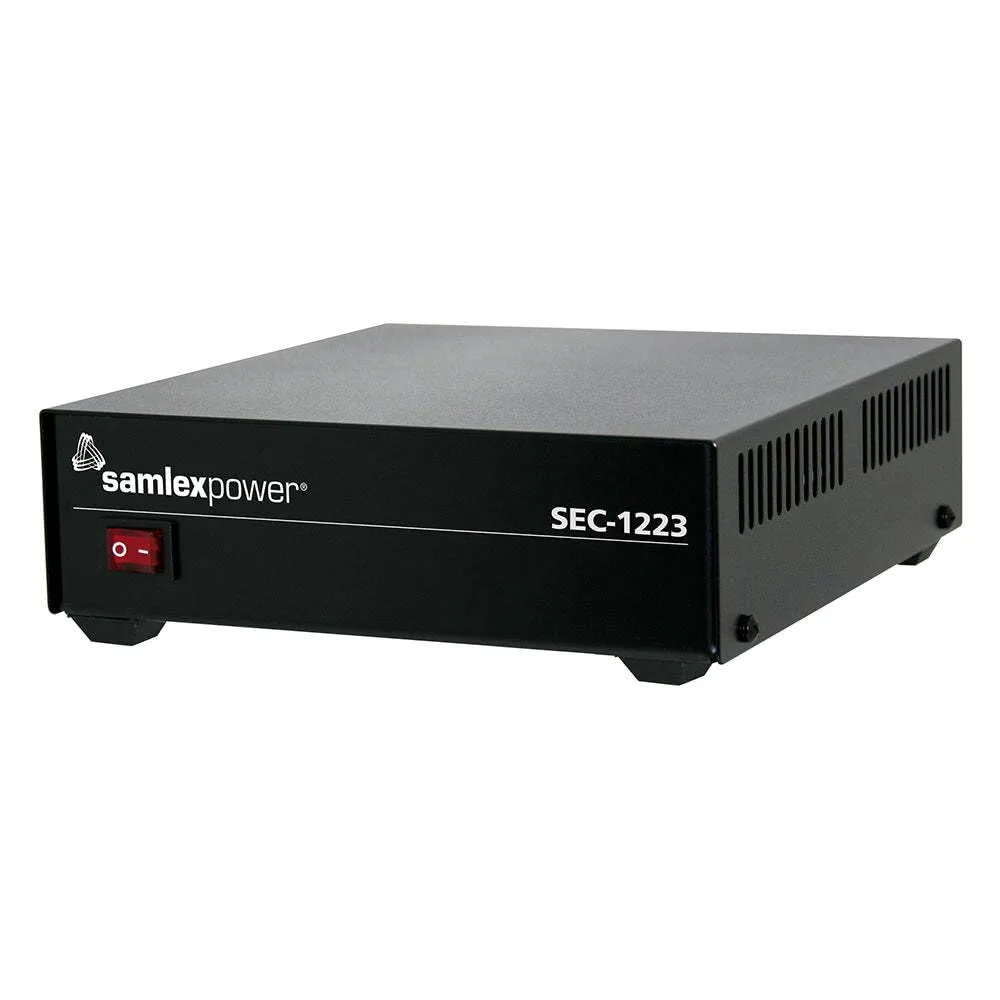

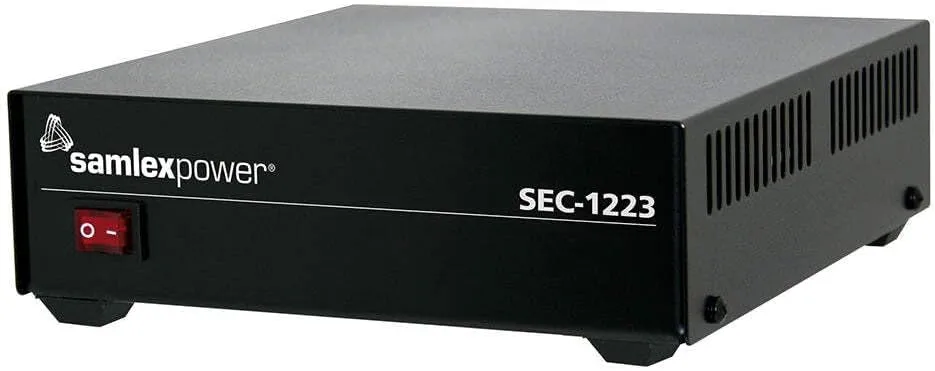

Samlex SEC-1223 Desktop 23 Amp Switching Power Supply, Advanced Switch-Mode Technology
Customize
SEC-1223 Power Supply This high-efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz. These advanced switch-mode DC power supplies were designed specifically for land mobile radio (LMR) applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit, and over-voltage protection. The AC-DC switching power supply conforms to FCC Part 15(B), class B digital device. Features: Advanced switch-mode technology Reliable power with minimum weight and size Circuit innovations minimize output voltage ripple and RFI Input voltage can be set at 120VAC or 240VAC (internal jumper) UL listed to both USA & Canadian safety standards Specifications: Input: 100-130 VAC Output: 13.8 VDC Amps: 23 Amps Fuse: 6.3 Amps Weight: 3.5 (lbs)/1.6 (kg) Dimensions: 7.28 x 8.19 x 2.40 (in)/18.5 x 20.8 x 6.1 (cm) Safety: UL, FCC Applications: Two way radio base stations Communications systems Security systems Test equipment Plotters GPS receivers Automotive & Marine displays DC computers 12 Volt lighting systems OEM applications Samlex SEC-1223 Desktop 23 Amp Switching Power Supply, Advanced Switch-mode Technology, Reliable Power with Minimum Weight and Size, Circuit Innovations Minimize Output Voltage Ripple and RFI. Includes fused protection (6.3A), over-current/short-circuit/over-voltage protection, and is suitable for communications, radio base stations, and related equipment.
- Over-current, short circuit and over-voltage protection, Advanced switch-mode technology. Fuse 6.3 amps
- Output Current: 23 amps continuous, 25 amps max surge
- Output: 13.8 VDC
- Input: 100-130 or 200-260 V AC
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Product Details | |
| Compatible Devices | Personal Computer |
| Connector Type | ATX |
| Cooling Method | Air |
| Form Factor | SFX |
| Included Components | Samlex SEC-1223 Desktop 23 Amp Switching Power Supply, Advanced Switch-mode Technology, Reliable Power with Minimum Weight and Size, Circuit Innovations Minimize Output Voltage Ripple and RFI |
| Model Name | (function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) { P.when('A').execute(function(A){ A.on('a:truncate:po-attribute-truncate-0:updated', function(data) { var isTruncated = !data.truncateInstance.getIfTextFits(); var seeMoreElement = document.getElementById('po-attribute-see-more-id-0'); if(seeMoreElement) { seeMoreElement.style.display = isTruncated '' : 'none'; } }) });})); Samlex SEC-1223 Desktop 23 Amp Switching Power Supply, Advanced Switch-mode Technology, Reliable Power with Minimum Weight and Size, Circuit Innovations Minimize Output Voltage Ripple and RFI See more |
| Number of Items | 1 |
| Output Wattage | 240 Watts |
| Warranty Description | Warranty |
| Wattage | 100 watts |
| Sizing & Dimensions | |
| Height | 2.1 inches |
| Length | 9.8 inches |
| Product Dimensions | 9.8 x 8.8 x 2.1 inches |
| Size | One Size |
| Weight | 3.9 pounds |
| Width | 8.8 inches |
| Technical Specifications | |
| Continuous Current | 23 amps |
| Features | Over-current, short-circuit and over-voltage protection; RFI suppression; UL-60950-1; FCC Part 15(B) Class B |
| Fuse | 6.3 Amps |
| Input | 100-130 or 200-260 V AC |
| Output | 13.8 VDC |
| Surge Current | 25 amps |
| Warranty | Warranty |
