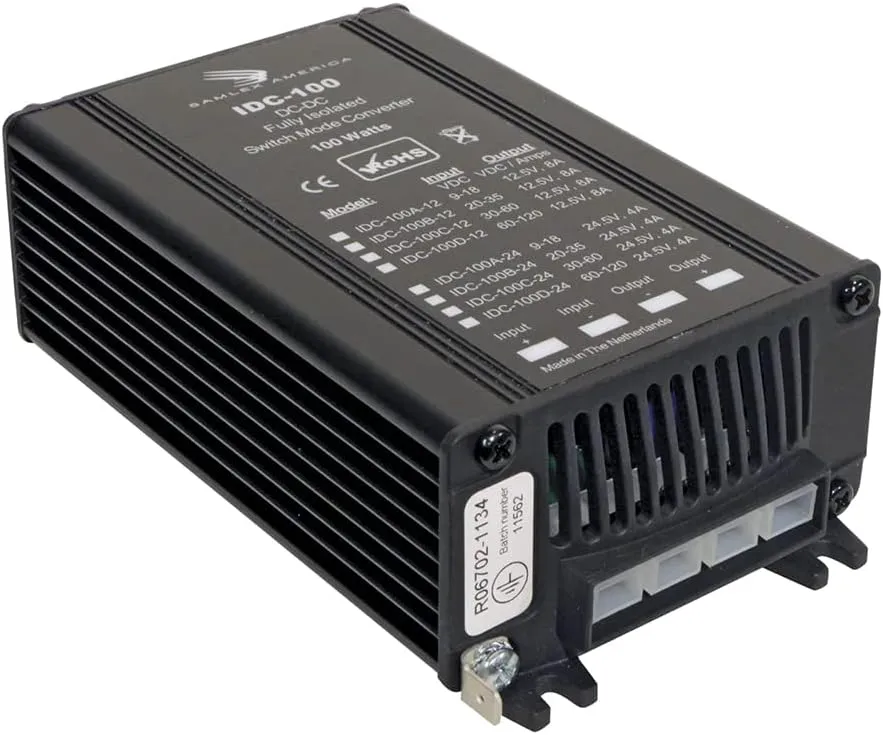

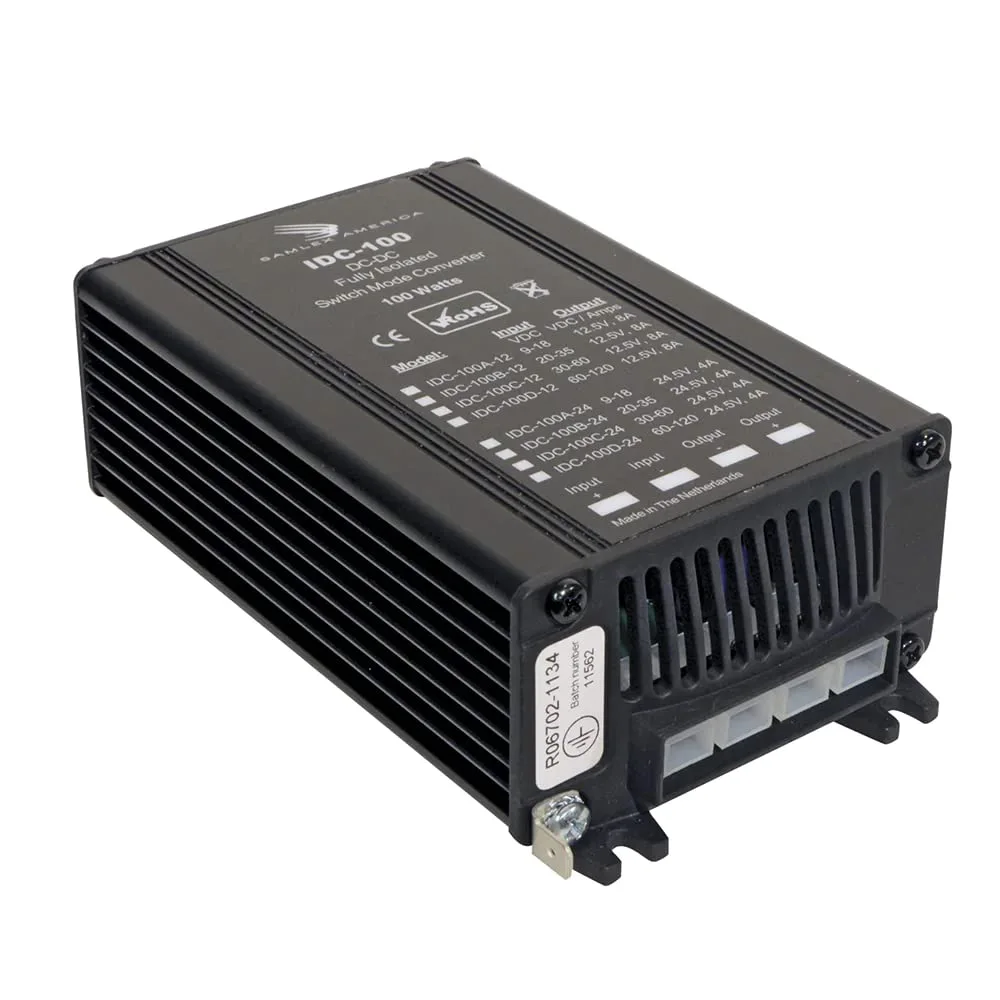

Samlex 100W Fully Isolated DC-DC Converter - 8A - 20-35V Input - 12.5V Output

100W Fully Isolated DC-DC Converter - 8A - 20-35V Input - 12.5V Output IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 8 Amps (at 35 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100B-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE. Features: Fully Isolated Short Circuit Protected Current Limited 2 Year Warranty CE Approved Specifications: Input: 20-35 VDC Output: 12.5 VDC Amps: 8 Amps Weight: 1.2 (lbs) Weight: 0.54 (kg) Dimensions: 6 x 3.5 x 1.9 (in) Dimensions: 15.2 x 8.9 x 4.8 (cm) Safety: CE Warranty: 2 Year Limited Applications: Earth moving equipment Heavy trucks Buses Marine vehicles CB radios 12 Volt lighting systems AM/FM sound systems WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Great Product
