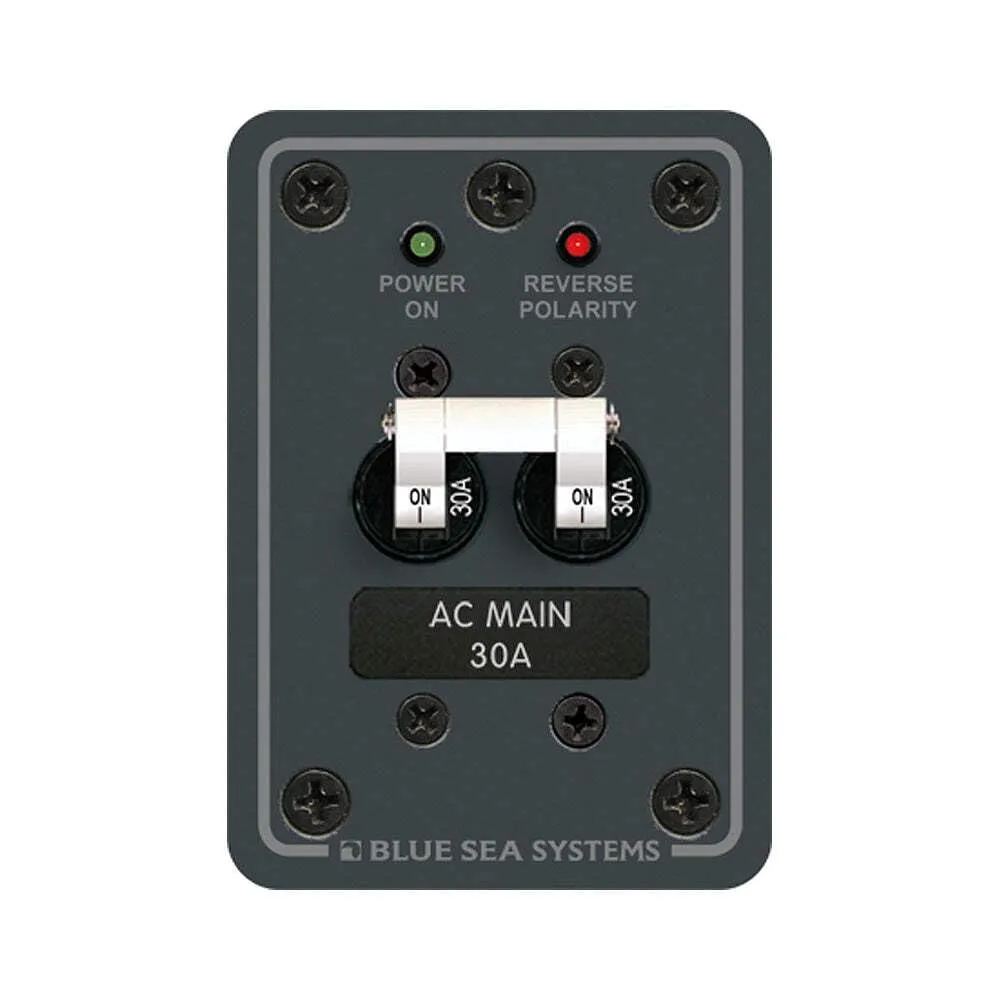

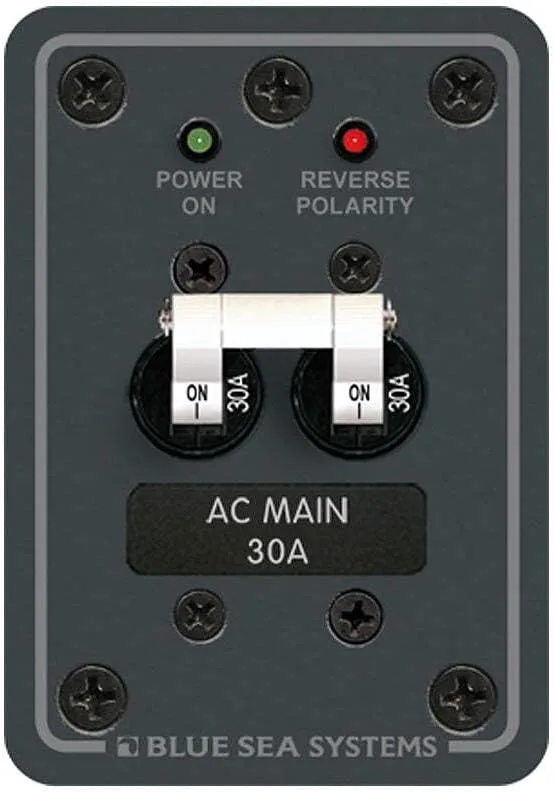

Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel
Customize
8077 AC Main Only Toggle Circuit Breaker Panel. Features: Red reverse polarity indicating LED; safety ground screw on panel back; combines switching and circuit protection into a single device; "Trip Free" design cannot be held "ON" during fault current condition. Specifications: Nominal Voltage: 120v AC; Maximum Voltage: 277v AC / 65v DC. Height: 3.75"; Width: 2.63". Included: (1) 8034 LED - 120v AC Green; (1) 8066 LED - 120v AC Red; (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main). WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Operation Mode: manual. Operating Voltage: 1.2E+2 Volts (AC). Contact Material: Copper. Actuator Type: Toggle. Circuit Type: 1-way. Item dimensions L x W x H: 7 x 4 x 3 inches. Terminal: Screw. Connector Type: Screw Terminals. Contact Type: Normally Open. Package Weight: 0.7 Pounds. Item Weight: 318 Grams. Great Product.
- Great Product
Specifications:
| Materials & Construction | |
| Color | No Color |
| Contact Material | Copper |
| Material | Copper |
| Product Details | |
| Ac/dc | Ac |
| Actuator Type | Toggle |
| Circuit Type | 1-way |
| Connector Type | Screw Terminals |
| Contact Type | Normally Open |
| Control Method | Touch |
| Included Components | Great Product |
| Max Breaker Quantity | 1 |
| Number of Items | 1 |
| Number of Positions | 1 |
| Operating Voltage | 1.2E+2 Volts (AC) |
| Operation Mode | manual |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 4 x 3 inches |
| Size | One Size |
| Weight | 11.22 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Circuit Type | 1-way |
| Connector Type | Screw Terminals |
| Contact Type | Normally Open |
| Operating Voltage | 1.2E+2 Volts (AC) |
| Terminal | Screw |
