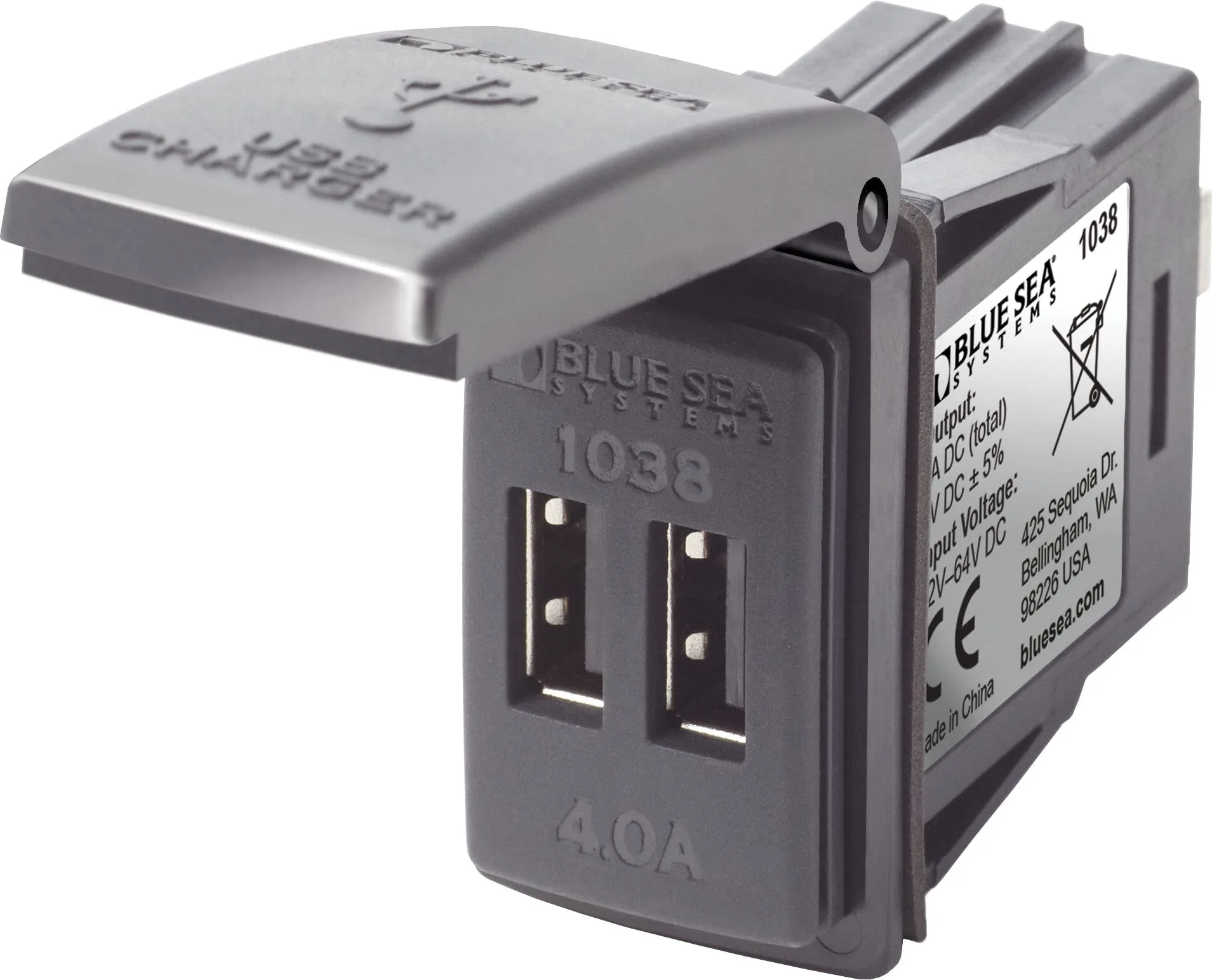

Blue Sea Systems 1038 48V 4A Contura Switch Mount Dual USB Charger, Grey
Customize
1038 48V Dual USB Charger Contura Switch Mount. Intelligent device recognition maximizes charge rate for phones, tablets, or other mobile devices. Features: Ideal for golf carts and other 48V systems; spring-hinged lid keeps debris and moisture out; charges at the speed required by specific devices; internal filtering for reduced electronic interference; over temperature protection; conformal coated circuit board for the harsh marine environment; mounts in an existing Contura switch aperture. Specifications include Max Output Current: 4A DC (total); Input Voltage: 48V DC; Input Voltage Range: 32-64V DC; Reverse Polarity Protection; Short Circuit Protection; Thermal Overload Protection; USB: 2.0, Type A. Item dimensions (L x W x H): 6.5 x 3 x 2.25 inches. Mounting Type: Surface Mount. Terminal: Screw. Connector Type: USB. Contact Material: Copper. International Protection Rating: IP54. Limited Lifetime warranty.
- Plastic
- Made in the USA or Imported
- Maximum Output Current: 4A DC (total), Input Voltage : 48V DC, Output Voltage: 5V DC ±5%, Input Voltage Range: 32-64V DC, Parasitic Current Draw: 10mA, Port Configuration: Intelligent Device Recognition, Reverse Polarity Protection: Yes, Short Circuit Protection: Yes, Thermal Overload Protection: Yes, USB: 2.0, Type A
- Ideal for golf carts and other 48V systems
- Spring-hinged lid keeps debris and moisture out and conformal coated circuit board for the harsh marine environment
- Charges at the speed required by specific devices
- Internal filtering for reduced electronic interference
- Over temperature protection
- Mounts in an existing contura switch aperture
Specifications:
| Materials & Construction | |
| Color | Grey |
| Material | Copper |
| Product Details | |
| Circuit Type | parallel |
| Connectivity Protocol | Usb |
| Connector Type | Usb |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 4 Amps |
| Included Components | USB Charger |
| International Protection Rating | IP54 |
| Mounting Type | Surface Mount |
| Number of Items | 1 |
| Operating Voltage | 5 Volts |
| Operation Mode | automatic |
| Style | Blue Sea Systems 1038-BSS Dual USB Charger 48V DC - Contura Switch Mount |
| Terminal | Screw |
| Unit Count | 1.00 Pack |
| UPC | 632085010386 |
| Warranty | Limited Lifetime |
| Wattage | 192 watts |
| Sizing & Dimensions | |
| Height | 2.25 inches |
| Length | 6.5 inches |
| Package Weight | 3.88 ounces |

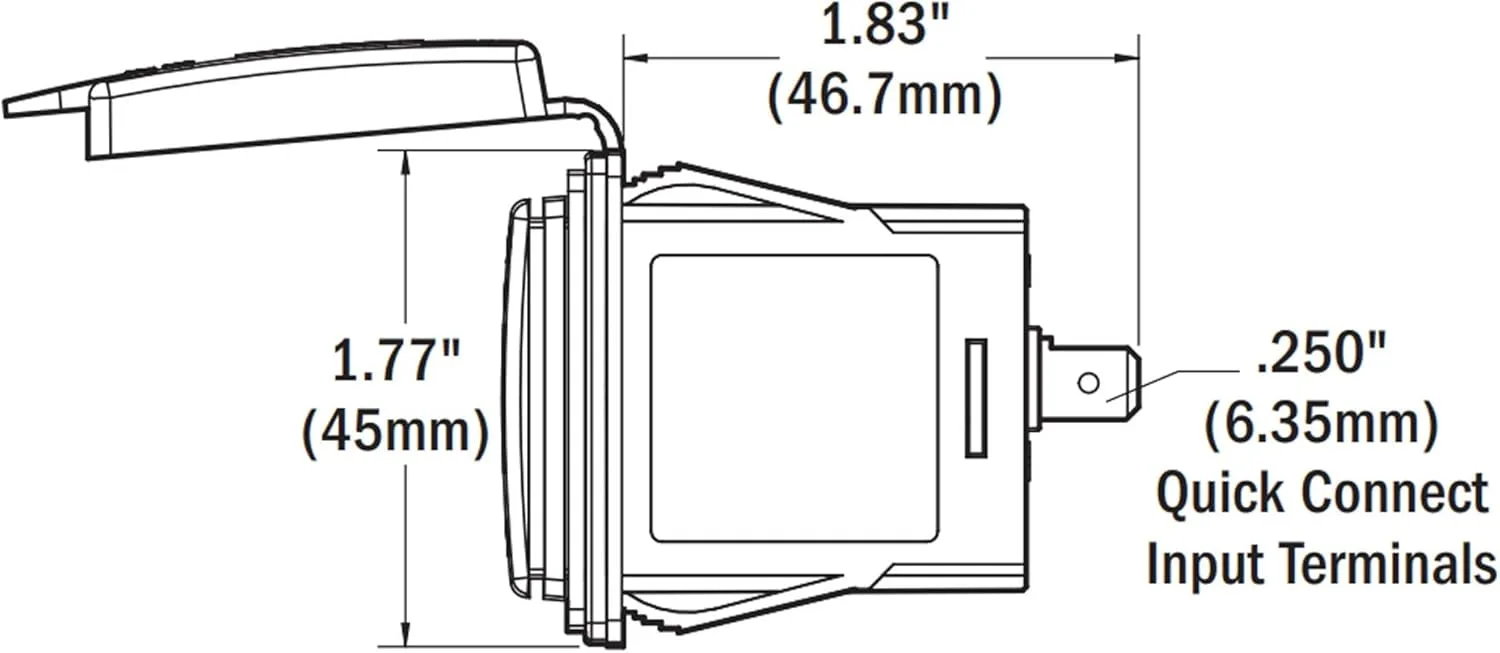

| Product Dimensions | 6.5 x 3 x 2.25 inches |
| Size | Standard |
| Width | 3 inches |
| Technical Specifications | |
| Input Voltage | 48V DC |
| Input Voltage Range | 32-64V DC |
| Max Output Current | 4A DC (total) |
| Reverse Polarity | Yes |
| Short Circuit Protection | Yes |
| Thermal Overload Protection | Yes |
| USB | 2.0, Type A |
| Warranty | Limited Lifetime |
