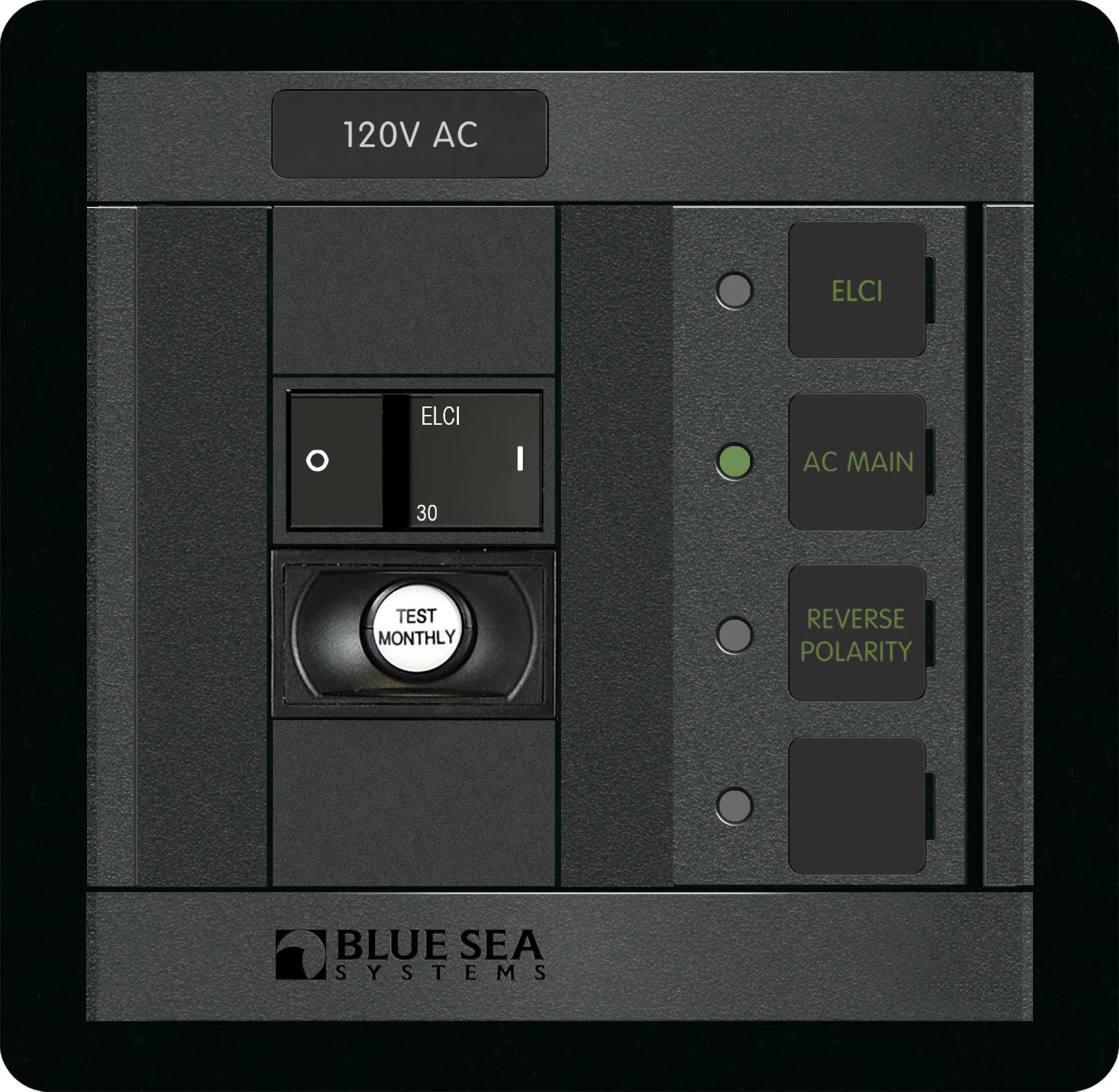

Blue Sea 1502 ELCI Main 30A Double Pole Panel
Customize
ELCI Main 30A Double Pole Panel Features: One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection Red " Reverse Polarity" LED All circuit label positions are backlit "ON" indicating LEDs Specifications: Positions: 1 Nominal Voltage: 120V AC Height: 4.75" (120.65mm) Width: 4.88" (123.95mm) Depth: 3.00" (76.2mm) Weight: 1.10lb (0.5kg) Includes: (1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., AC/DC: AC 360 Panel System One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection.
- 360 Panel System
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperage - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Red " Reverse Polarity" LED
- All circuit label positions are backlit
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC/DC | Ac |
| Included Components | Great Product |
| Model Name | 1502 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 6.6 inches |
| Length | 8.63 inches |
| Product Dimensions | 8.63 x 5.2 x 6.6 inches |
| Size | One Size |
| Weight | 1.1 pounds |
| Width | 5.2 inches |
| Technical Specifications | |
| Leakage Trip Amperage | 30 mA |
| Nominal Voltage | 120V AC |
| Positions | 1 |
