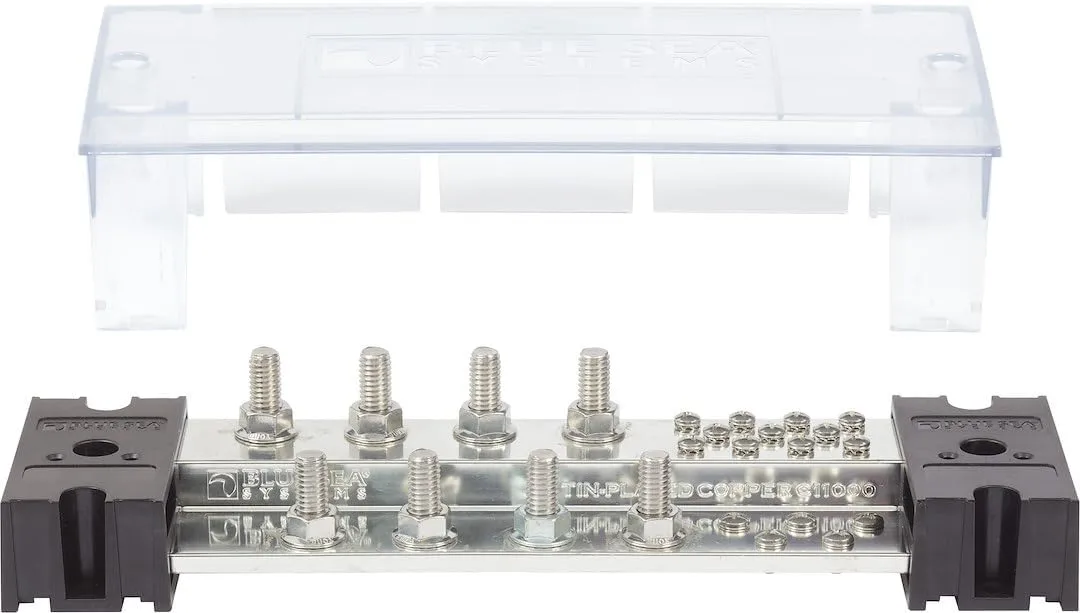

Blue Sea PowerBar 1000 - 8 x 3/8" Studs w/Cover, 1000A

PowerBar 1000 - 8 3/8" Terminal Studs w/Cover. Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with multiple size studs and screws to connect conductors and fuse blocks. Features include a 1,000 Amp rating, tin-plated pure electrical copper (C11000) for maximum conductivity, a stepped bus design for doubled wiring density, busbar and fuse block elevations matching common fuse blocks for multiple attachments, one-piece serrated flange nuts for secure connections, stainless steel 8-32 screws with captive lock washers for smaller gauge wires, busbar cut-to-length capability, bi-directional end caps for ganging, and a snap-on insulating cover that meets ABYC and USCG requirements with label recess. Specifications include eight terminal studs (3/8"), 150V max voltage, screw mounting, and current rating of 1000 Amps. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
• Snap on insulating cover meets ABYC and USCG requirements and includes label recess
• Max voltage: 150V, Continuous Rating: 1000A
• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
• 1000A PowerBar with eight 3/8" terminal studs. 2 mounting holes accept #10 (M5) screws
