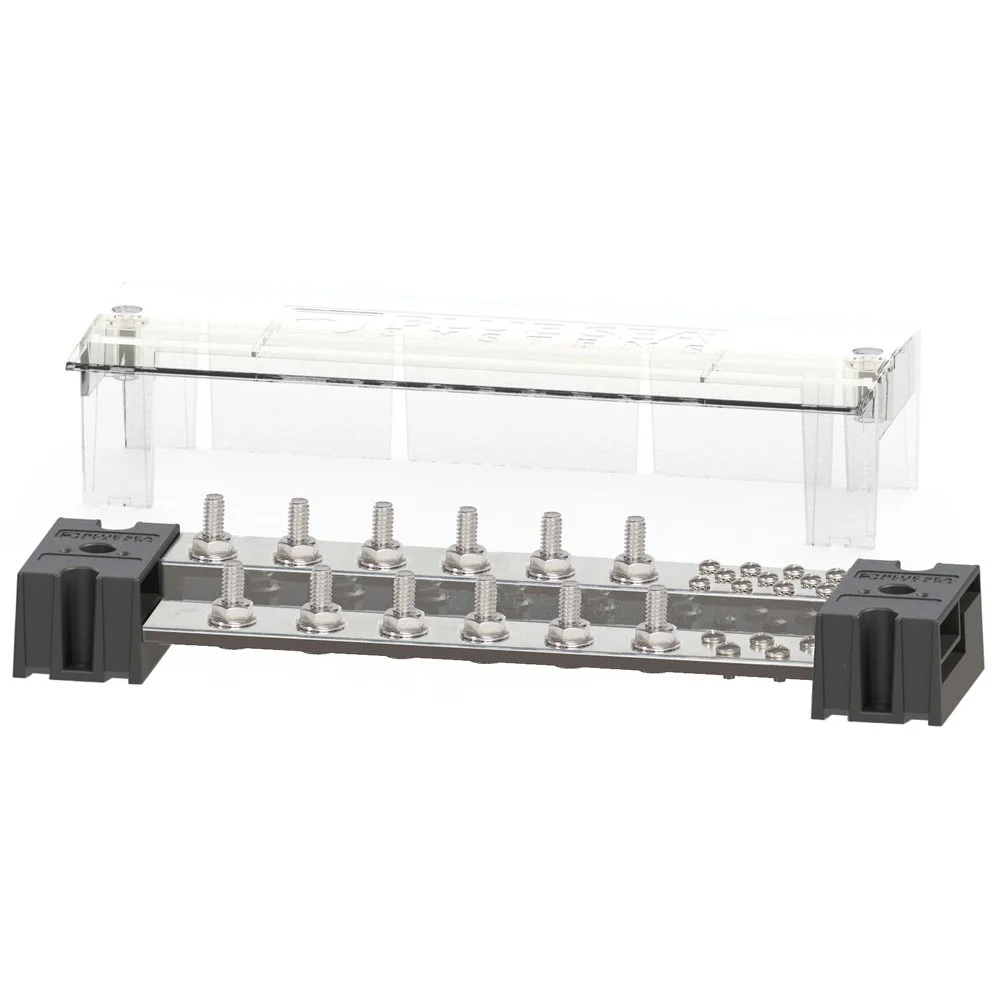

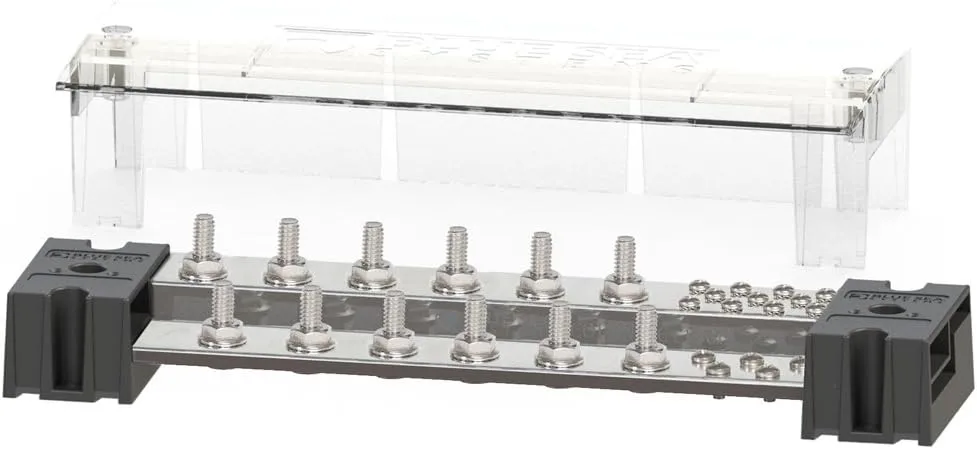

Blue Sea Systems 1993 PowerBar 1000 Stud with Cover, 12 x 5/16"

PowerBar 1000 - 12 5/16" Terminal Studs w/Cover Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks. Features: 1,000 Amp busbar for large complex wiring systems Tin plated pure electrical copper for maximum conductivity Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables One-piece serrated flange nuts ensure correct and secure connections Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires Busbar may be cut to a shorter length to accommodate constricted spaces Bi-directional busbar end caps allow the ganging of additional busbars Snap on insulating cover meets ABYC and USCG requirements and includes label recess Specs: Number of Terminal Studs: 12 Continuous Rating: 1000A Bus Material: Tin-Plated Copper C11000 Mounting Holes: Accepts #10 (M5) Screws Terminal Stud Size: 5/16 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Complex wiring systems require a single point to Consolidate large and small conductors. The power bar 1000 offers a 1,000 amp busbar with various size studs and screws to connect conductors and FUSE blocks. Tin plated pure electrical copper for maximum Conductivity. One-piece serrated flange nuts ensure correct and secure connections. Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires. Busbar may be cut to a shorter length to accommodate constricted spaces. Bi-directional busbar end caps allow the ganging of additional busbars.

• 1000A PowerBar with twelve 5/16" terminal studs. 2 mounting holes accept #10 (M5) screws
• Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
• Snap on insulating cover meets ABYC and USCG requirements and includes label recess
• Max voltage: 150V, Continuous Rating: 1000A
