Blue Sea Systems 2104 PowerBar BusBar with Four 3/8, 600A
BLUE SEA SYSTEMS 2104 PowerBar 600A busbar — tin‑plated copper construction, panel-mount with four 3/8" studs; rated 300VAC / 48VDC for marine and panel electrical distribution.
$176.99
Customize
Available Quantity
55 GSA Item
No GSA Compliant
Yes Product Details

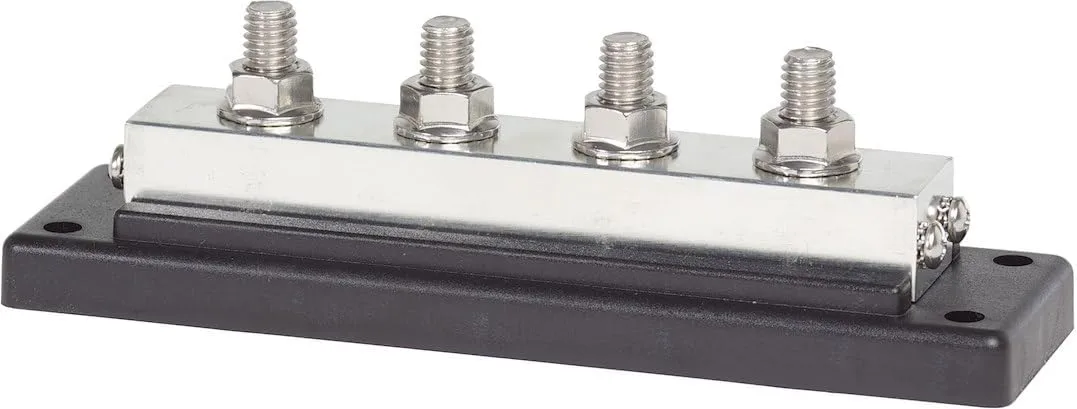

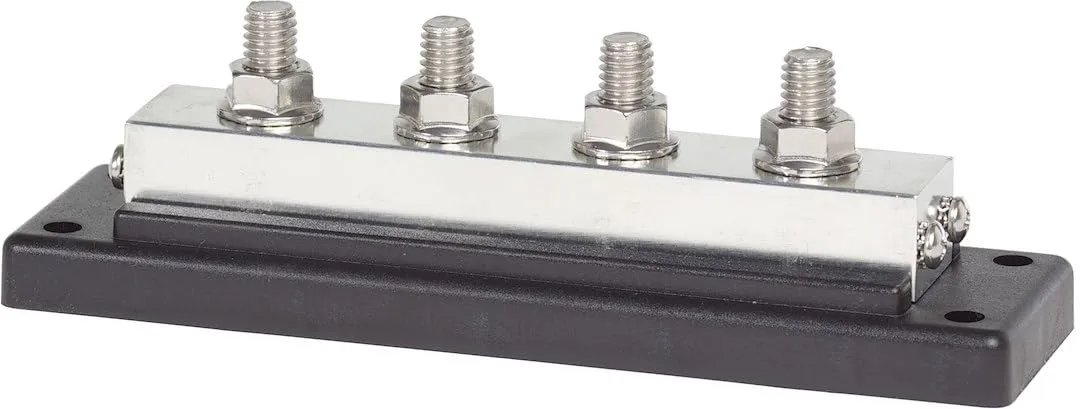

2104 PowerBar 600AMP Cable Connector / BusBar with four 3/8" - 16 studs. Continuous rating: 545A AC / 600A DC. Max voltage: 300 VAC / 48 V DC. Reinforced polycarbonate base with tin-plated pure electrical copper for maximum conductivity. Mounting: panel-mount; four mounting holes accept 1/4" screws. Includes POWERBAR 600 AMP 4X3/8-16. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 600A PowerBar with four 3/8" terminal studs
- Reinforced polycarbonate base with tin plated pure electrical copper for maximum conductivity
- 4 mounting holes accept 1/4" screws
- Max voltage: 300VAC/ 48VDC
- Continuous Rating: 545A AC/ 600A DC
Specifications:
| Materials & Construction | |
| Color | SILVER |
| Material | Tin-Plated Copper CDA 110/UNS11000 |
| Outer Material | Tin-Plated Copper CDA 110/UNS11000 |
| Product Details | |
| Color | SILVER |
| Connector Type | Screw |
| Current Rating | 600 Amps |
| EU Spare Part Availability Duration | 5 Years |
| Included Components | POWERBAR 600 AMP 4X3/8-16 |
| Material | Tin-Plated Copper CDA 110/UNS11000 |
| Model Name | POWERBAR 600 AMP 4X3/8-16 |
| Mounting Type | Panel Mount |
| Number Of Contacts | 4 |
| Number of Items | 1 |
| Number Of Poles | 4 |
| Size | 600A |
| Specification Met | Abyc Recommends No More Than 4 Terminals Per Stud |
| Style | 4 X 3/8" Studs(600a) |
| Upper Temperature Rating | 2.5E+2 Degrees Fahrenheit |
| Voltage | 300 Volts |
| Warranty Description | LIMITED WARRANTY |
| Sizing & Dimensions | |
| Height | 7 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 5.5 x 7 inches |
| Size | 600A |
| Weight | 1.75 pounds |
| Width | 5.5 inches |
| Technical Specifications | |
| Connector Type | Screw |
| Current Rating | 600 Amps |
| Global Trade Identification Number | 00632085021047, 00094800001718 |
| Item Dimensions Lx Wx H | 2 x 5.5 x 7 inches |
| Item Package Dimensions L x W x H | 13.43 x 9.02 x 5.31 inches |
| Mounting Type | Panel Mount |
| Number Of Contacts | 4 |
| Number Of Poles | 4 |
| UPC | 632085021047 |
| Voltage | 300 Volts |
