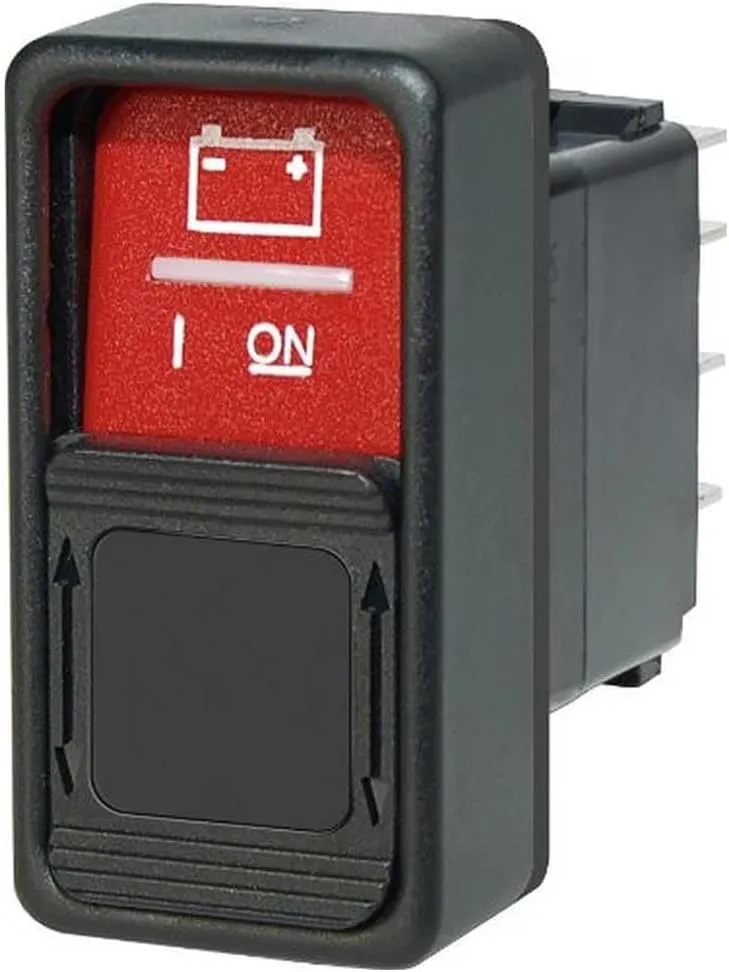

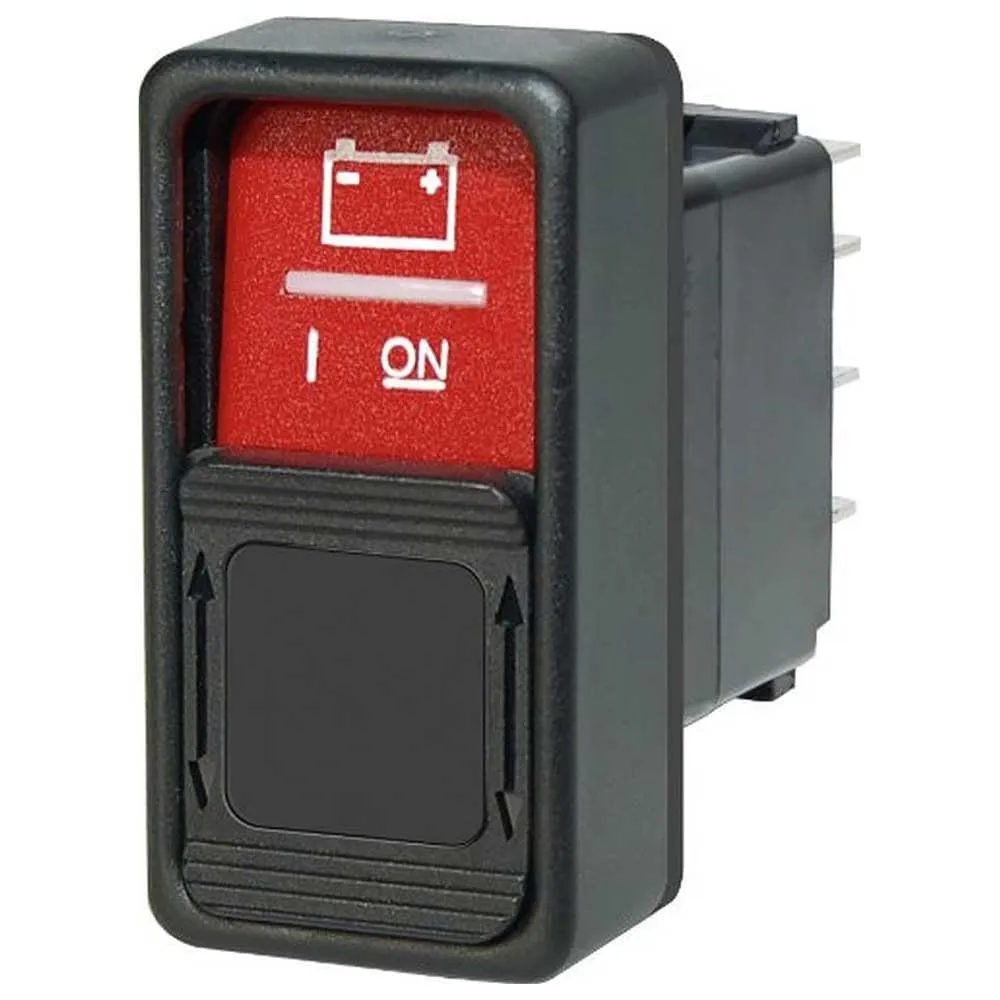

Blue Sea Systems 2155 SPDT Remote Control ON-ON Contura Switch, Beige
Customize
Blue Sea 2155 - Remote Control Contura Switch with Lockout Slide. Control switch for ML Relays PN 7727, 7712, 7714. Vibration, shock, thermoschock, moisture and salt spray resistant. Lockout slide reduces the risk of accidental switching. Certifications: Meets UL 1500 and ISO 8846 external ignition protection requirements. IP67 - Temporary immersion for 30 minutes (protected against immersion up to 1 meter for 30 minutes). Technical Specifications include: Amperage Maximum Operating - 20A @ 12V DC and 15A @ 24V DC; Amperage Operating Current - 18mA; Pole/Throw - SPDT; Lighting - LED rated for a 1/2 life of 100,000 hours; Mounting Hole (H x W) - 1.45" x .83" (36.83 mm x 21.08 mm). Item dimensions approximately 4 x 3 x 2 inches. Package dimensions approximately 4.2 x 2.5 x 2 inches. Proposition 65 warning applies. Sold as an individual.
- Control switch for ML Relays PN 7727,7712,7714
- Vibration, shock, thermoshock, moisture and salt spray resistant
- IP 67- protected against immersion up to 1 meter for 30 minutes
- Meets UL 1500 and ISO 8846 external ignition protection requirements
- Pole Throw: SPDT. Action: ON-ON. () = Momentary
Specifications:
| Materials & Construction | |
| Color | Beige |
| Contact Material | Metal |
| Material | Metal |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Control Method | Remote |
| Included Components | Great Product |
| Model Name | 2155 |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operation Mode | ON-ON |
| Terminal | Spdt |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 2 inches |
| Size | One Size |
| Weight | 0.35 ounces |
| Width | 3 inches |
| Technical Specifications | |
| International Protection Rating | IP67 |
| Operating Voltage | 12 Volts (DC) |
