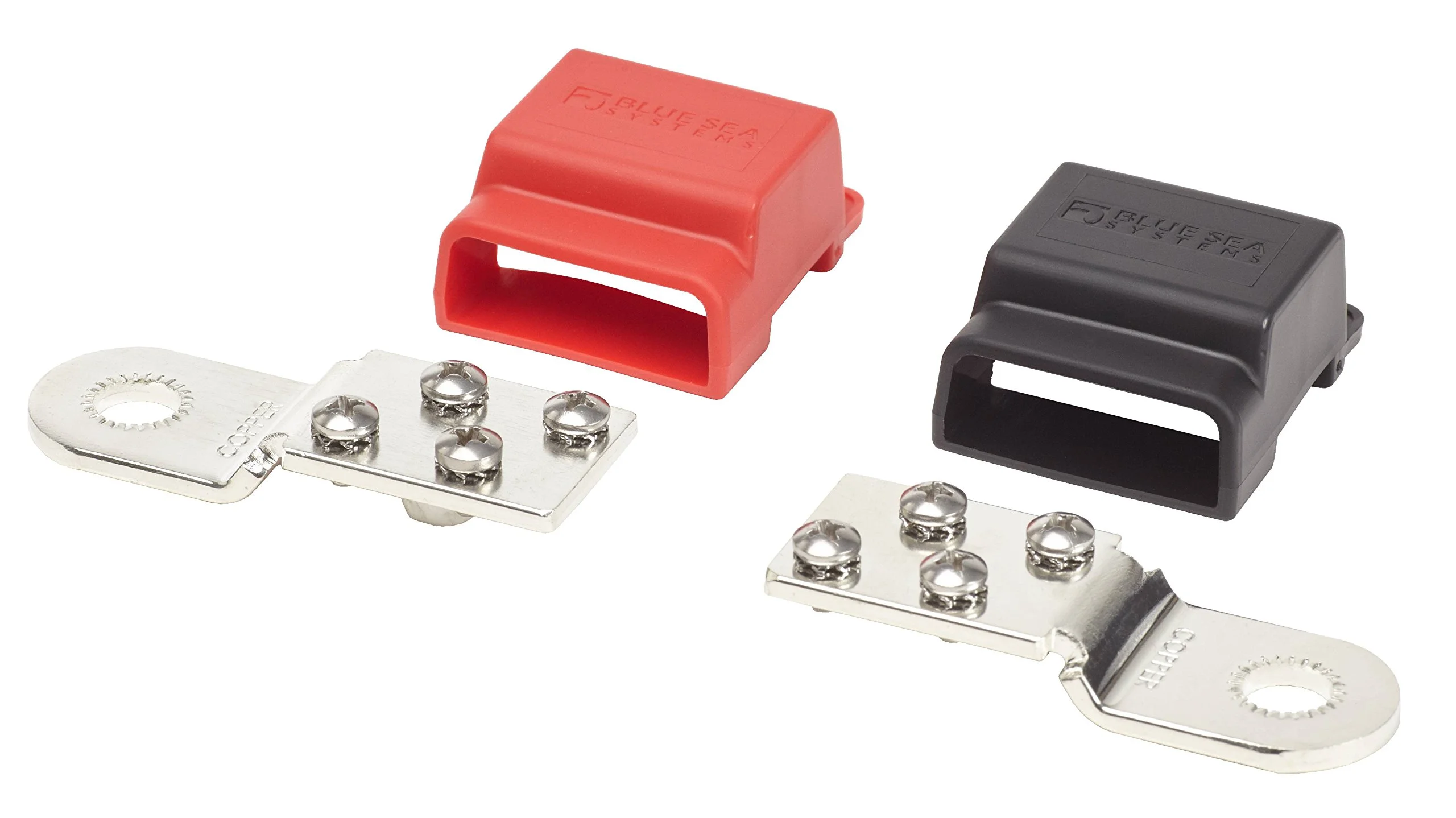

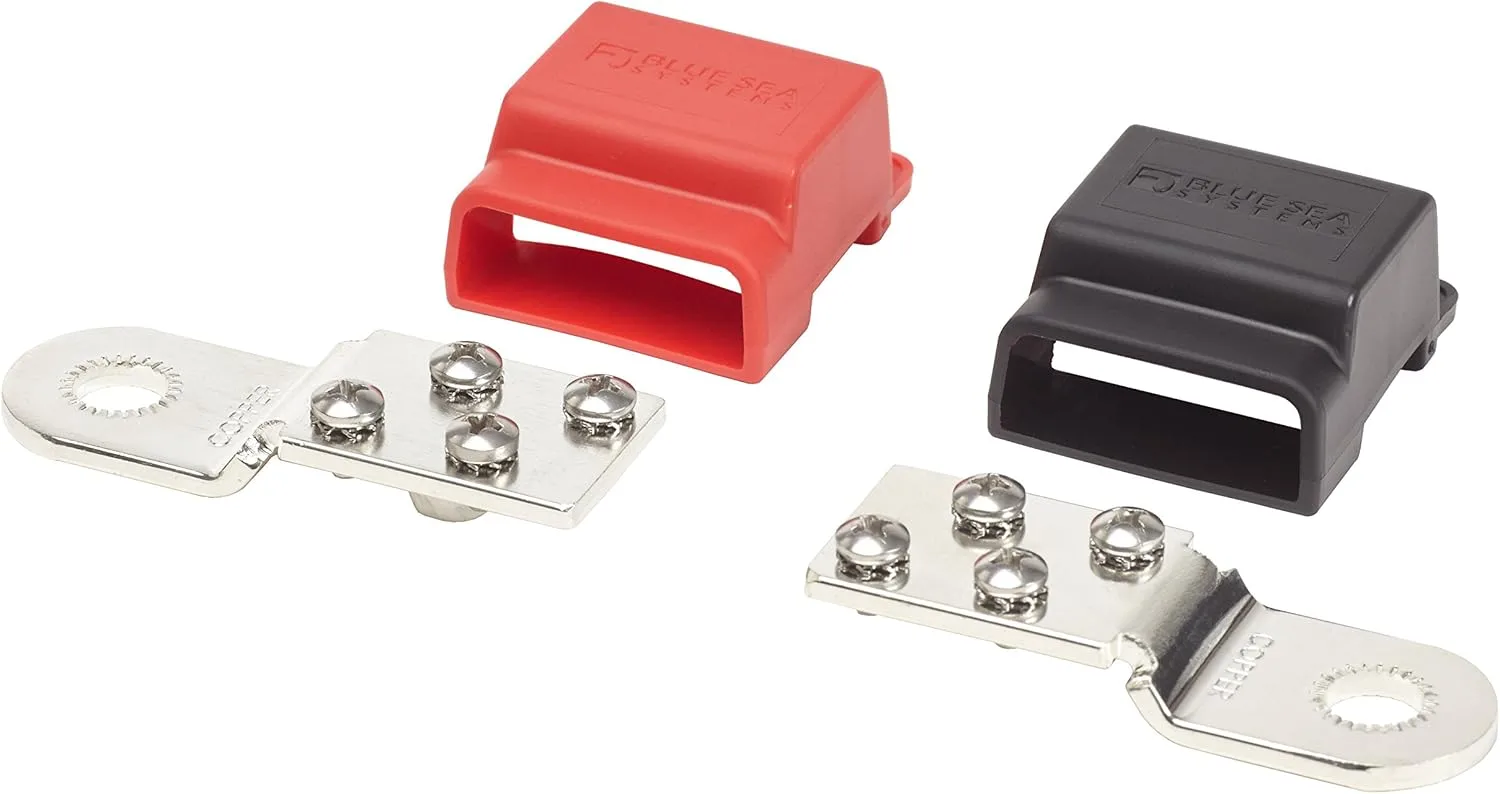

Blue Sea Systems 2340 Battery Terminal Mount Tin-plated Copper BusBars, Positive and Negative with 4 x 10-24" Stainless
Customize
Blue Sea 2340 Battery Terminal Mount BusBars. Easily add positive and negative busbars directly to a threaded-post battery terminal. Tin-plated pure electrical copper (C11000) for maximum conductivity. Includes four 16-14 AWG and four 12-10 AWG nylon insulated ring terminals and insulating covers that meet ABYC/USCG insulation requirements. Maximum Voltage: 32V DC. Continuous Rating: 100A DC. Bus Material: Tin-Plated Copper C11000. Mounting Hole: Clearance for 3/8 [M10] stud. Screw Terminal Type: #8-32 Screws with Captive Star Lock washer. Includes four 10-24" stainless screws. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
- Insulating covers meet ABYC/USCG insulation requirements
- Tin-plated pure electrical copper for maximum conductivity
- Max volts: 32V DC, Continuous rating: 100A DC, Screw terminal type: #8-32 Screws with Captive Star Lock washer
- Easily add positive and negative busbars directly to a threaded-post battery terminal
Specifications:
| Materials & Construction | |
| Color | Red/Black |
| Material | Tin-Plated Copper C11000 |
| Product Details | |
| Model | BUSBARS BAT TERM MOUNT POS&NEG |
| Sizing & Dimensions | |
| Weight | 4 ounces |
| Technical Specifications | |
| Bus Material | Tin-Plated Copper C11000 |
| Continuous Rating | 100A DC |
| Includes | Four 16-14 AWG and four 12-10 AWG nylon insulated ring terminals; insulating covers; four 10-24" stainless screws |

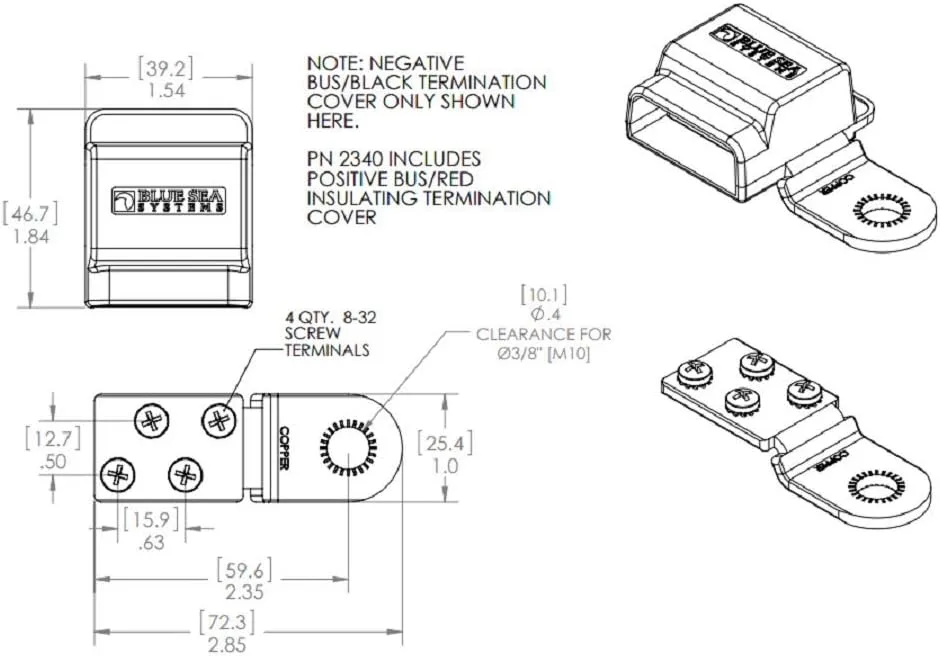

| Mounting Hole | Clearance for 3/8 [M10] stud |
| Screw Terminal Type | #8-32 Screws with Captive Star Lock washer |
| Voltage | 32 Volts |
