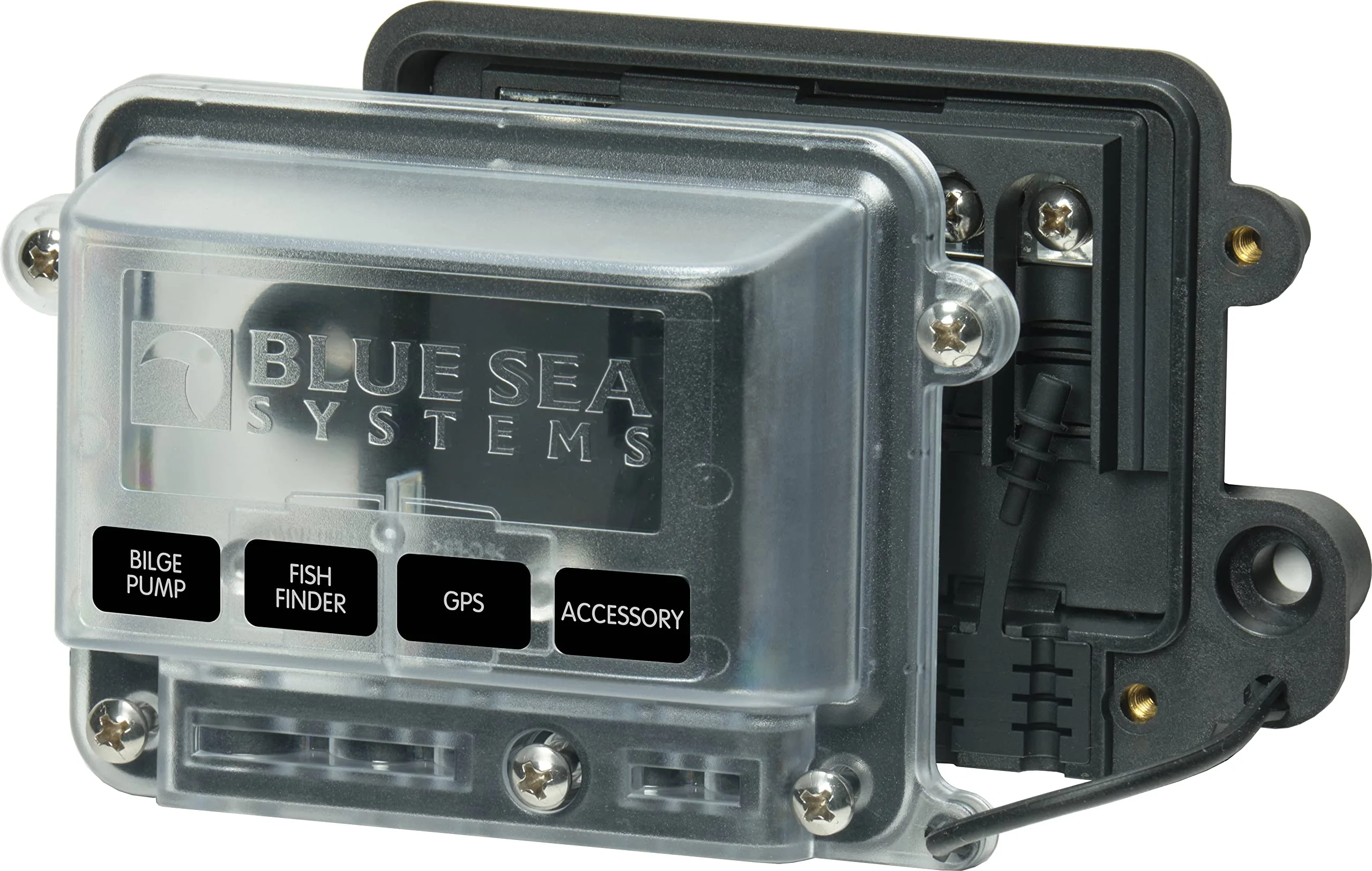

Blue Sea Systems 2356 Water-Resistant 4 Gang BusBar with Cover, Black
Customize
Blue Sea Systems 2356 Water-Resistant 4-Gang Common BusBar with Cover (Black) provides secure water-resistant bussing for harsh environments. The single-side nesting design allows wire entry from one side to maximize space and nests with other water-resistant 100A common busbars and the ST-blade water-resistant fuse block for space-saving wiring. Water-resistant design accepts standard ring or fork/spade terminals and a wide range of wire sizes. Includes three wire plugs to maintain water-resistant rating if fewer than four wires are used, four write-on circuit labels, and tin-plated copper C11000 bussing and fuse clips. Insulating cover meets ABYC/USCG insulation requirements. Key specifications include continuous rating 100A AC/100A DC, maximum voltage 300V AC/48V DC, terminal screws 4 x #8-32, terminal stud 1 x #10-32, wire size input (1) 8 AWG to 4 AWG and load (4) 16 AWG to 10 AWG. Ideal for positive distribution and for collection of negative or AC ground circuits. Specification met: IEC, UL. Limited lifetime warranty. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Not ABYC compliant, not intended for marine applications, use PN 2356100 for marine use
- Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
- Ideal for positive distribution and for the collection of negative or AC ground circuits
- Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used, and 4 write-on circuit labels
- Accepts a wide range of wire sizes
- Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
- Maximum Voltage: 300V AC/ 48V DC, Terminal Stud: 1 x #10-32, Continuous Rating: 100A AC/ 100A DC, Bus Material: Tin-Plated Copper C11000, Mounting Holes: Accepts 1/4" (6mm) Screws, Terminal Screws: 4 x #8-32, Wire Size: (1) 8 AWG to 4 AWG - Input/ (4) 16 AWG to 10 AWG - Load
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Tin-Plated Copper C11000 |
| Outer Material | Tin-Plated Copper C11000 |
| Product Details | |
| Connector Type | Screw |
| Included Components | Busbar; 3 wire plugs; 4 write-on circuit labels |
| Model Name | Blue Sea Systems Boating Electrical Equipment |
| Mounting Type | Boat Mount,Ground Mount |
| Number Of Contacts | 4 |
| Number Of Poles | 4 |
| Style | Water-Resistant 4 Gang Common BusBar |
| Warranty | Limited Lifetime |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 8 inches |
| Package Dimensions | 7.64 x 7.48 x 2.36 inches |
| Product Dimensions | 8 x 8 x 3 inches |
| Size | No Size |
| Weight | 0.45 pounds |
| Width | 8 inches |
| Technical Specifications | |
| Current Rating | 100 Amps |
| Gauge | 8.0 |

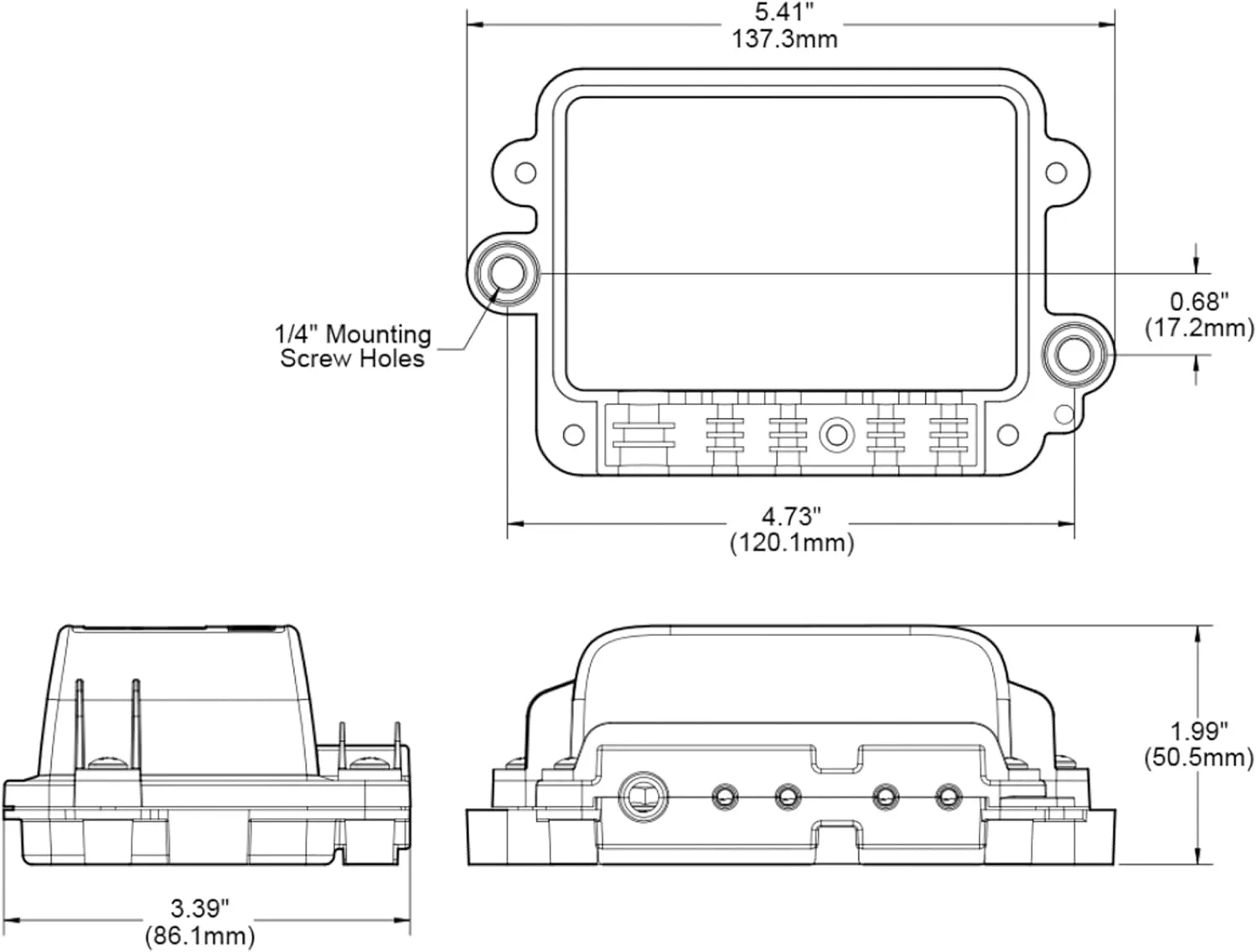

| Mounting Holes | Accepts 1/4" (6mm) Screws |
| Specification Met | IEC, UL |
| Terminal Screw | 4 x #8-32 |
| Terminal Stud | 1 x #10-32 |
| Voltage | 300 Volts |
| Wire Size | (1) 8 AWG to 4 AWG - Input / (4) 16 AWG to 10 AWG - Load |
