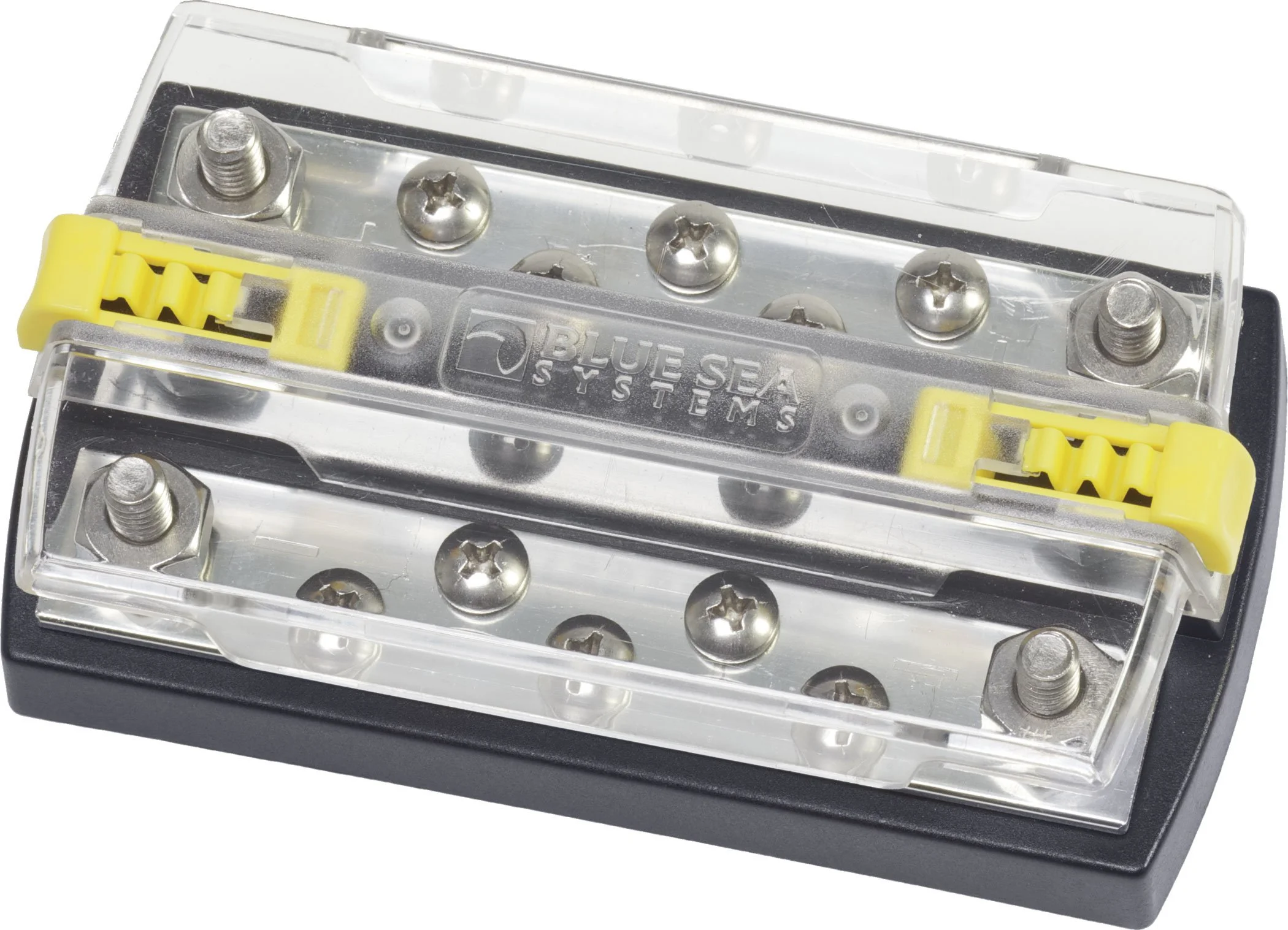

2722 DualBus Plus 1/4" Stud, 5 x 10-32 Screw Terminal Features: Combines negative and positive buses on one block Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation require WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Combines negative and positive buses on one block Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements Warning: Product may contain materials cautioned by California Proposition 65
Specifications:
| Product Details |
| Connector Type | Screw |
| Item model number | 2722 |
| Mounting Type | DIN Rail Mount |
| Number Of Contacts | 5 |
| Number Of Poles | 5 |
| Specification Met | Abyc, Coast Guard |
| Sizing & Dimensions |
| Height | 1.82 inches |
| Length | 7.88 inches |
| Product Dimensions | 7.88 x 3.88 x 1.82 inches; 8.96 ounces |
| Weight | 8.96 ounces |
| Width | 3.88 inches |
| Technical Specifications |
| Voltage | 48 Volts, 300 Volts |
