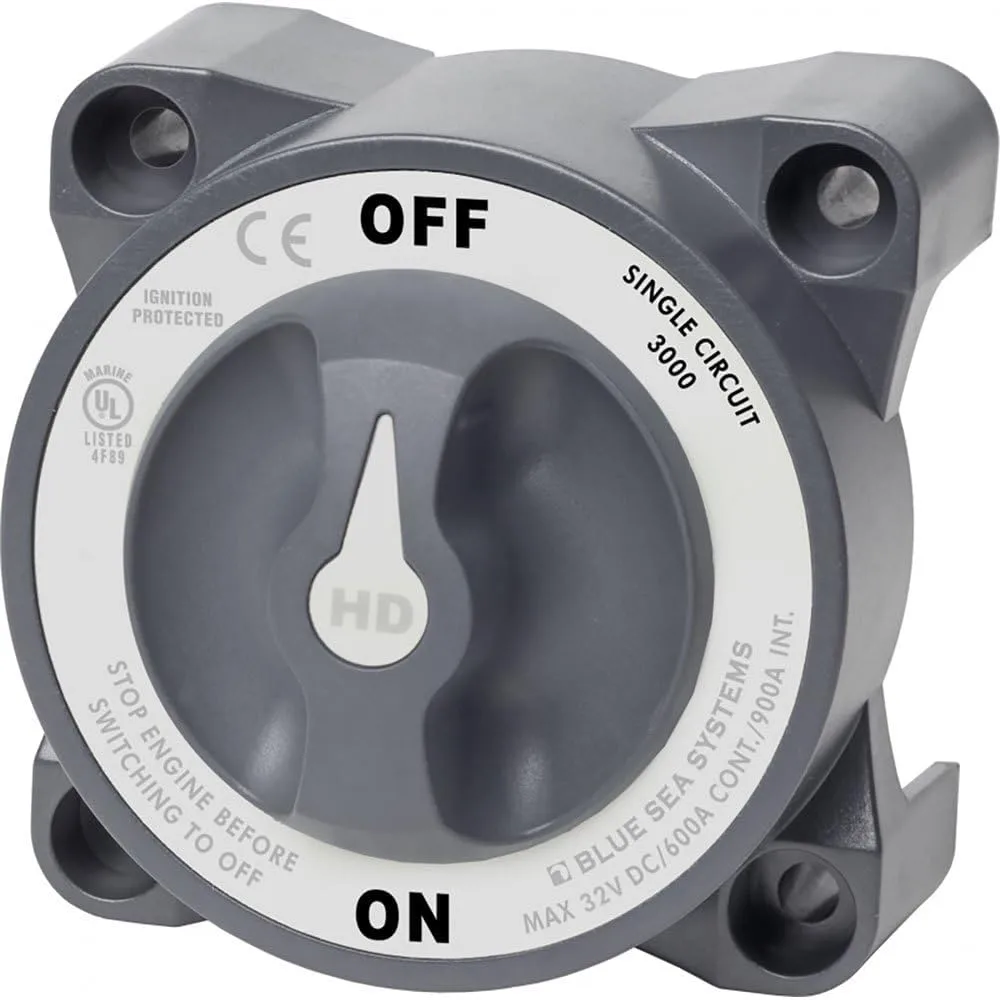

Blue Sea Systems 3000 HD-Series Heavy Duty On-Off Battery Switch Grey
Customize
HD-Series Battery Switch Single Circuit ON/OFF. Heavy-duty panel-mount battery switch by Blue Sea Systems (Model 3000) with ON/OFF rotary actuator. Features: 600 Amp continuous current rating (manufacturer rating listed), accepts two 4/0 AWG battery cables per terminal, 1/2" (M12) tin-plated copper studs for maximum conductivity and corrosion resistance, ignition protected (safe for gasoline-powered boats), IP66 international protection rating, meets ABYC (American Boat and Yacht Council) requirements, tactile knob textures indicate position by feel, case design allows surface or rear panel mounting, fits Perko and Guest low-amperage battery switch hole patterns. Mounting Type: Panel Mount. Circuit Type: 2-way. Operation Mode: ON-OFF. Terminal style: physical clamp with copper contacts. Includes limited warranty. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Continuous Rating: 600A, Max Voltage: 32VDC
- Terminal Stud Size: 1/2"
- Accepts two 4/0 AWG (95mm²) battery cables.
- IP66 waterproof, ISO 8846 and meets ABYC requirements
- Switches a single battery to a single load group Ignition protected - safe for installation aboard gasoline powered boats
Specifications:
| Materials & Construction | |
| Color | Grey |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Actuator Type | Rotary |
| Circuit Type | 2-way |
| Continuous Amperage | 900a |
| Model Name | BATTERY SWITCH HD ON/OFF |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operation Mode | ON-OFF |
| Style | On-off |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 7 x 3 inches |
| Size | One Size |
| Weight | 7.2 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Connector Type | Clamp |
| Contact Material | Copper |
| Contact Type | Normally Closed |
| Control Method | Touch |
| Current Rating | 600 Amps |
| International Protection Rating | IP66 |
| Number of Items | 1 |
| Operating Voltage | 32 Volts (DC) |
| Terminal | Physical |
| Unit Count | 1.0 Count |
| Upper Temperature Rating | 80 Degrees Celsius |
| Warranty | LIMITED WARRANTY |
| Wattage | 19200 watts |
