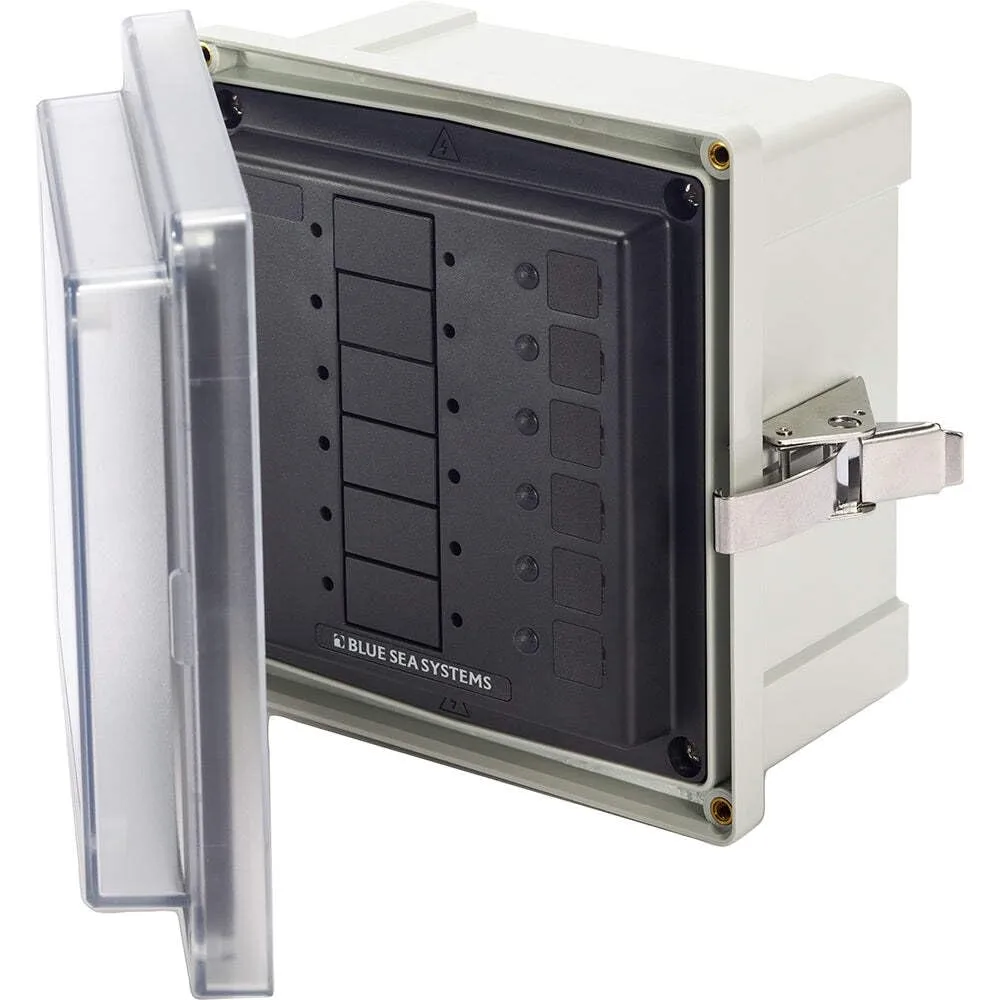

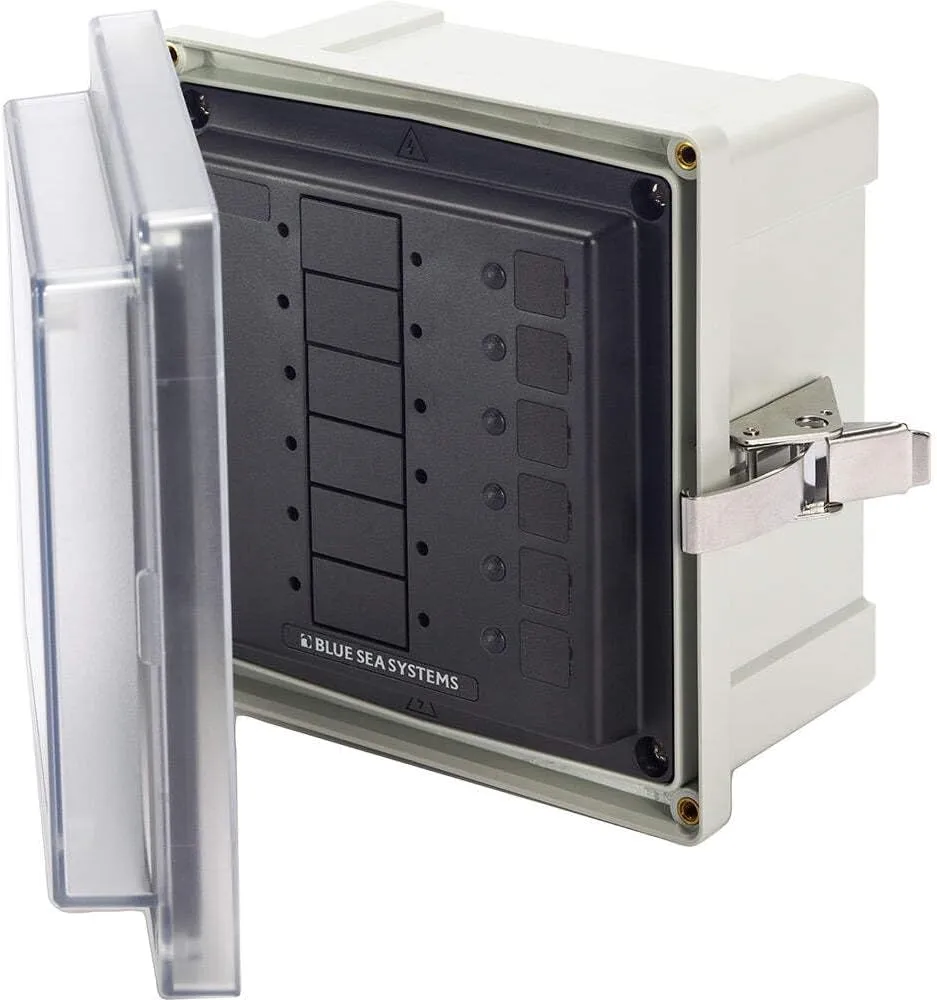

Blue Sea Systems 3113 6 Circuit Blank Surface Mount System Enclosure, Beige
Customize
3113 - SMS Panel Enclosure with 6 Blank Circuits. The 3113 panel enclosure is built for main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet. Features: Blank apertures for custom breaker loading; Glass filled polycarbonate mounting box; Clear cover allows easy view of circuit breaker status; Overlapping cover for strength and increased gasket protection; Oversized, formed in place seamless PUR gasket; Easily removable stainless steel hinge pin for unobstructed installation; Stainless steel latch secures cover without penetrating the enclosure; Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers. Technical Specifications: Dimensions (Overall) (H x W x D) - 7.6" x 7.4" x 4.7" (192 x 188 x 120mm). Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm). LEDs Installed - 1 x Red (Reverse Polarity - 230V AC) and 3 x Green ON (230V AC). In the Box: 3123 Enclosure, Mounting hardware, Instruction manual. Sold as an Individual. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Accommodate Carling Technologies and C- Series Flat Rocker and ELCI Main circuit breakers
- Overlapping cover for strength and increased gasket protection
- Clear cover allows easy view of circuit breaker status
- Glass filled polycarbonate mounting box
- Blank apertures for custom breaker loading
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Item Package Dimensions L x W x H | 12.3 x 12.3 x 8.7 inches |
| Material | Plastic |
| Model Name | 3113 |
| Number Of Circuits | 6 |
| Phase Type | Three Phase |
| Size | Standard |
| Style | Compact |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 10 x 6 inches |
| Weight | 2.8 pounds |
| Width | 10 inches |
| Technical Specifications | |
| Global Trade Identification Number | 00632085031138 |
| UPC | 632085031138 |
