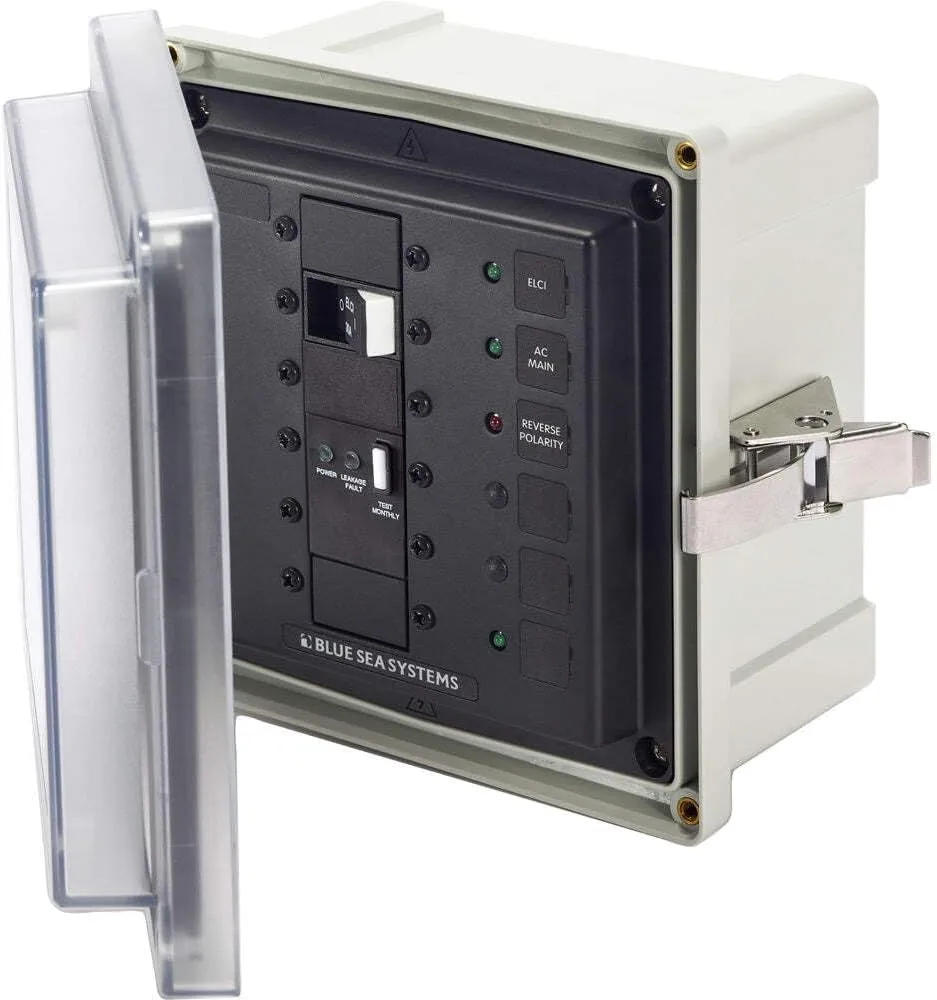

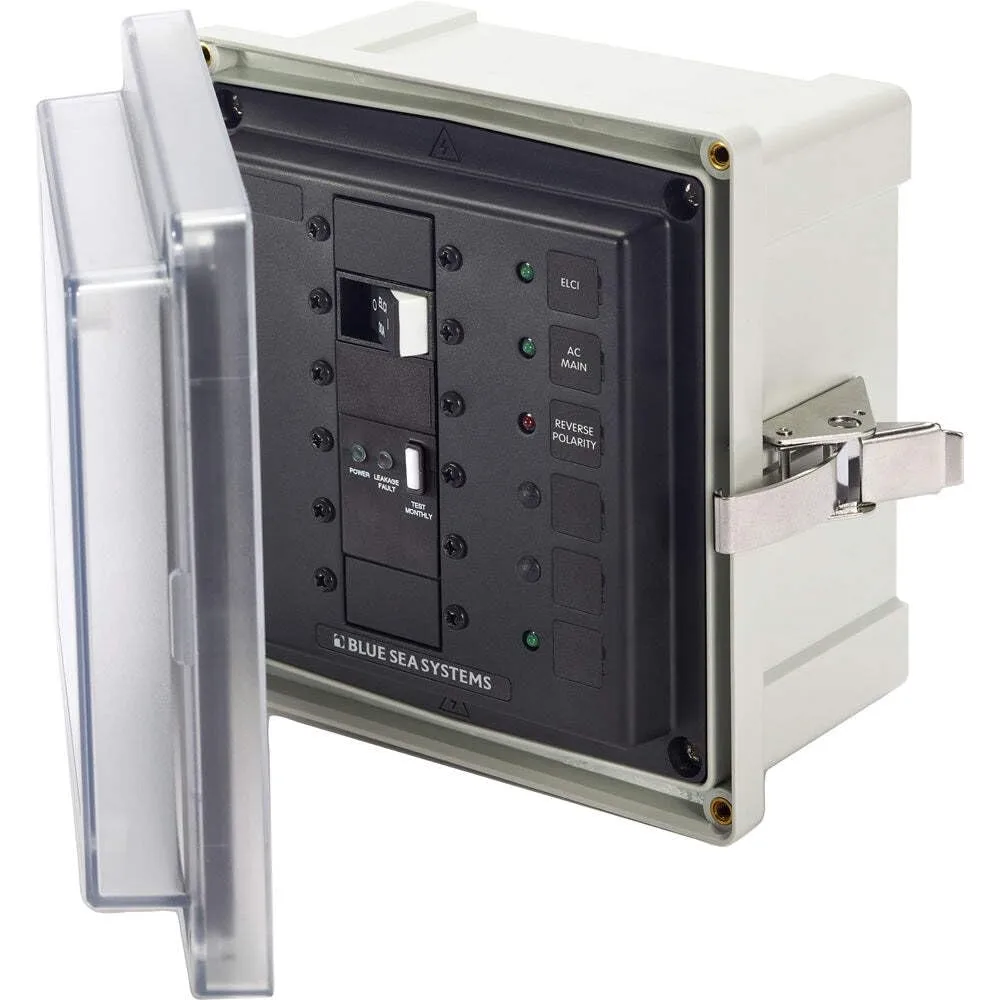

Blue Sea 3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position
Customize
3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position. The 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet. Features include: one 120/240V AC / 50A ELCI Main and one blank position; blank apertures for custom breaker loading; glass-filled polycarbonate mounting box; clear cover for easy view of circuit breaker status; overlapping cover for strength and increased gasket protection; oversized, formed in place seamless PUR gasket; easily removable stainless steel hinge pin for unobstructed installation; stainless steel latch secures cover without penetrating the enclosure; blank circuit positions accommodate Carling Technologies A- and C-Series Flat Rocker and ELCI Main circuit breakers; stainless steel mounting hardware included; waterproof glands; LED lights for back lighting and ON indication. Technical specifications include minimum operating temperature -35° C, maximum operating temperature 66° C, cover screws and hardware 10-32 stainless steel, enclosure size 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm), exterior overall dimensions 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm), mounting hardware 1/4" diameter, #12 (6 mm), weight 7.00 lb (3.18 kg). In the box: 3119 enclosure, glands x 5, labels, mounting hardware, instruction manual. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm.
- Includes one 120/240V AC 50A ELCI Main and one blank position
- Blank apertures for custom breaker loading
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Accommodate Carling Technologies and C- Series Flat Rocker and ELCI Main circuit breakers
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 50 Amps |
| Color | Beige |
| Global Trade Identification Number | 00632085031190 |
| Included Components | Great Product |
| Material | Plastic |
| Model Name | 3119 |
| Number Of Circuits | 2 |
| Phase Type | Single Phase |
| Size | Standard |
| UPC | 632085031190 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 7 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 9 x 7 inches |
| Size | 9 x 9 x 7 inches |
| Weight | 4 pounds |
| Width | 9 inches |
| Technical Specifications | |
| AC Adapter Current | 50 Amps |
| Item Dimensions Lx Wx H | 9 x 9 x 7 inches |
| Item Package Dimensions L x W x H | 12.5 x 12.4 x 8.8 inches |
| Number Of Circuits | 2 |
| Phase Type | Single Phase |
