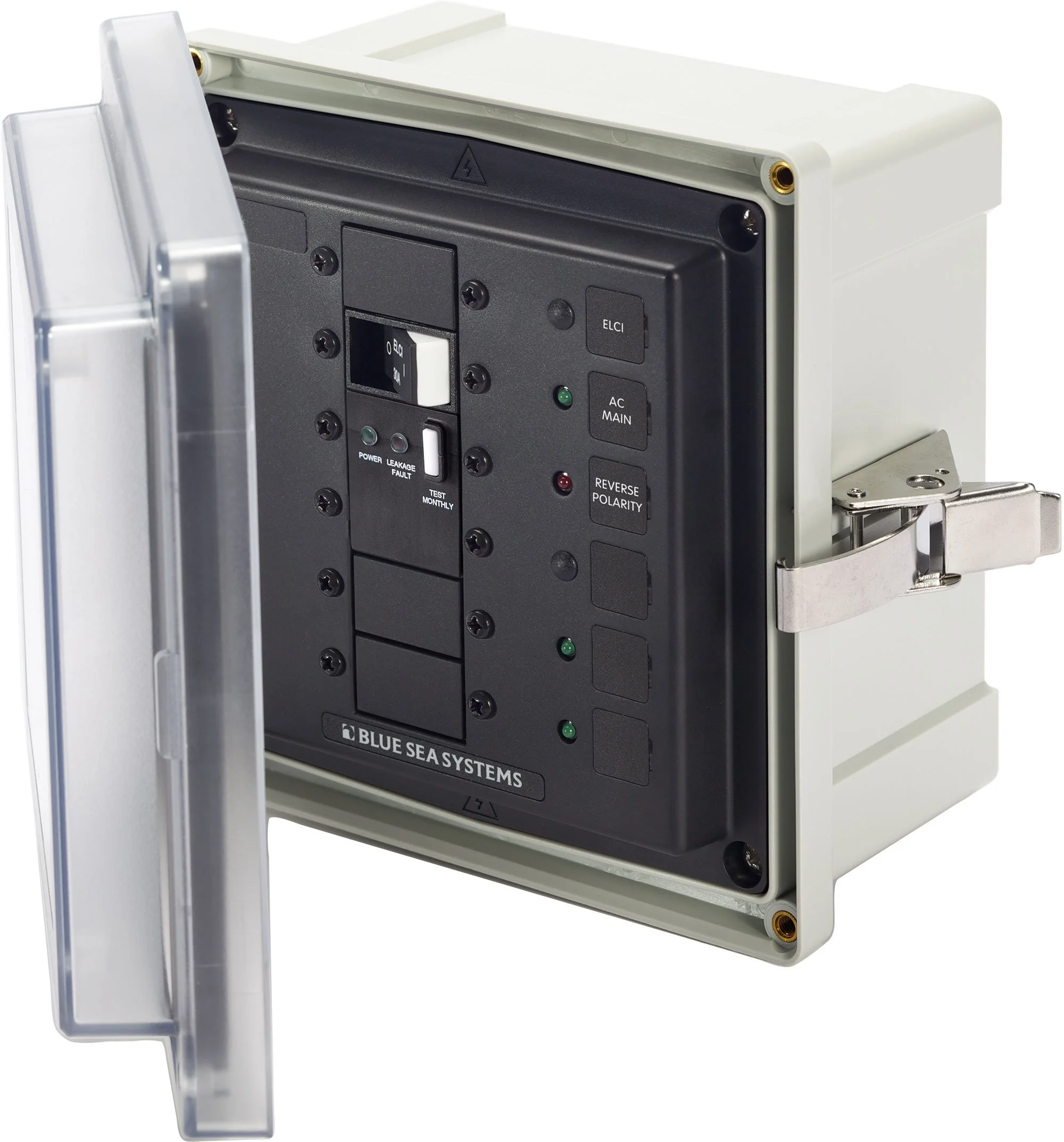

Blue Sea 3120 - SMS Panel Enclosure w/ELCI Main (50A) and 2 Blanks - 240V

3120 - SMS Panel Enclosure with ELCI Main (50A) and 2 Blanks - 240V The 3120 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet. Features: Blank apertures for custom breaker loading Glass filled polycarbonate base Clear cover allows easy view of circuit breaker status Overlapping cover for strength and increased gasket protection Oversized, formed in place seamless PUR gasket Easily removable stainless steel hinge pin for unobstructed installation Stainless steel latch secures cover without penetrating the enclosure Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers Includes waterproof glands LEDs for backlighting and ON indication Technical Specifications: Circuit Breaker Type - 1 x ELCI (50A) Main 240V and 2 x Blank Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm) LEDs Installed - 2 x Green ON (240V AC) In the Box: 3120 Enclosure Glands x 5 Labels Mounting hardware Instruction manual *Sold as an Individual WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

• Accommodate Carling Technologies and C- Series Flat Rocker and ELCI Main circuit breakers
• Clear cover allows easy view of circuit breaker status
• Glass filled polycarbonate mounting box
• Blank apertures for custom breaker loading
• Includes one 240V AC 50A ELCI Main and two blank positions
