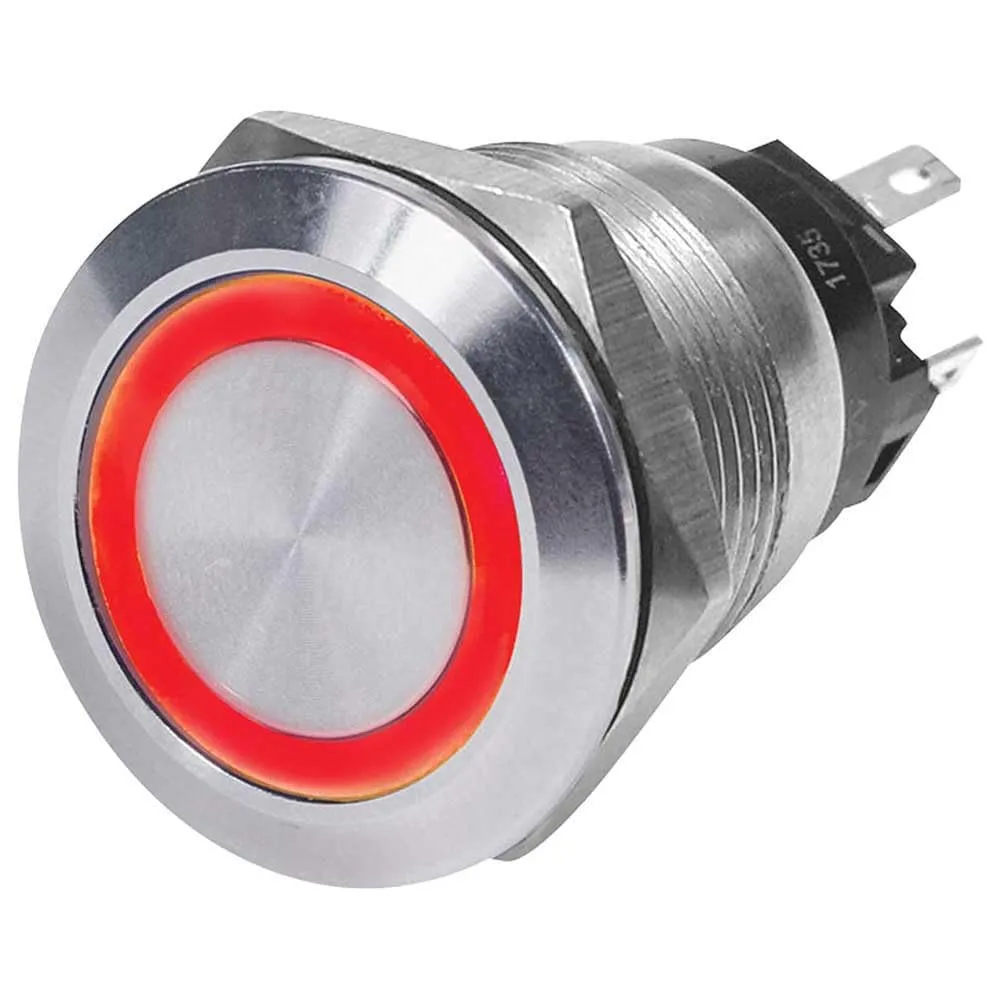

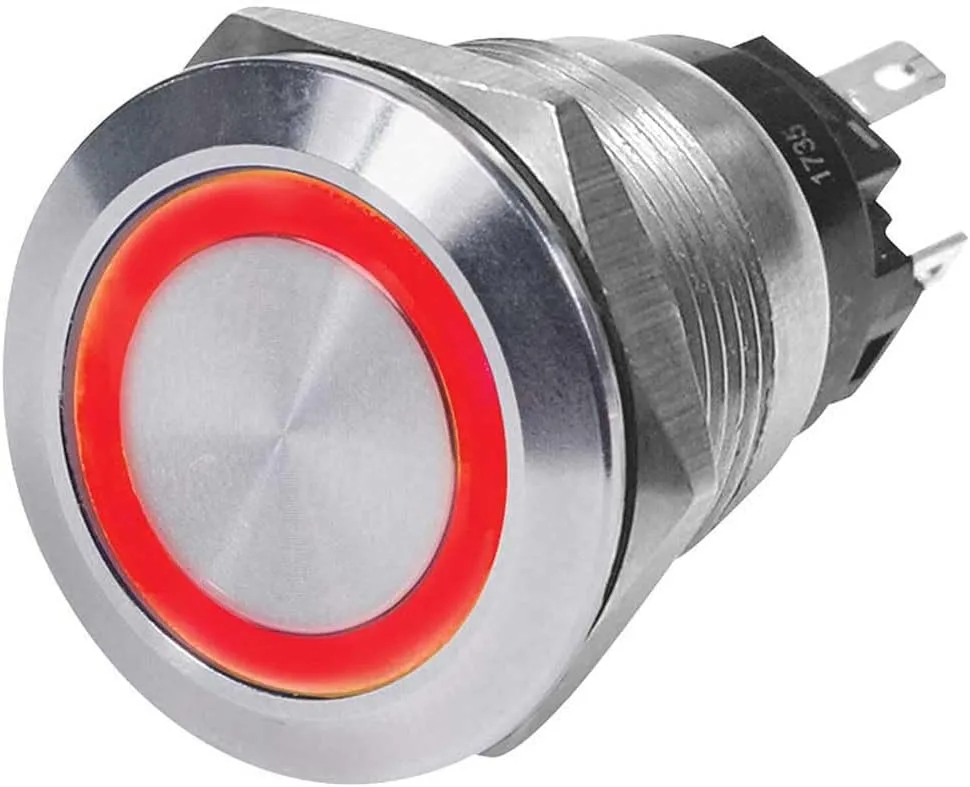

Blue Sea 4162 SS Push Button Switch - Off-On - Red - 10A
Customize
4162 SS Push Button Switch - Off-On - Red - 10A 10A continuous Single Pole Double Throw or Single Pole Single Throw Can be wired for normally open or normally closed Installs with .110inch quick connects (included in retail package) Specifications Action: OFF-ON Amperage: 10A @ 12V DC Nominal Voltage: 12V DC Maximum LED Operating Current: 20mA Minimum Operating Temperature: -10° C Maximum Operating Temperature: 70° C Minimum Storage Temperature: -55° C Maximum Storage Temperature: 85° C Illumination: Independent – Separate contacts for LED power Mounting Hole: 19mm Switching Cycles: 18,000 Termination: 5 – 0.110inch Quick Connect terminals WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .
- 10A Continuous
- Can be wired for normally open or normally closed
- . 110 inch quick connects for installation are included
- LED Ring Switch
- Red LED Light
- Fit type: Universal Fit
Specifications:
| Materials & Construction | |
| Color | Red |
| Contact Material | Stainless Steel Or Brass |
| Product Details | |
| Action | On/Off |
| Actuator Type | push button |
| Circuit Type | 2-way, 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | quick connects |
| Contact Type | normally open |
| Control Method | Touch |
| Controller Type | Ring, Push Button |
| Mounting Hole | 19mm |
| Number of Positions | 1 |
| Operation Mode | ON OFF |
| Terminal | button |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 2 inches |
| Weight | 0.01 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Connector Type | quick connects |
| Current Rating | 10 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 12 Volts (DC) |
| Terminal | button |
| Voltage | 12 Volts |
| Wattage | 1.2E+2 |
