Blue Sea Systems 4180 Backlit Push Button Switch 15A OFF-ON
Customize
4180 Backlit Push Button Switch OFF/ON - 15A. Features: Backlit button is blue when OFF and red when ON. Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump. Additional 50 ICON label kit sold separately. Specifications: Action: OFF-ON. Amperage: 15A @ 12V DC. Nominal Voltage: 12V DC. Maximum Voltage: 15V DC. Maximum LED Operating Current: 20mA. Switching Cycles: 10,000. Temperature Range: -20°C to 55°C. Termination: 3" - Bare Wire Pigtail. Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- 15A push button backlit switch

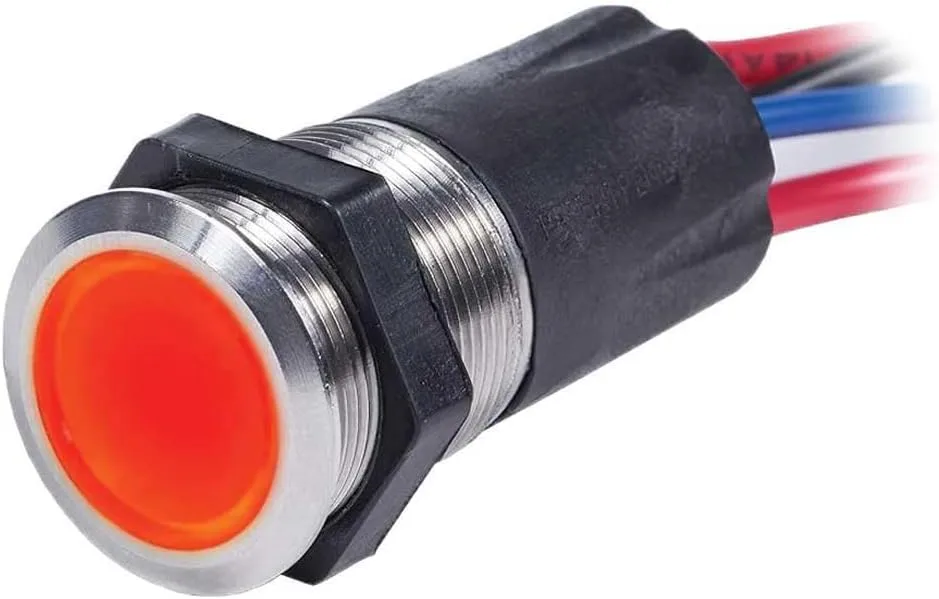

- Color when On: Red

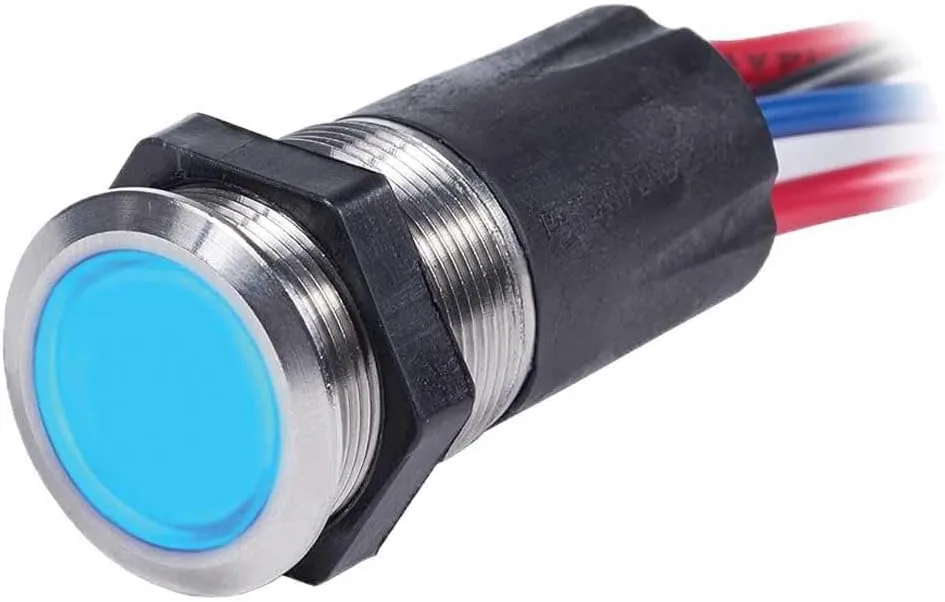

- Color when Off: Blue

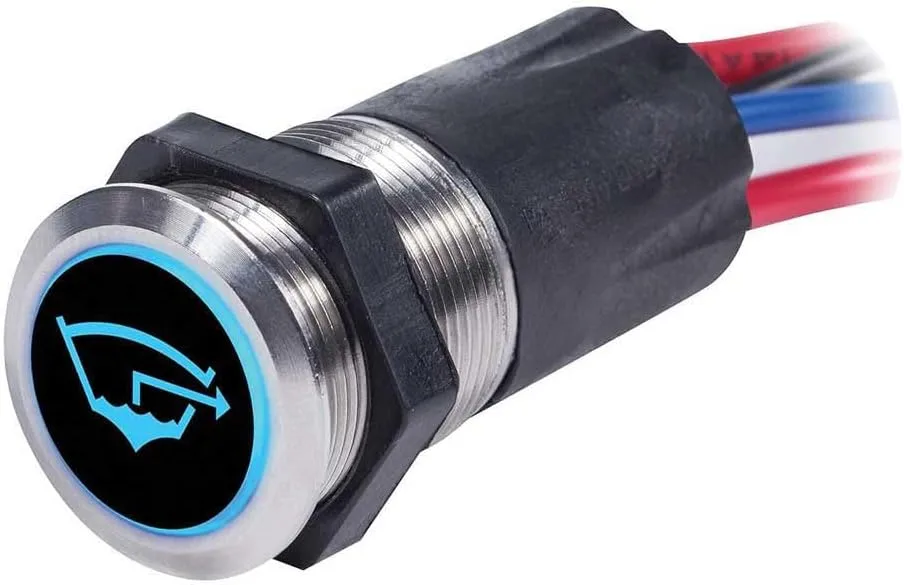

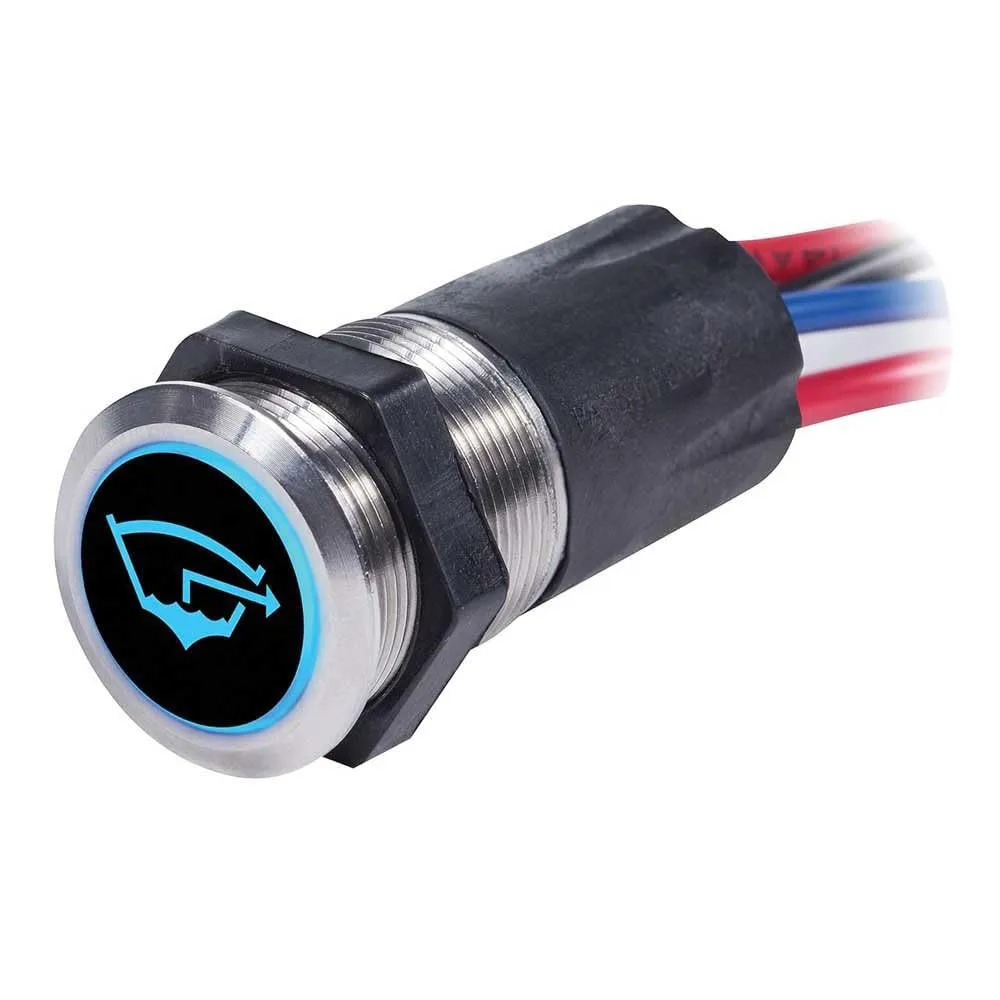

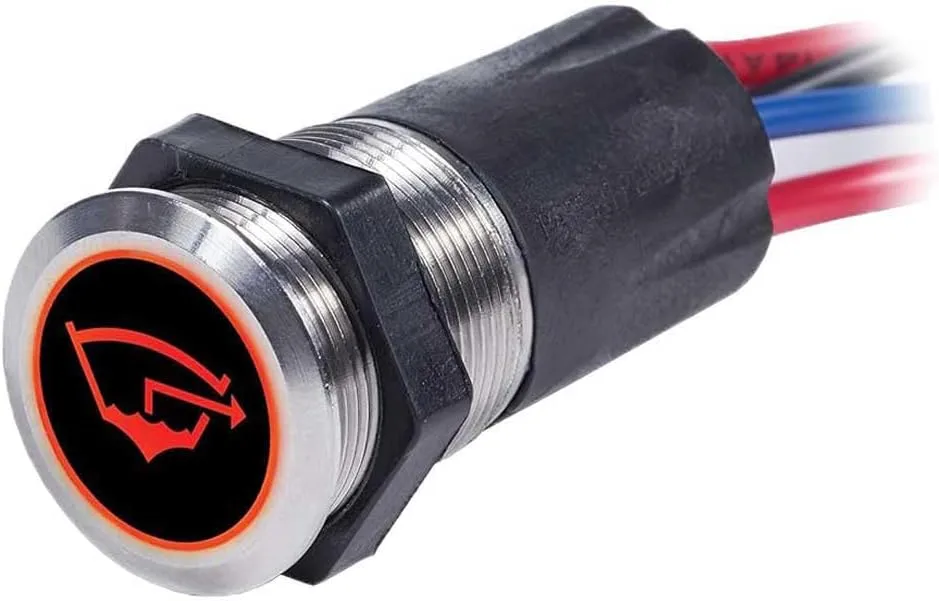

- Includes 5 ICON labels
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Actuator Type | push button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Wire Leads |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Push Button |
| Country of Origin | China |
| Global Trade Identification Number | 00632085041809 |
| Item model number | 4180-BSS |
| Manufacturer Part No | 4180-BSS |
| Mirror Lighting Type | led |
| Number of Items | 1 |
| Number of Positions | 5 |
| Operation Mode | ON-OFF |
| Terminal | button |
| Unit Count | 1.0 Count |
| Wattage | 1.8E+2 |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 3 x 2 inches |
| Weight | 1.76 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Current Rating | 15 Amps |
| International Protection Rating | ip67 |
| Operating Voltage | 12 Volts |
| Upper Temperature Rating | 55 Degrees Celsius |
