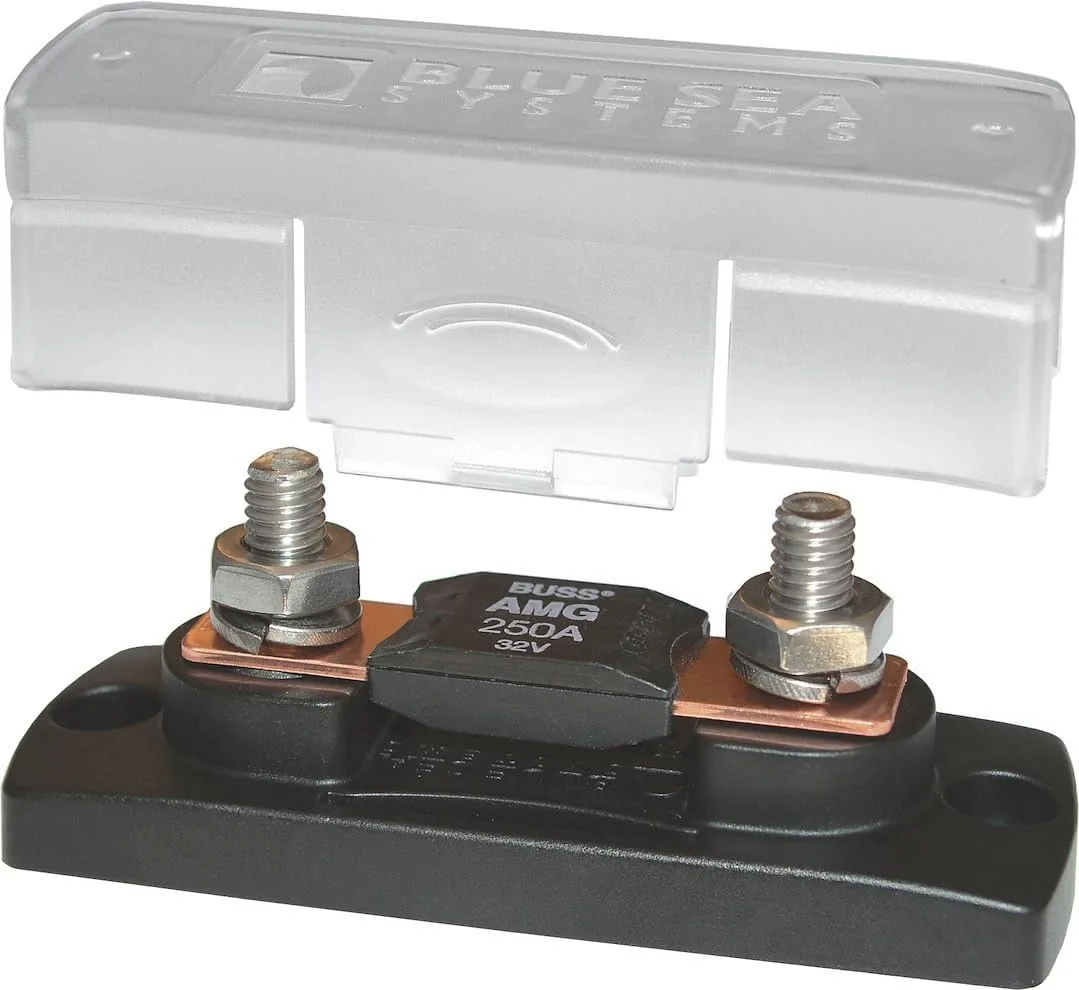

Blue Sea Systems 5001 MEGA/AMG Fuse Block with Cover, 100-300 Amp, 32V DC , 4.07" x 1.5"
BLUE SEA SYSTEMS 5001 MEGA fuse block with insulating cover for 100–300A, 32V DC systems; accepts 5/16" (M8) ring terminals, stainless steel studs, DIN-rail mount; compact 4.07" x 1.5".
$41.99
Customize
Available Quantity
10 GSA Item
No GSA Compliant
No Product Details
5001 Fuse Block MEGA 100-300A with Cover. Features: The most economical system for 100-300 Ampere fusing. Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow wire access in any direction. For use on systems up to 32V DC. 5/16" stud terminals accept 5/16" (M8) Ring Terminals, 14AWG to 2/0 AWG Wire. Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact. UL 94-V0 base resists high heat. Insert molded studs ensure secure fuse mounting. Accepts 5/16" (M8) ring terminals. Insulating cover satisfies ABYC/USCG insulation requirements. Insulating cover breakouts allow wire access in three directions.
- Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
- Insert molded studs ensure secure fuse mounting
- Insulating cover breakouts allow wire access in three directions
- Insulating cover satisfies ABYC/USCG insulation requirements
- Accepts 5/16" (M8) ring terminals
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Screw |
| Fuse Type | Mega/Amg |
| Included Components | Blue Sea 5001 Fuse Block MEGA 100-300A w/Cover |
| Item Package Quantity | 1 |
| Mounting Type | DIN Rail Mount |
| National Stock Number | 5920-01-562-0713 |
| Number Of Contacts | 3 |
| Number Of Pieces | 1 |
| Number Of Poles | 3 |
| Type | Fuse Blocks |
| Warranty Description | Warranty |

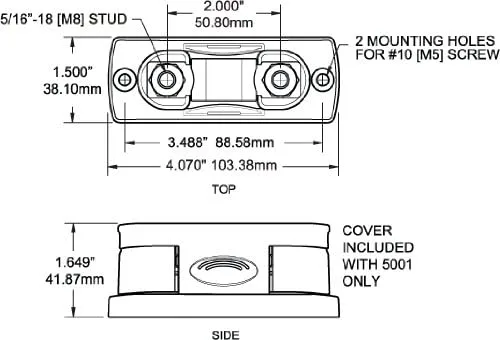

| Sizing & Dimensions | |
| Height | 1.5 inches |
| Product Dimensions | 4.07"W x 1.5"H |
| Size | 4.07" x 1.5" |
| Weight | 2.4 ounces |
| Width | 4.07 inches |
| Technical Specifications | |
| Centerline Length | 8 Inches |
| Current Rating | 300 Amps |
| Voltage | 32 Volts |
