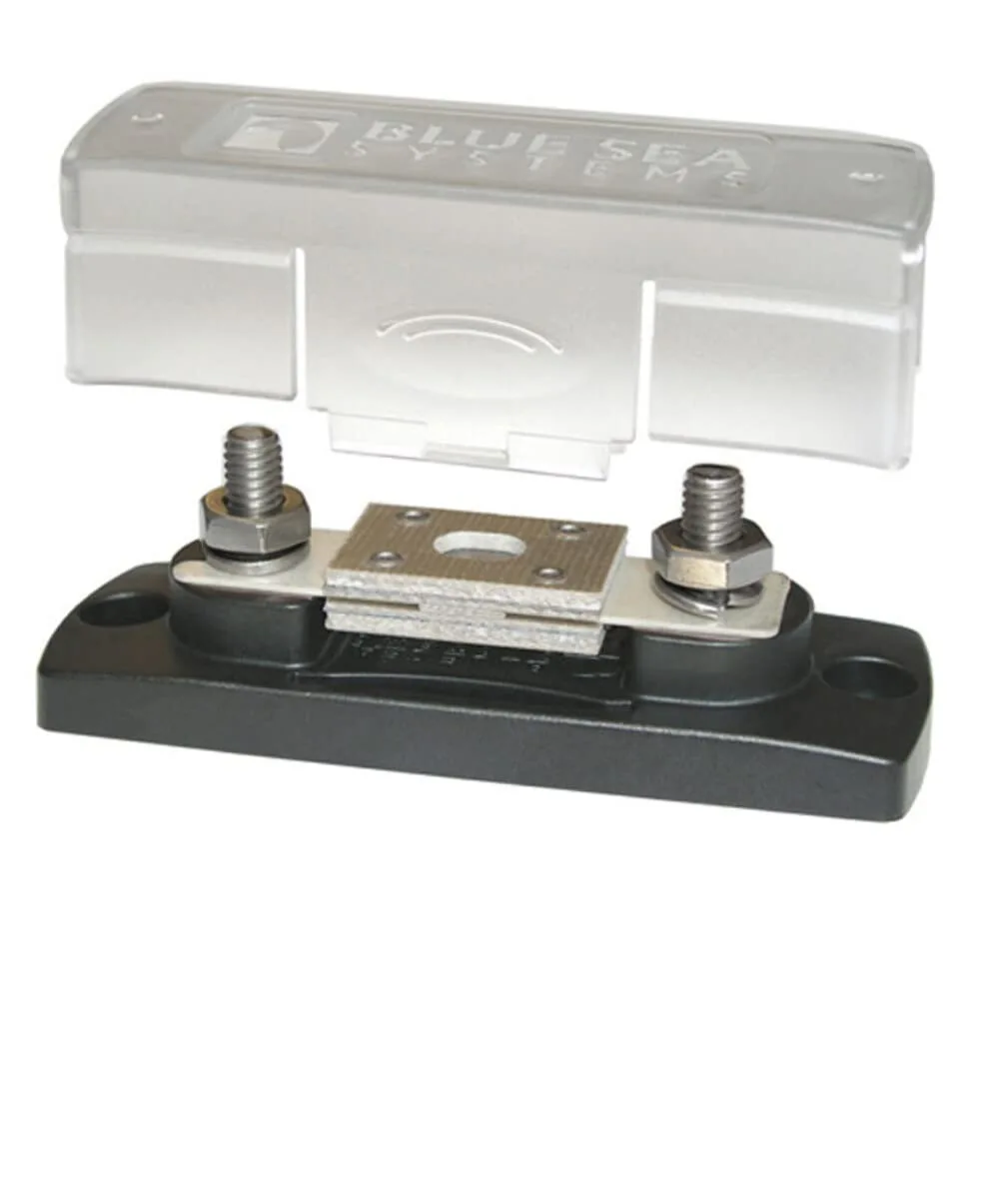

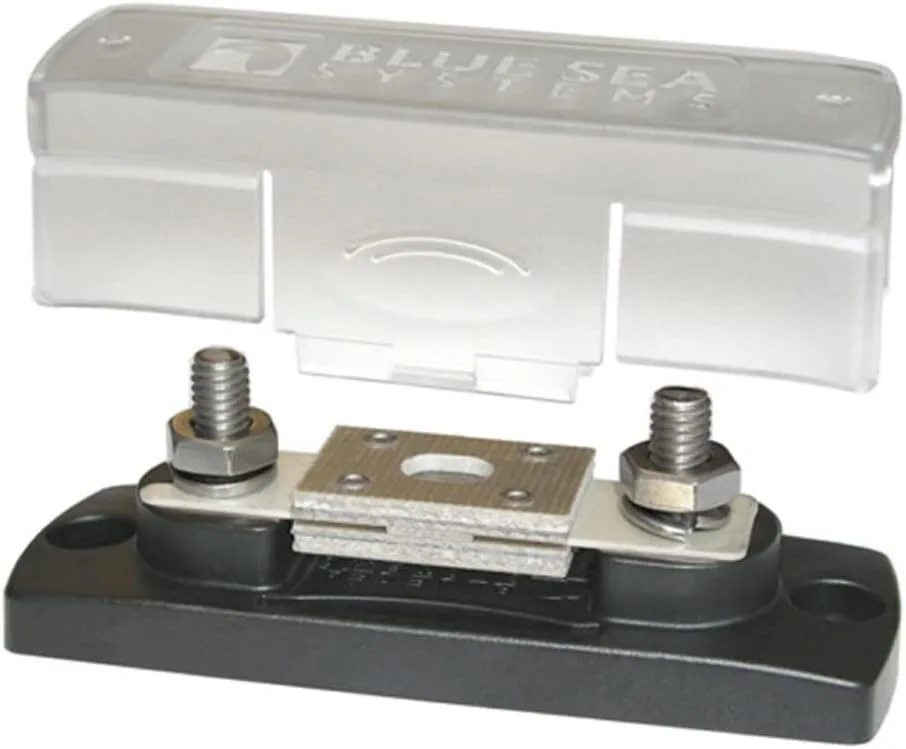

5005 ANL 35-300AMP Fuse Block with Cover. Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow access in any direction. For use on systems up to 32V DC. Large 5/16" - 18 studs accept 5/16" (M8) ring terminals, 14 AWG to 2/0 AWG wire. Includes insulating cover and mounting provisions for panel mount. Specification highlights from marketplace data: Voltage: 32 Volts; Current Rating: 300 Amps; Mounting Type: Panel Mount; Number Of Contacts: 2; Connector Type: Screw; Gauge: 14.0; Item Pitch / Centerline Length: 8 Inches; Material: Plastic; Color: Black; UL recognized. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. See P65Warnings.ca.gov.
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Connector Type | Screw |
| Current Rating | 300 Amps |
| Fuse Type | Anl |
| Gauge | 14.0 |
| Included Components | FUSE BLOCK ANL 250-AMP |
| Item Pitch | 8 Inches |
| Model Name | FUSE BLOCK ANL 250-AMP |
| Mounting Type | Panel Mount |
| Number Of Contacts | 2 |
| Specification Met | UL |
| Type | Fuse Blocks |
| Warranty Description | LIMITED WARRANTY |
| Sizing & Dimensions | |
| Height | 9 inches |
| Length | 1.5 inches |
| Product Dimensions | 4.5"W x 1.65"H |
| Size | #05660 |
| Weight | 0.71 ounces |
| Width | 6 inches |
| Technical Specifications | |
| Centerline Length | 8 Inches |
| Number Of Poles | 2 |
| Voltage | 32 Volts |
