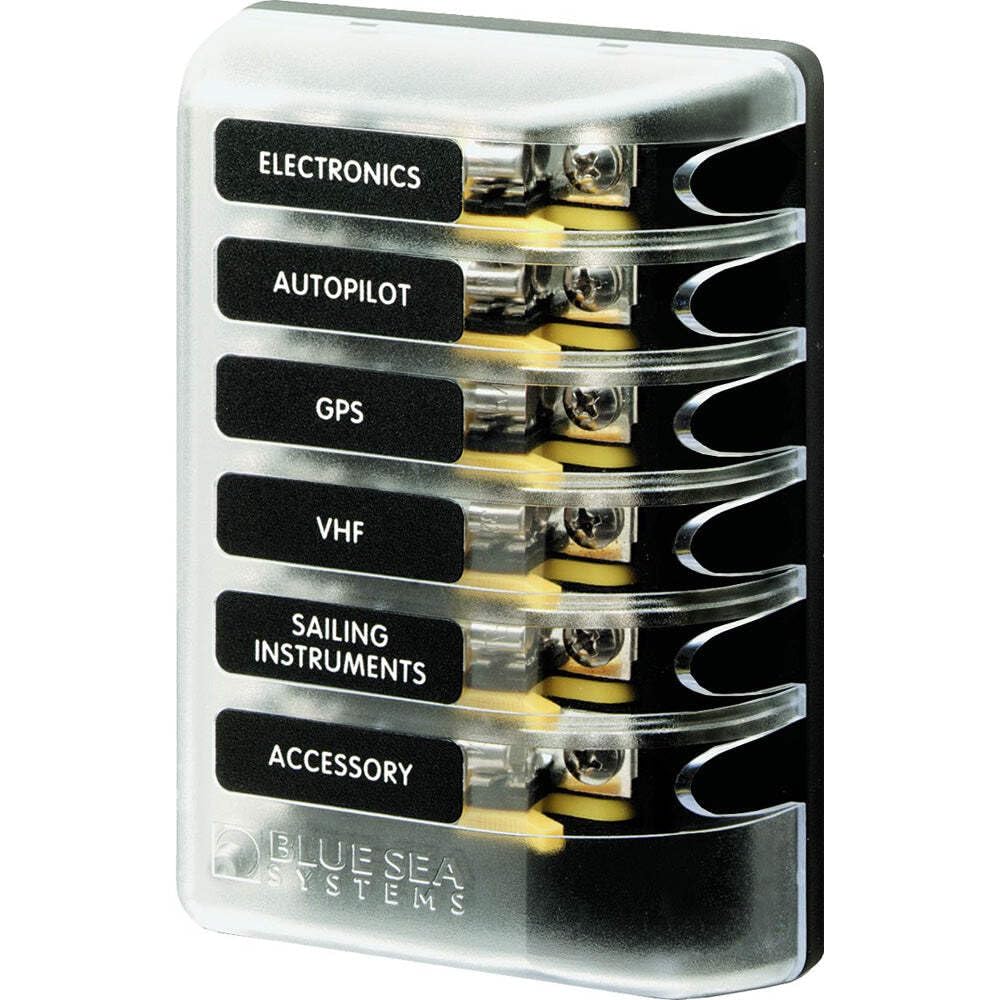

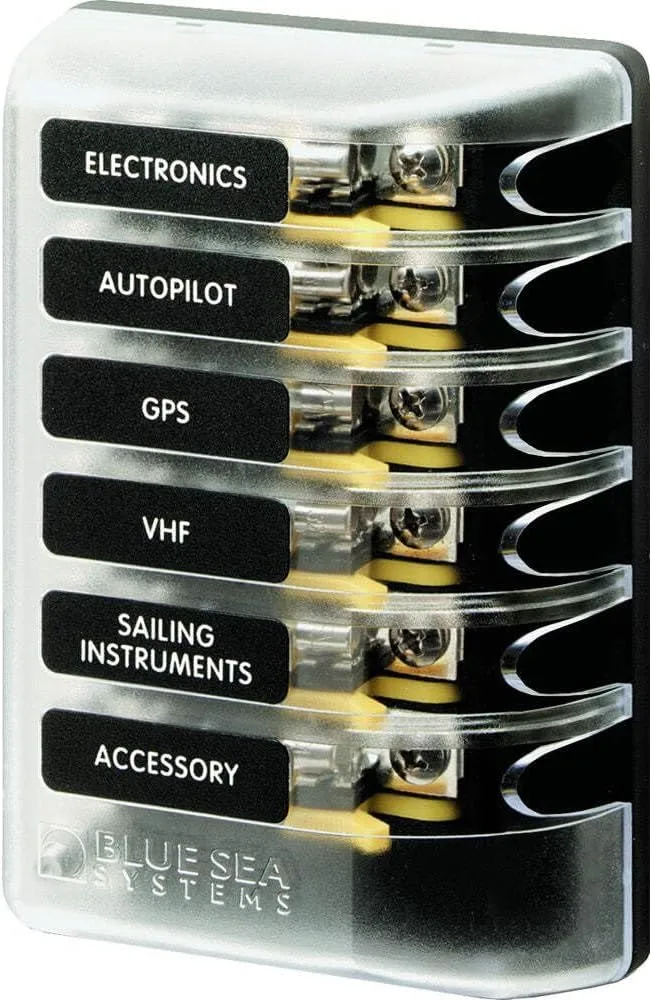

5018 ST Glass Fuse Block without Negative Bus - 6 Circuit. Features: Clear insulating cover with label recesses for accept Large Format Labels. Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses. Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit. Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Materials & Construction | |
| Color | Blue |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Screw |
| Current Rating | 3E+1 Amps |
| Fuse Type | Agc/Mdl |
| Included Components | Blue Sea 5018 ST Glass Fuse Block w/out Negative Bus - 6 Circuit |
| Model Name | Blue Sea 5018 ST Glass Fuse Block w/out Negative Bus - 6 Circuit |
| Mounting Type | Panel Mount |
| Number Of Contacts | 6 |
| Number Of Poles | 6 |
| Specification Met | True |
| Type | Fuse Blocks |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 4 x 2 inches |
| Size | One Size |
| Weight | 3.2 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Warranty | Warranty |
