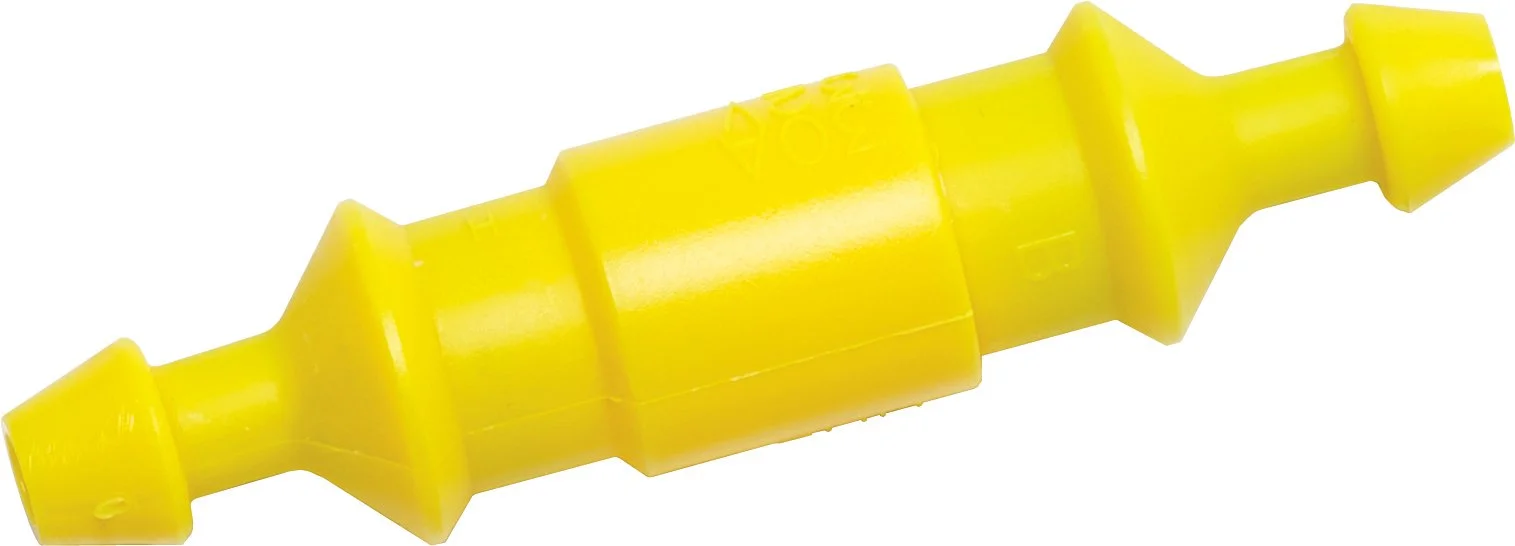

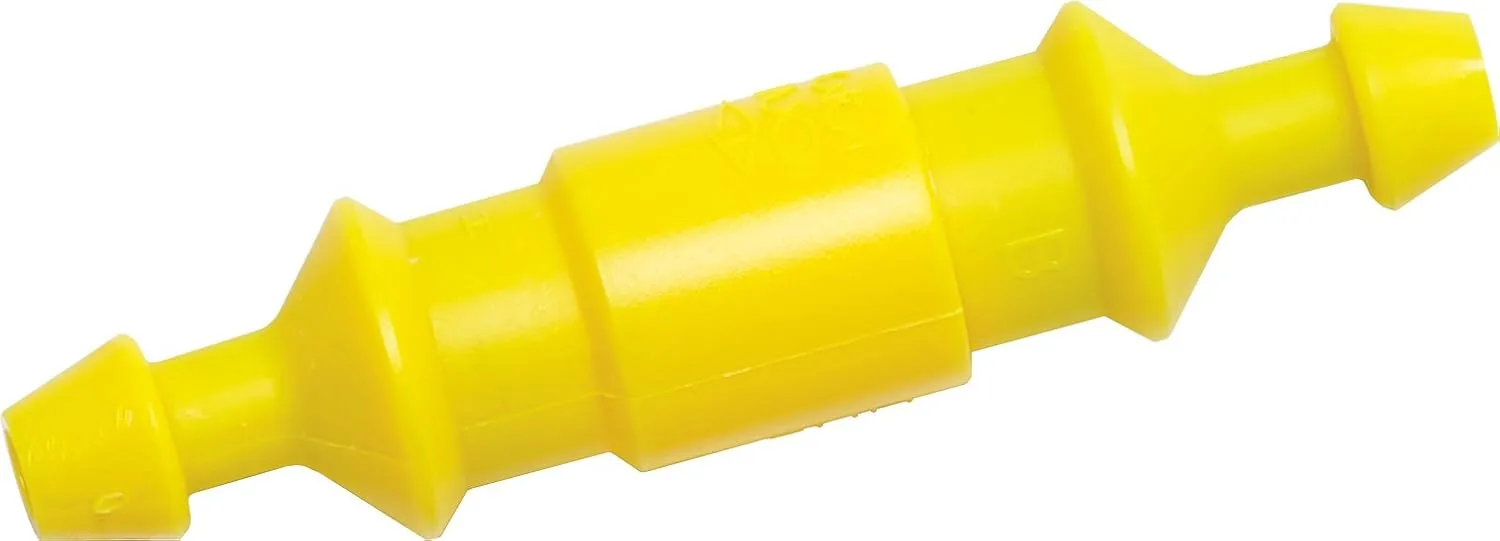

Blue Sea Systems 5060 Crimpable In-Line AGC/MDL Fuse Holder, Yellow
Blue Sea Systems 5060 crimpable in-line AGC/MDL fuse holder; accepts 12–18 AWG wire, 30A max. Plastic, screw-mount crimp connector; yellow finish. Fuse sold separately.
$9.99
Customize
Available Quantity
24 GSA Item
No GSA Compliant
Yes Product Details
Crimpable In-Line Fuse Holder that accepts 12-18 AWG wire with a 30A maximum fuse amperage. Connector type is crimp with screw-mount capability. Constructed of durable plastic and finished in yellow for easy identification. For use with Blue Sea Systems' ANL Fuse Blocks. Fuse sold separately. Fuse Type: AGC/MDL. Type: Fuse Holders. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Accepts 12-18 AWG wire
- 30A Maximum fuse amperage
- Fuse sold separately
- For use with Blue Sea Systems' ANL Fuse Blocks
Specifications:
| Materials & Construction | |
| Color | Yellow |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Crimp |
| Current Rating | 30 Amps |
| Fuse Type | Agc/Mdl |
| Gauge | 12.0 |
| Included Components | Blue Sea Systems 5060 Crimpable In-Line AGC/MDL Fuse Holder |
| Mounting Type | Screw Mount |
| Number Of Contacts | 2 |
| Number of Items | 1 |
| Number Of Poles | 2 |
| Type | Fuse Holders |
| Upper Temperature Rating | 125 Degrees Celsius |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 2 x 1 inches |
| Size | One Size |
| Weight | 0.35 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Current Rating | 30 Amps |
| Gauge | 12.0 |
| Upper Temperature Rating | 125 Degrees Celsius |
