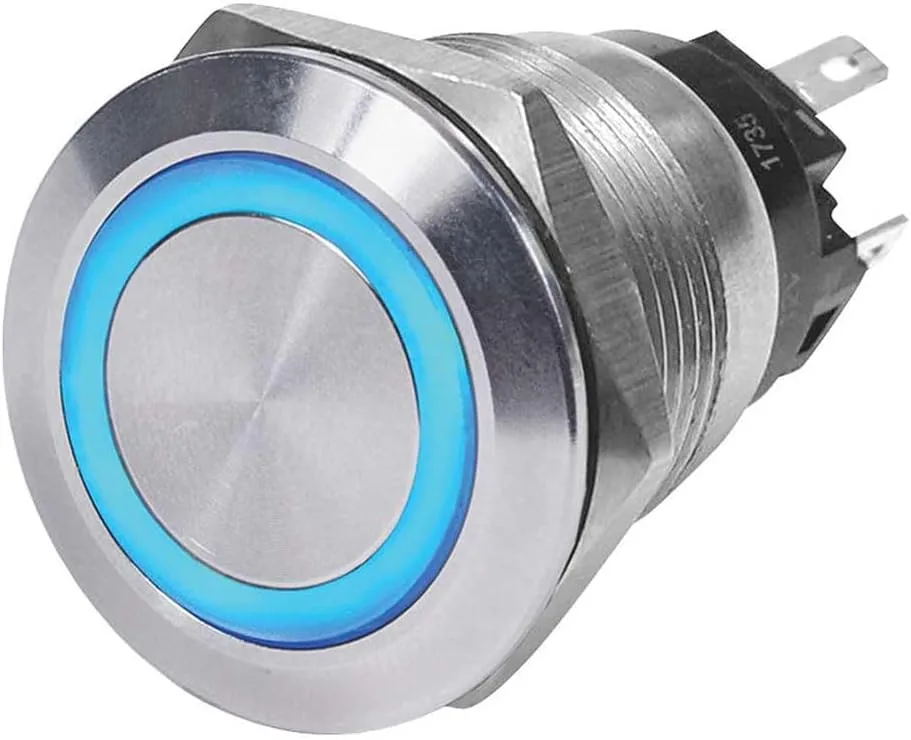

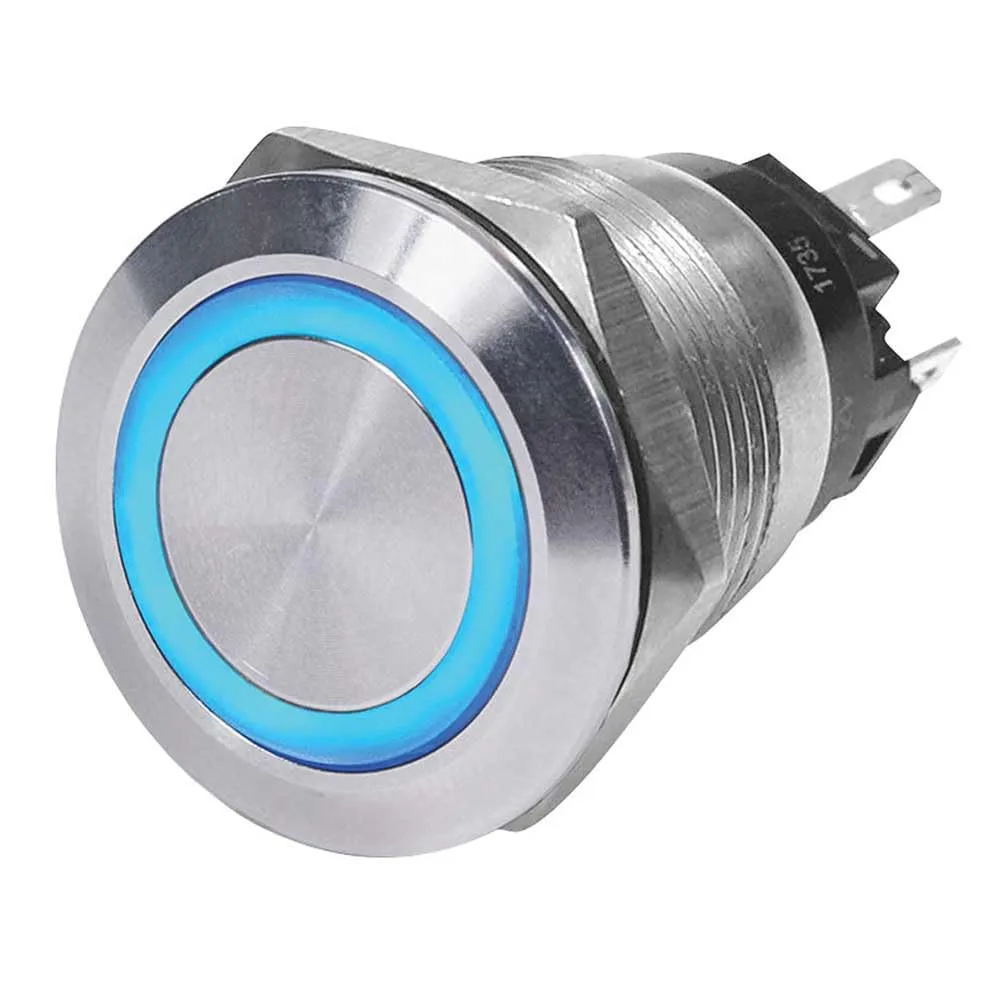

Blue Sea 4160 SS Push Button Switch - Off-On - Blue - 10A
Customize
4160 SS Push Button Switch - Off-On - Blue - 10A 10A continuous Single Pole Double Throw or Single Pole Single Throw Can be wired for normally open or normally closed Installs with .110inch quick connects (included in retail package) Specifications Action: OFF-ON Amperage: 10A @ 12V DC Nominal Voltage: 12V DC Maximum LED Operating Current: 20mA Minimum Operating Temperature: -10° C Maximum Operating Temperature: 70° C Minimum Storage Temperature: -55° C Maximum Storage Temperature: 85° C Illumination: Independent – Separate contacts for LED power Mounting Hole: 19mm Switching Cycles: 18,000 Termination: 5 – 0.110inch Quick Connect terminals WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Color: Stainless , Action: On/Off
- Fit type: Universal Fit
- Blue LED Light
- LED Ring Switch
- Can be wired for normally open or normally closed
- 10A Continuous
Specifications:
| Materials & Construction | |
| Color | Blue |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Circuit Type (duplicate-check) | 1-way |
| Connector Type | quick connects |
| Contact Material | Stainless Steel |
| Contact Type | Normally Open |
| Control Method | Touch |
| Controller Type | Ring, Push Button |
| International Protection Rating | IP54 |
| Number of Positions | 1 |
| Operation Mode | manual |
| Terminal | 5 – 0.110 Inch Quick Connect |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 2 inches |
| Size | 5 x 3 x 2 inches |
| Weight | 3.2 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Current Rating | 10 Amps |
| Operating Voltage | 12 Volts (DC) |
| Wattage | 1.2E+2 |
