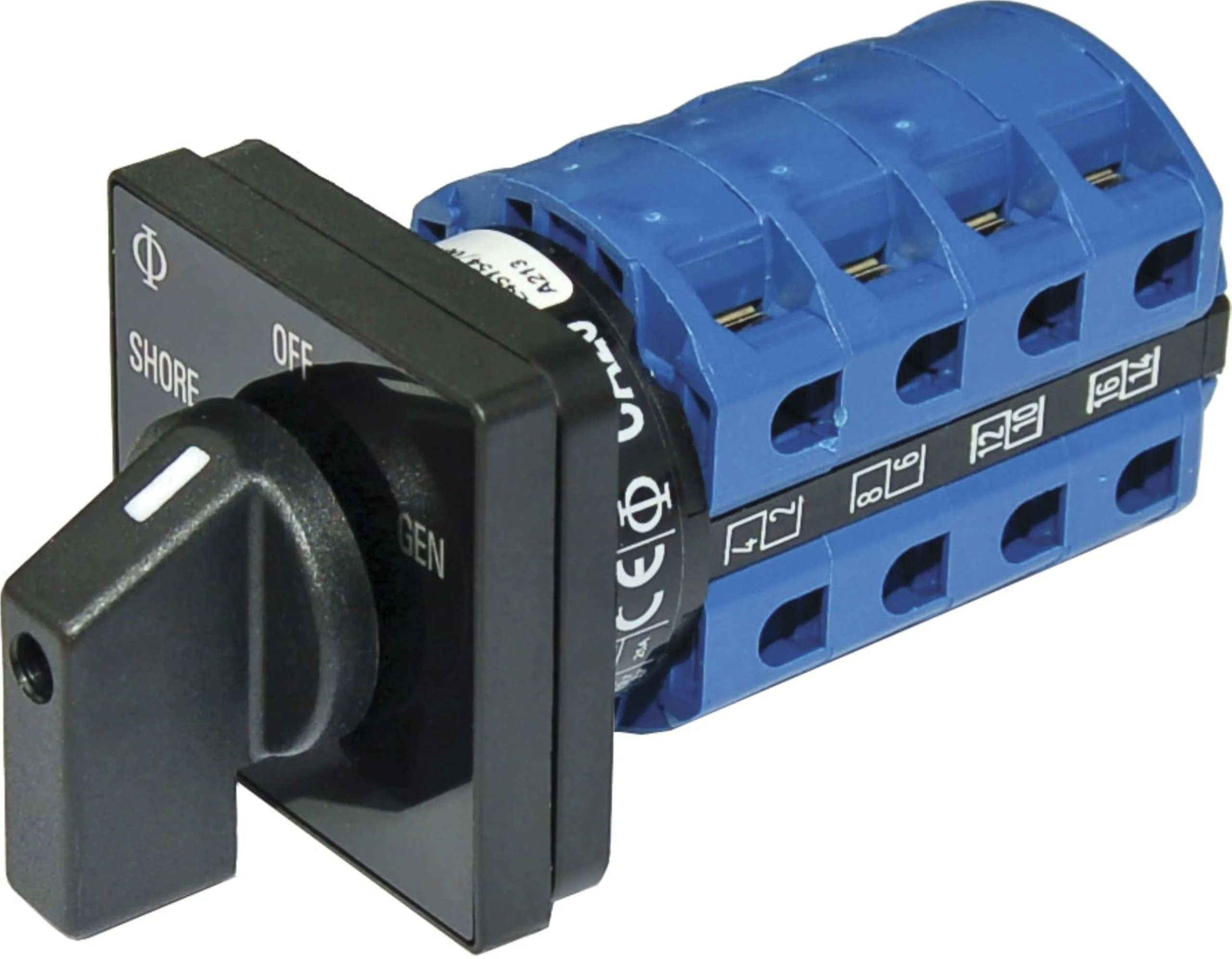

Blue Sea Systems 6337 AC Rotary Switch - OFF + 2 Positions 120V AC 30A
Customize
Switch, AC 120V AC 30A OFF+2 Position. Switches between 2 - 120v AC shore power sources and 1 - 240v AC Source to 2 - 120v AC load groups. Switches both lines (hot) and neutral. Compact solution when circuit protection is provided elsewhere. Allows connecting one of two different AC sources to one circuit. Mounts in panels up to 0.16" (4.00mm) thick. Heavy duty industrial rated switch. Intuitive function - One hand operation. UL listed 600 Volt AC max. IP-67 rated waterproof. Meets SAE J1171 external ignition protection requirements. Includes rotary switch and instructions. Package weight approx. 0.6 lbs. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- IP-67 Rated Waterproof
- Meets SAE J1171 external ignition protection requirements
- Switches both lines (hot) and neutral
- Switches between 2 - 120 Volt AC shore power sources and 1 - 120/240 Volt AC source to 2 - 120V AC load groups
Specifications:
| Materials & Construction | |
| Color | Black/Blue |
| Material | Tin Plated Copper |
| Outer Material | Tin Plated Copper |
| Product Details | |
| Actuator Type | Rotary |
| Circuit Type | 2-way |
| Connectivity Protocol | X-10 |
| Connector Type | Crimp |
| Contact Material | Tin Plated Copper |
| Contact Type | Break Before Make |
| Control Method | Touch |
| Global Trade Identification Number | 00632085063375 |
| Included Components | Rotary Switch and instructions |
| International Protection Rating | IP67 |
| Number of Items | 1 |
| Number of Positions | 3 |
| Operation Mode | ON-OFF-ON |
| Terminal | Sae |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Wattage | 3600 watts |
| Sizing & Dimensions | |
| Height | 1.89 inches |
| Length | 2.98 inches |
| Product Dimensions | 2.98 x 1.89 x 1.89 inches |
| Size | 30 Amps |
| Weight | 3.2 ounces |
| Width | 1.89 inches |
| Technical Specifications | |
| Current Rating | 30 Amps |
| International Protection Rating | IP67 |
| Lower Temperature Rating | 4.4 Degrees Celsius |
| Number of Positions | 3 |
| Operating Voltage | 600 Volts (AC) |
| Operation Mode | ON-OFF-ON |
| Upper Temperature Rating | 65 Degrees Celsius |
