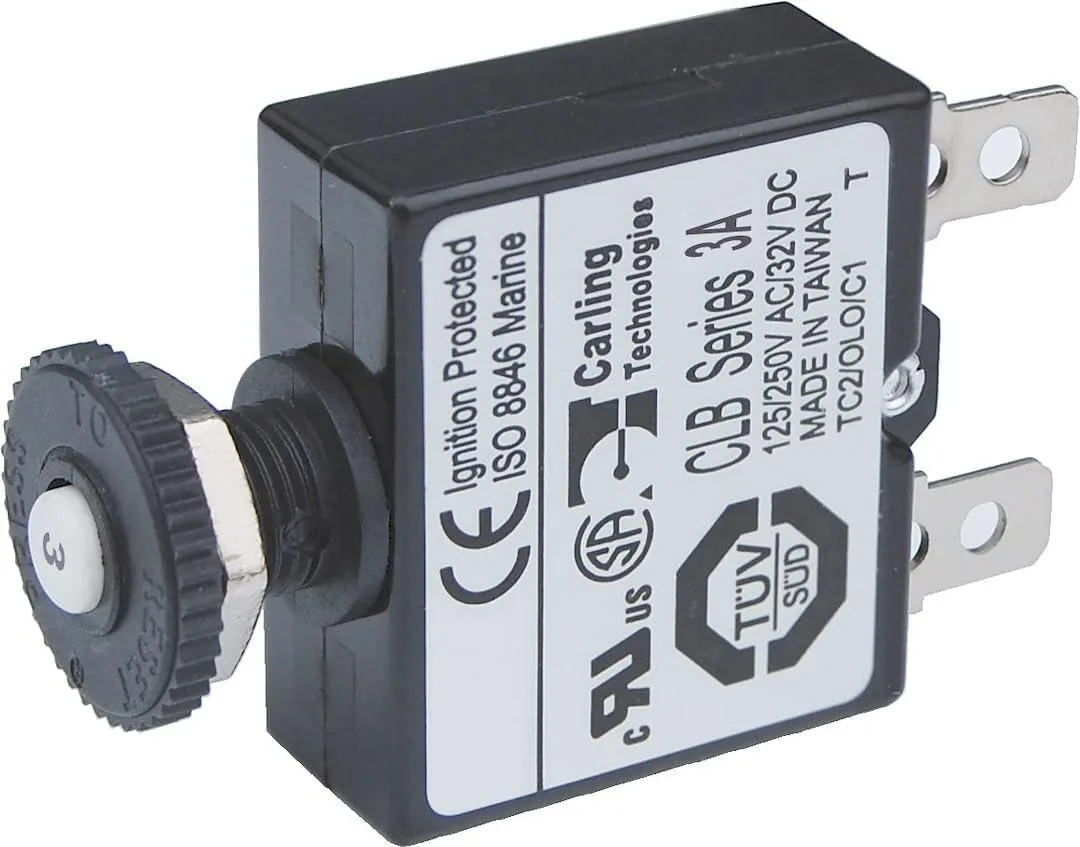

Blue Sea Systems 7050 Circuit Breaker Push-Button 3A, Beige
BLUE SEA SYSTEMS 7050 3A push-button thermal circuit breaker. Surface-mount with male quick-connect terminals, push-to-reset 'trip-free' design and ignition-protected for marine and battery circuit protection.
$8.99
Customize
Available Quantity
10 GSA Item
No GSA Compliant
Yes Product Details
7050 Push Button Thermal with Quick Connect Terminals 3A. Ideal for 24-hour circuit protection. Incorporated into Blue Sea Systems' WeatherDeck Waterproof Circuit Breaker panels and main Battery Main Distribution Panels. Push to reset operation. "Trip Free" design cannot be held "ON" during fault current condition. Ignition protected - Safe for installation aboard gasoline powered boats. With male quick connect terminals. Branch circuit breakers (can also be used for 24-hour circuit protection). Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels and 360 Distribution Panels. IP-66 rated Waterproof.
- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
Specifications:
| Materials & Construction | |
| Mirror Lighting Type (info) | Non-Illuminated |
| Product Details | |
| Amperage | 3a |
| Circuit Breaker Type | Standard |
| Current Rating | 3 Amps |
| Is Discontinued By Manufacturer | No |
| Lift Type | OFF-NONE-ON |
| Mirror Lighting Type | Non-Illuminated |
| Mounting Type | Surface Mount |
| National Stock Number | 5925-01-567-4157 |
| Number Of Poles | 1 |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 2 x 1 inches |
| Weight | 1 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Country of Origin | USA |
| Item model number | 7050 |
| Manufacturer Part No | 7050 |
| Model | CIRCUIT BREAKER PUSH-BUTTON 3A |
