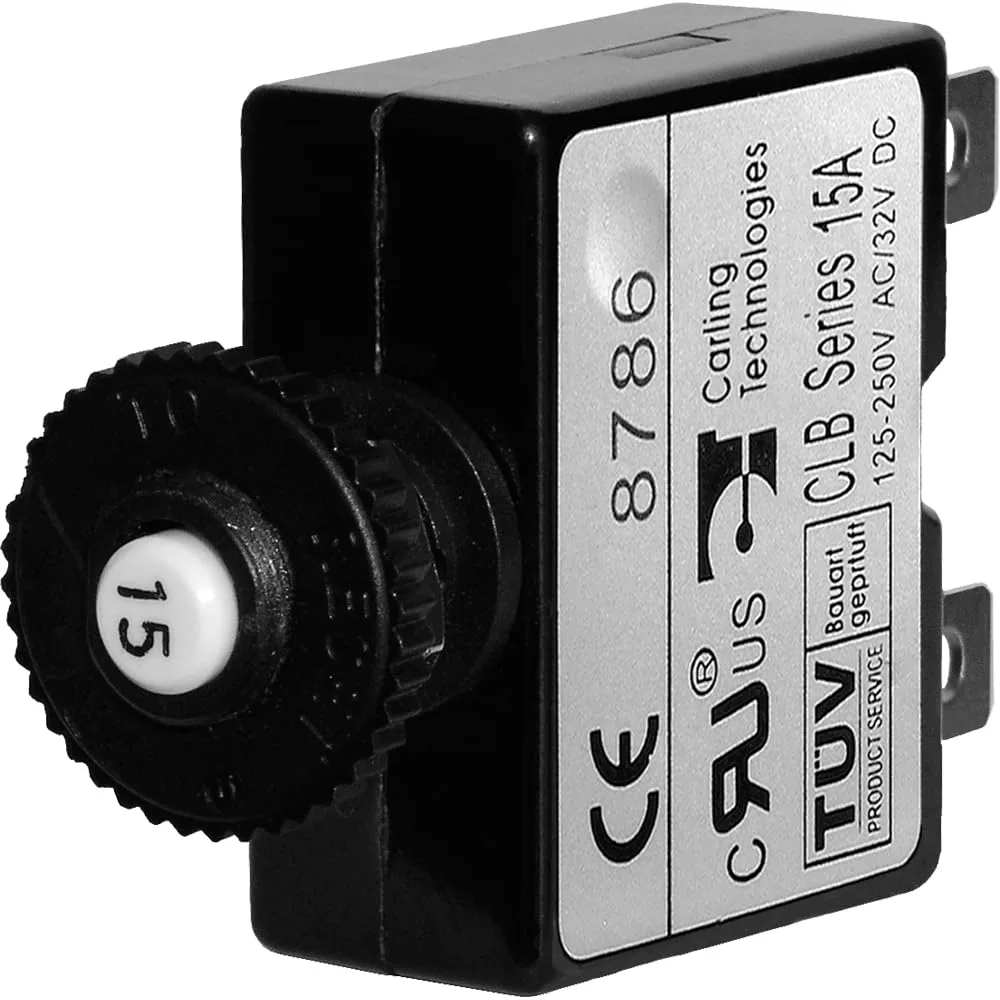

Blue Sea Push-Button Reset-Only Quick-Connect Thermal Dc Circuit Breaker, 15A
Customize
With a compact design that enables high-density configurations, these quick-connect terminal-style circuit breakers can be used for 24-hour circuit protection. For use with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels. Thermal trip circuit breaker resets with the push of a button. "Trip Free" design cannot be held "ON" during fault current condition. Ignition protected - Safe for installation aboard gasoline powered boats. Not recommended for use with marine AC circuits. 1/4" Male Quick Connect terminals. Operating temperature range: -10ºC to +60ºC). UL recognized, CE marked, and TUV certified. Optional waterproof boot sold separately (item #84894, 84895, and 84896). Max voltage: 32V DC. Interrupt Rating: 3,000A @ 14.7V DC; 2,500A @ 28V DC. 7056 Push Button Thermal with Quick Connect Terminals 15A. Ideal for 24-hour circuit protection. Incorporated into Blue Sea Systems' Waterproof Circuit Breaker panels and main Battery Main Distribution Panels. Push to reset operation. "Trip Free" design cannot be held "ON" during fault current condition. Ignition protected - Safe for installation aboard gasoline powered boats. With male quick connect terminals.
- Reset-only push-button operation
- "Trip Free": cannot be held closed after trip
- Termal trip circuit breaker
- Ignition protected
Specifications:
| Product Details | |
| Amperage | 15a |
| Batteries Included | No |
| Batteries Required | No |
| Circuit Breaker Type | Standard |
| Current Rating | 15 Amps |
| Item model number | 7056 |
| Item Package Quantity | 1 |
| Mounting Type | Panel Mount |
| Number Of Poles | 1 |
| Voltage | 28 Volts, 32 Volts |
| Sizing & Dimensions | |
| Height | 1.25 inches |
| Length | 4.44 inches |
| Product Dimensions | 4.44 x 2.69 x 1.25 inches |
| Weight | 0.96 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Product Dimensions | 4.44 x 2.69 x 1.25 inches |
