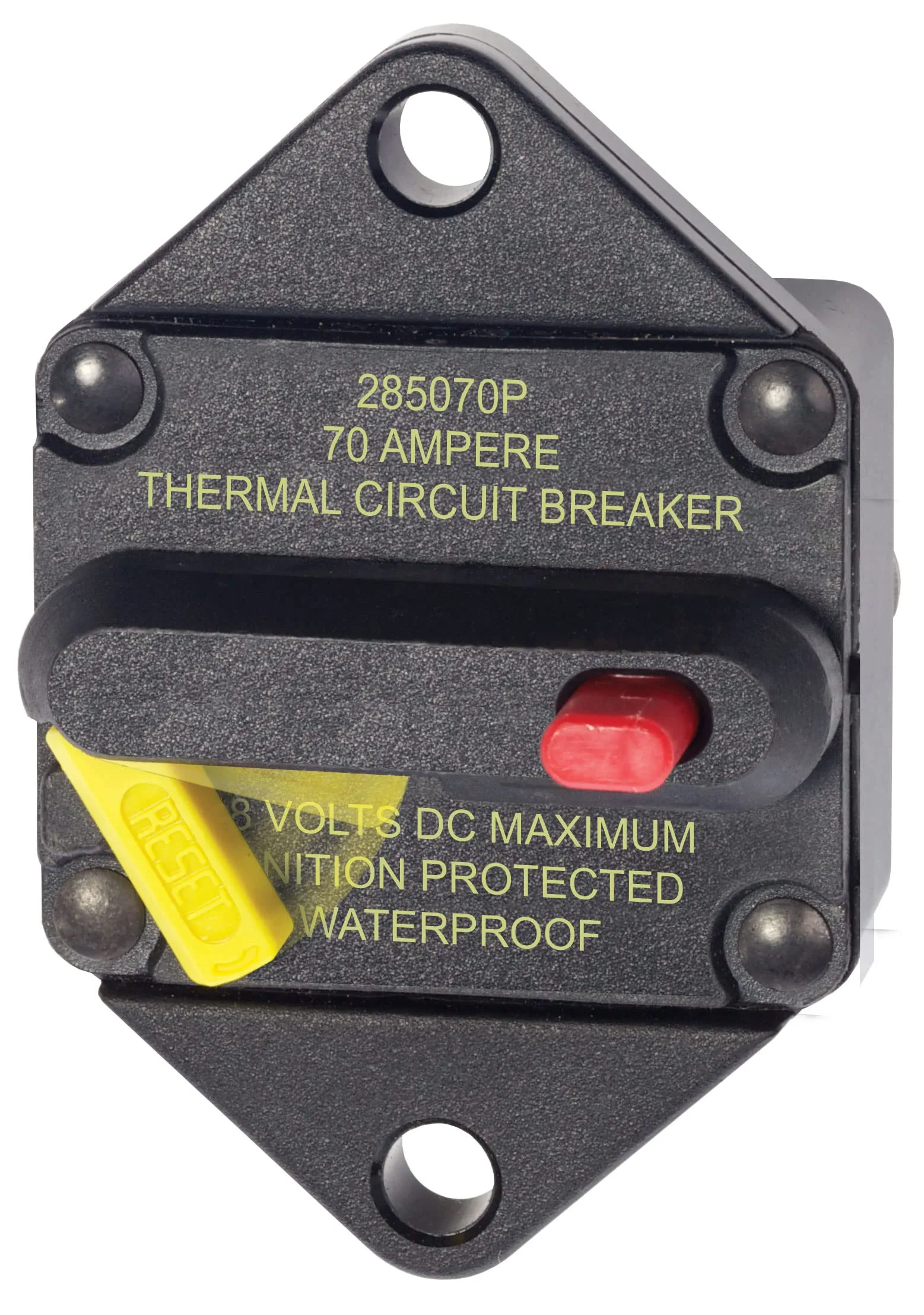

Blue Sea Systems 7085 Series 285 Circuit Breaker - Panel Mount 70A
Customize
285-Series Thermal Circuit Breaker Panel Mount - 70A Part#7085. Drop in replacement for 185-Series Circuit Breakers. Visible reset lever shows open condition. Ignition protected - Safe for installation aboard gasoline powered boats. Meets SAE J1171 external ignition protection requirements. Weather Resistant. Combines switching and circuit breaker function into one unit. "Trip Free" - cannot be held closed after trip. Do not use for direct control of high inrush loads such as motor starting. Specifications (from manufacturer and marketplace data): Interrupt Rating 3,000A @ 48V DC*; Maximum Voltage Rating 48 Volts DC; Operating Temperature Range -40°C to 85°C; Circuit Breaker Type: Thermally Responsive Bi-metal blade; Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free; Terminal Stud Size: M6 (accepts 1/4" Ring Terminal); Terminal Stud Torque: 50 in-lb; Mounting Holes Accept 1/4" (M6) screw. Package and product dimensions: 9 x 5 x 2 inches; product weight ~4.8 ounces. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Blue Sea Systems
Specifications:
| Product Details | |
| Circuit Breaker Type | Type III - switchable/manual reset - trip free |
| Current Rating | 70 Amps |
| Mounting Type | Panel Mount |
| Number Of Poles | 1 |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 5 x 2 inches; 4.8 ounces |
| Weight | 4.8 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Is Discontinued By Manufacturer | No |
