Blue Sea Systems 7154 Marine Grade Short Stop Circuit Breaker - 25A
Customize

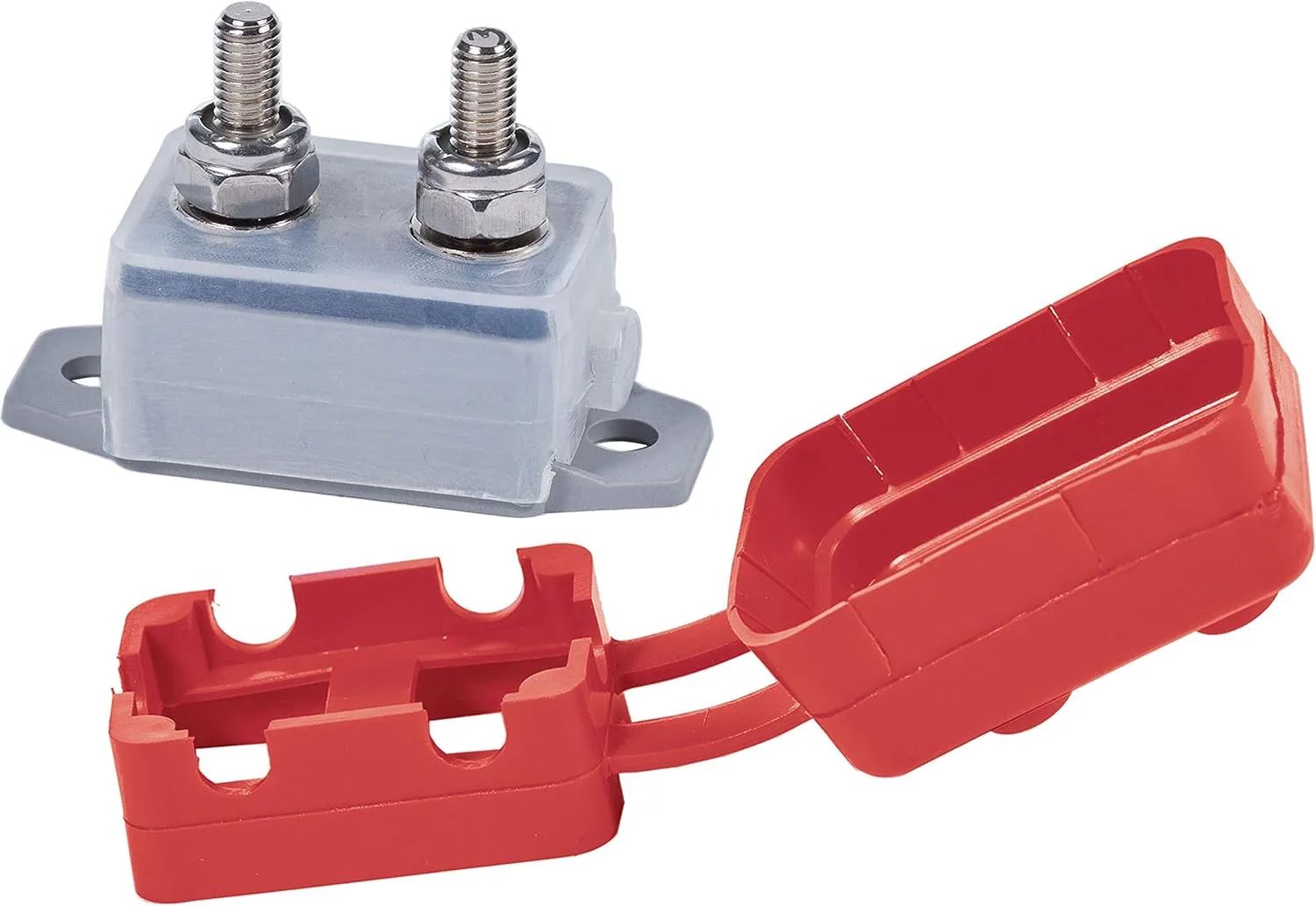

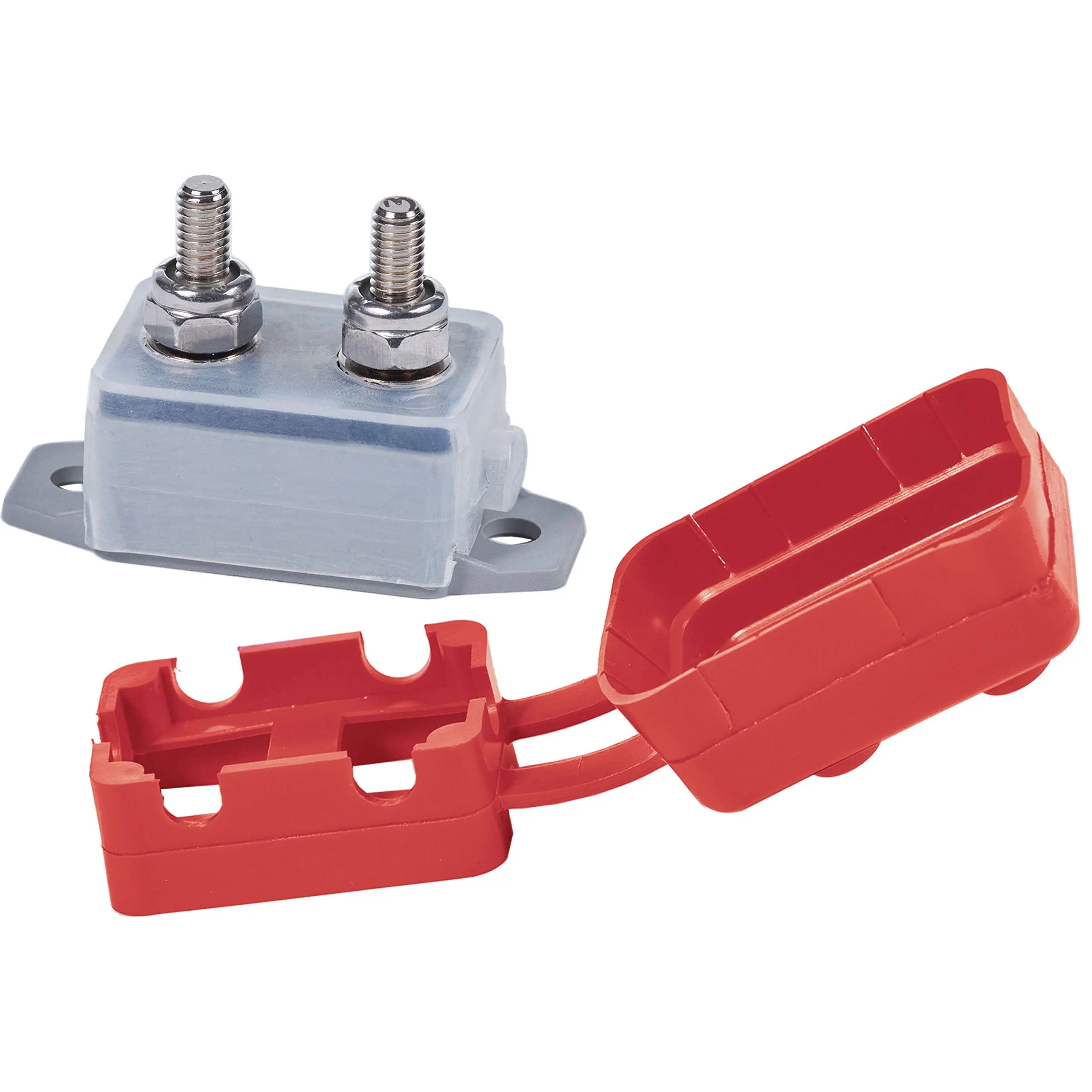

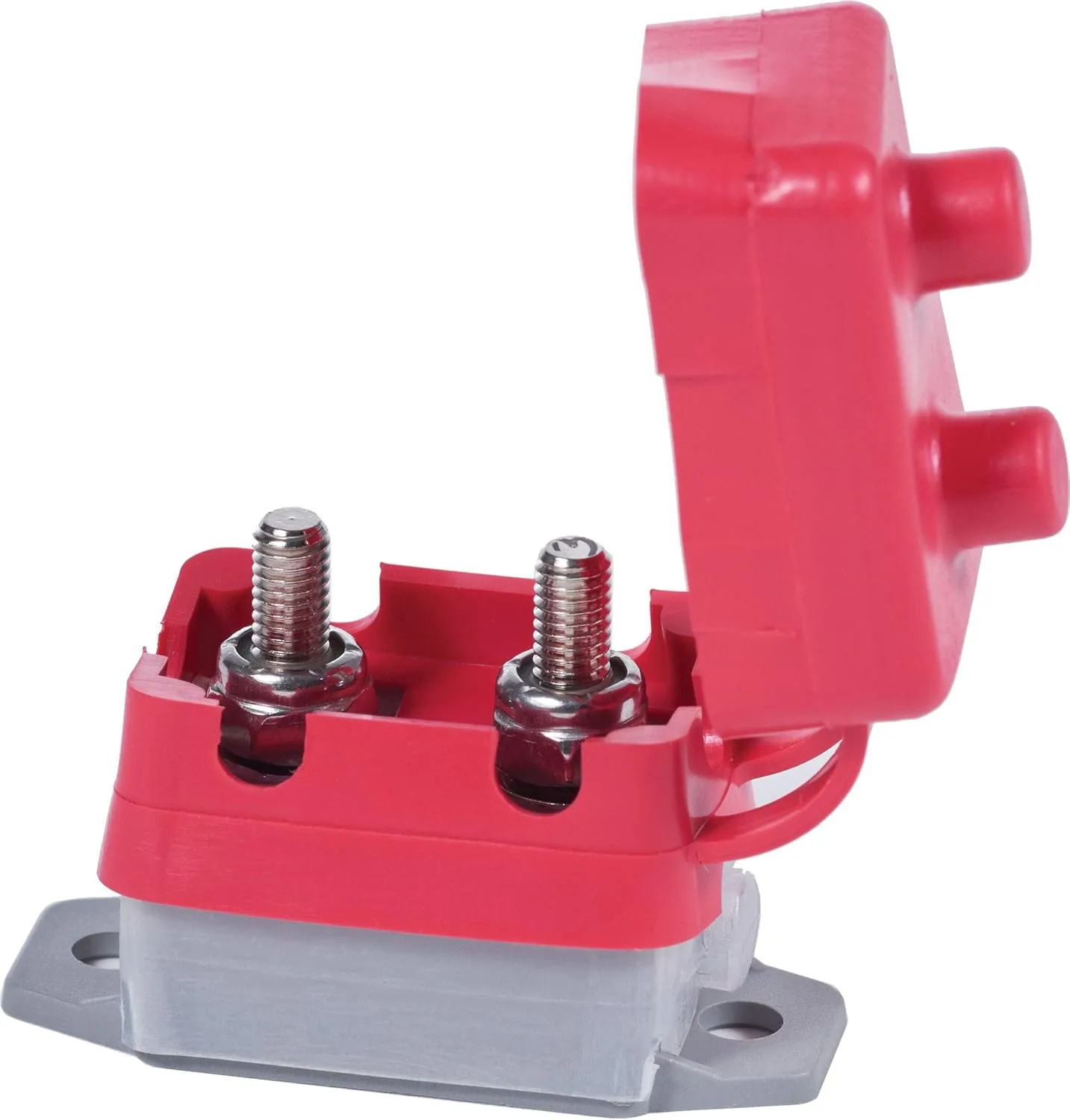

The Blue Sea Systems 7154 Short Stop Circuit Breaker (25A) is a marine-grade, corrosion-resistant thermal trip, manual-reset circuit breaker designed for harsh environments. It features an IP64-rated water-resistant insulating boot to protect against dust and splashing water and a push-to-reset operation that only disconnects when tripped. Stainless steel lock nuts are provided for secure connections and a red insulating boot is included in the retail package. Key electrical ratings: 25A amperage, maximum voltage 28V DC, interrupt capacity 2500A @ 28V DC. Operating temperature range: -10°C to 60°C. Terminal stud: #10-32. Screw terminal torque: 24 in-lb (2.71 Nm). The breaker is suitable for panel or wall mount and provides reliable overcurrent protection in marine, automotive, and replacement parts applications. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Manufacturer Part Number: 7154-BSS
- Amperage: 25A
- Stainless steel lock nuts and red insulating boot included
- Push-to-reset operation only disconnects when tripped
- IP64 water resistant boot protects against dust and splashing water
- Corrosion resistant materials to withstand harsh environments
Specifications:
| Materials & Construction | |
| Color | Red insulating boot included |
| Material | Corrosion-resistant |
| Outer Material | Corrosion-resistant |
| Product Details | |
| Circuit Breaker Type | Standard |
| Current Rating | 25 Amps |
| Global Trade Identification Number | 00632085071547 |
| Manufacturer Part No | 7154-BSS |
| Mounting Type | Panel or wall mount |
| Number Of Poles | 1 |
| Voltage | 28 Volts |

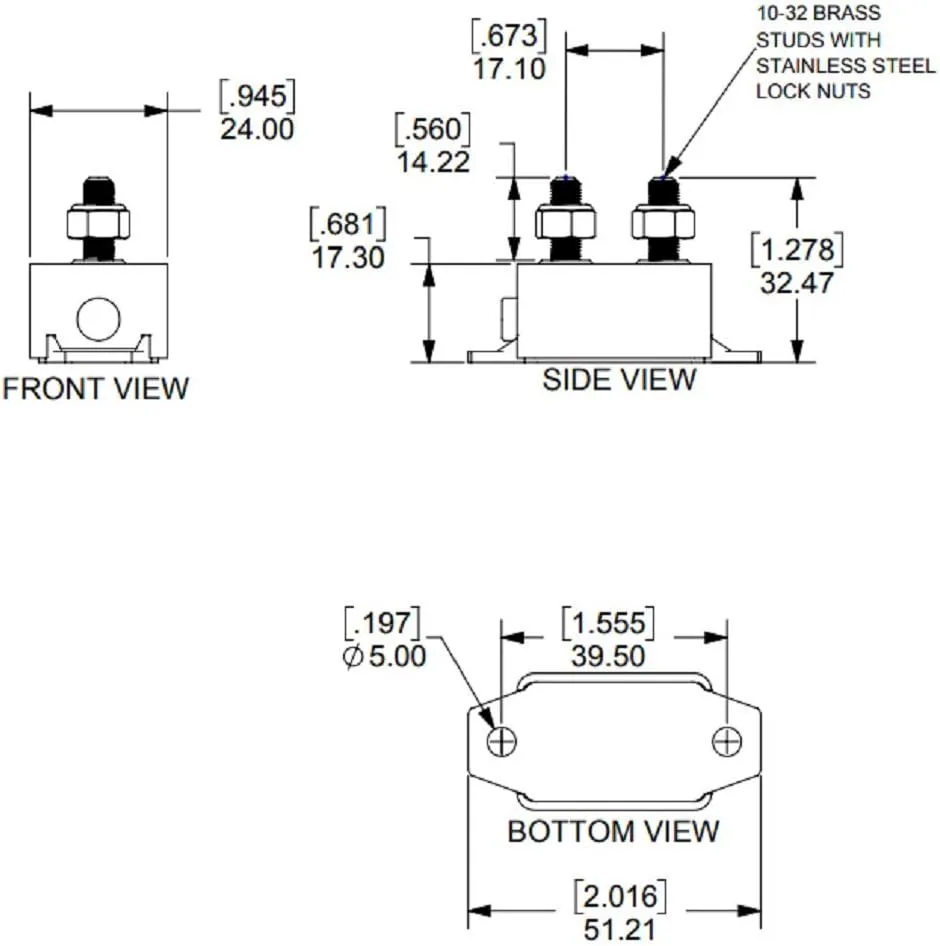

| Sizing & Dimensions | |
| Height | 4.44 inches |
| Length | 1.25 inches |
| Product Dimensions | 1.25 x 2.69 x 4.44 inches |
| Weight | 0.96 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Interrupt Capacity | 2500A @ 28V DC |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Screw Terminal Torque | 24 in-lb (2.71 Nm) |
| Terminal Stud | #10-32 |
