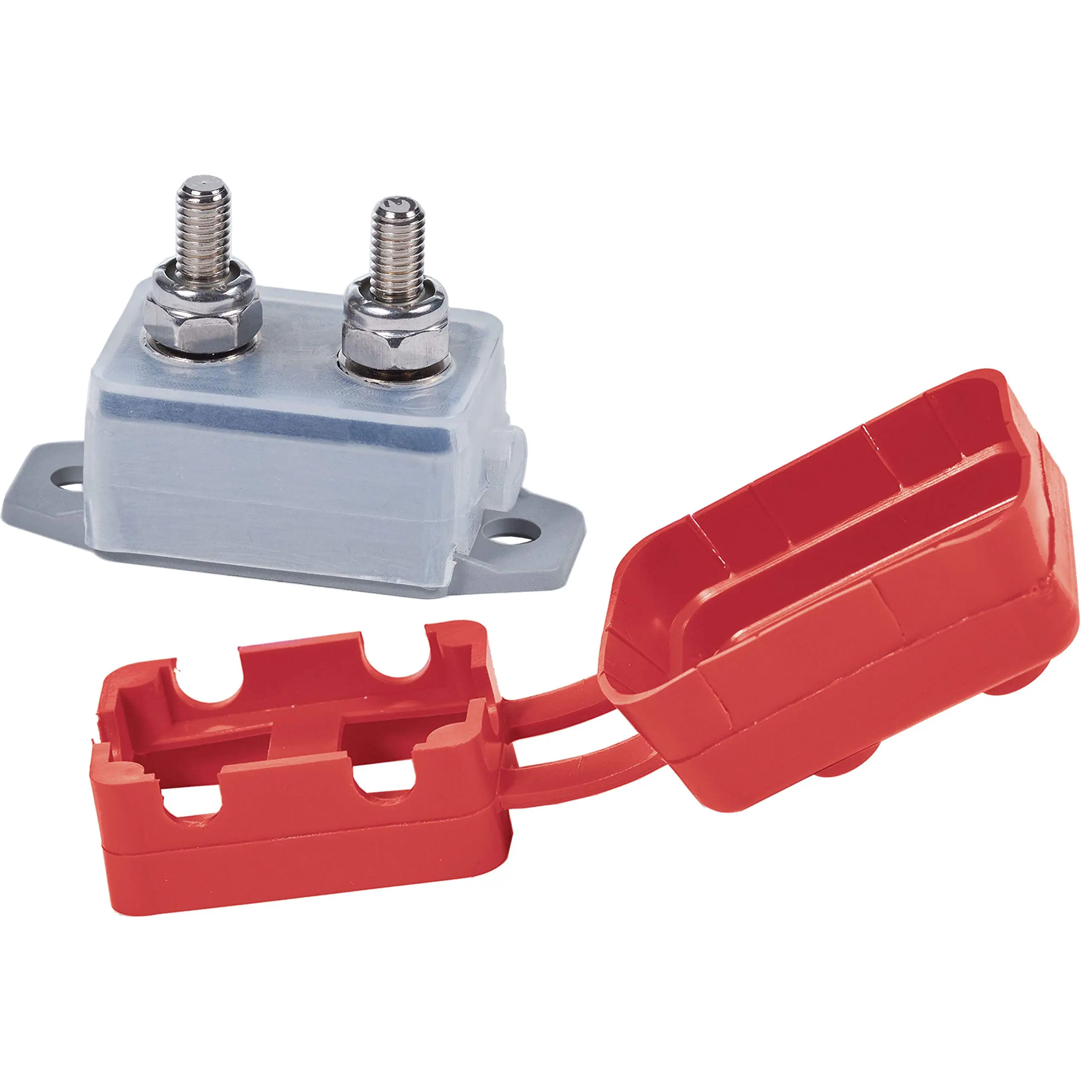

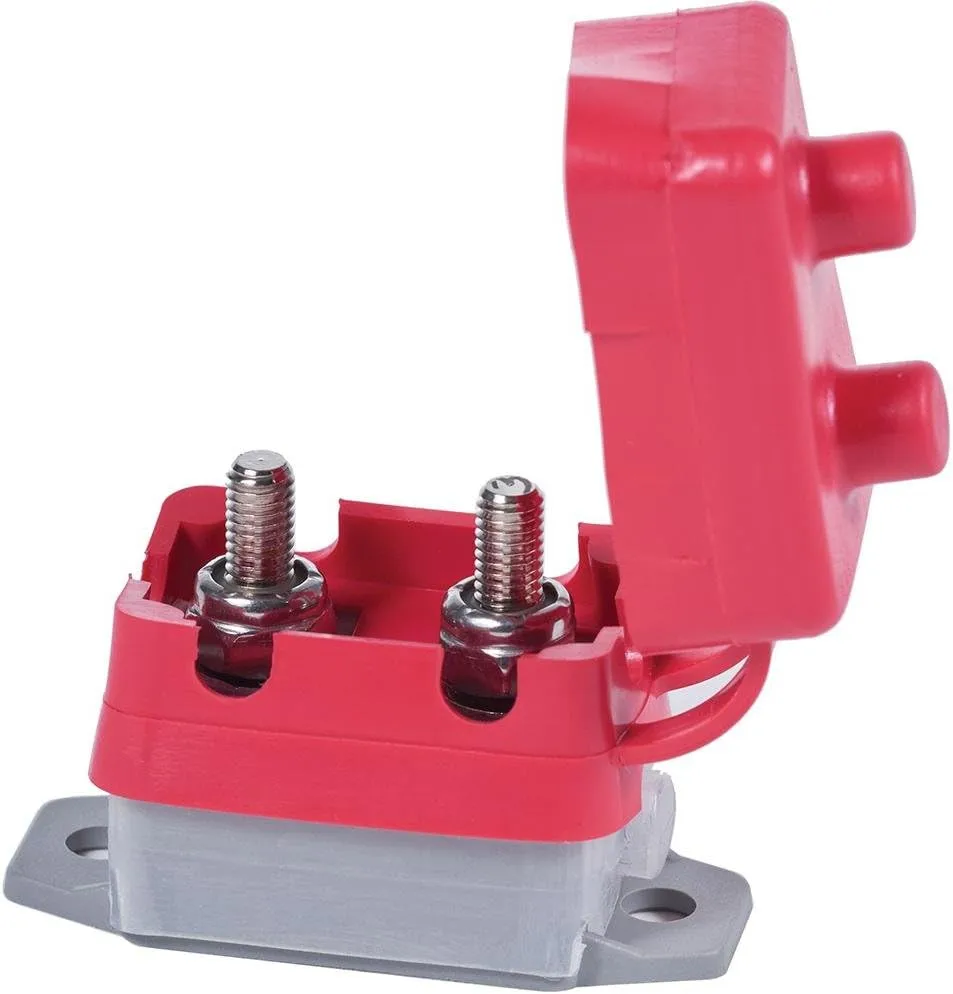

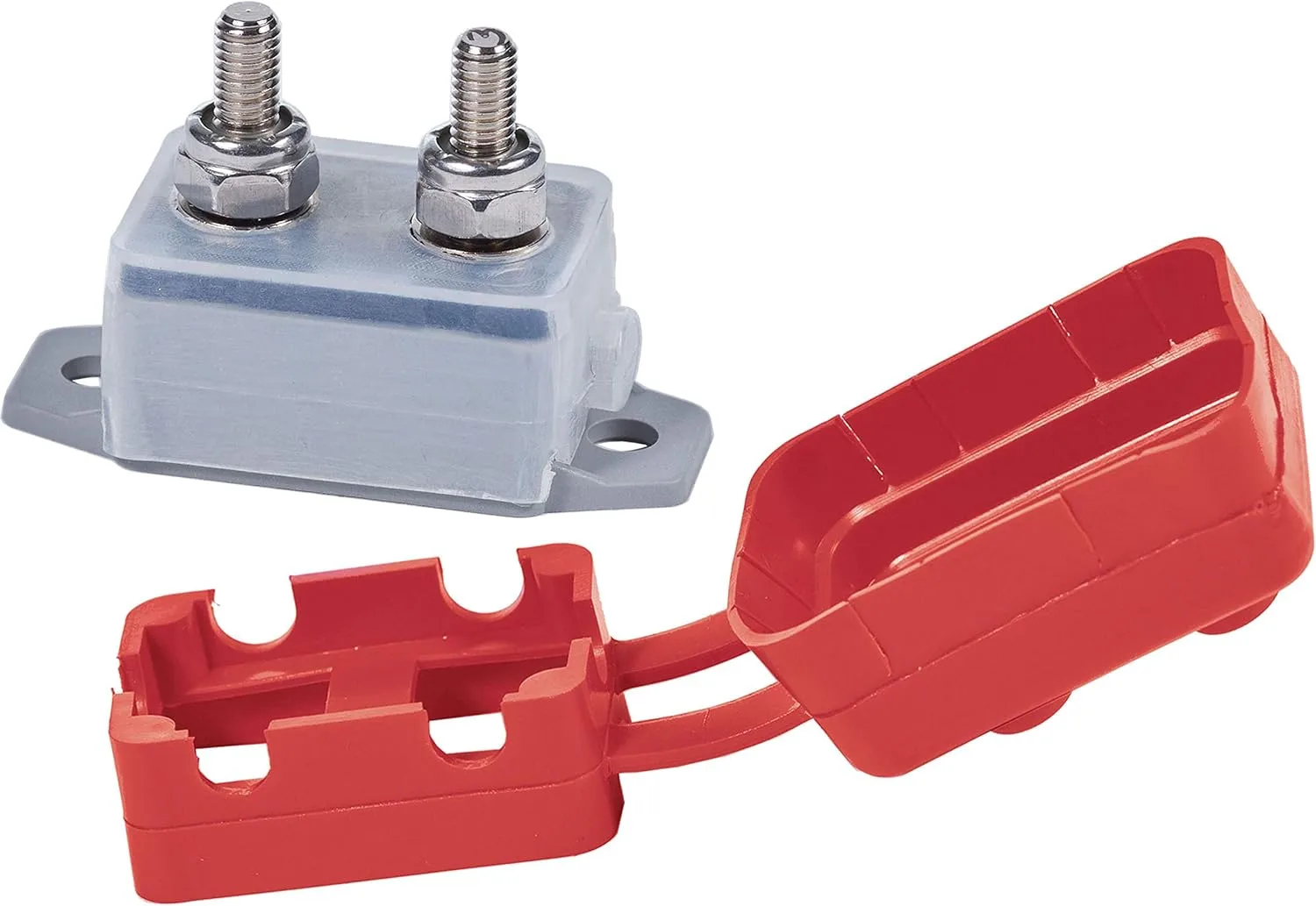

7156 Short Stop Circuit Breaker - 40A. Corrosion resistant material with IP64 water resistant boot. Push to reset only. Interrupt Capacity: 2,500A @ 28VDC. Red insulating boot included in retail package. Specifications: Amperage: 40A. Maximum Voltage: 28V DC. Interrupt Capacity: 2500A @ 28V DC. Minimum Operating Temperature: -10º C. Maximum Operating Temperature: 60º C. Screw Terminal Torque: 24 in-lb (2.71 Nm). Terminal Stud: #10-32". Note: Proposition 65 warnings may apply. Additional technical & marketing details: Marine grade construction, panel mount, 2 poles, limited warranty.
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Product Details | |
| Current Rating | 40 Amps |
| Included Components | Circuit breaker |
| Model Name | Circuit Breaker Short Stop SfcMt 40A |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Number Of Poles | 2 |
| Style | 40 Amp |
| Voltage | 28 Volts |
| Warranty Description | LIMITED WARRANTY |
| Sizing & Dimensions | |
| Height | 4.44 inches |
| Length | 1.25 inches |

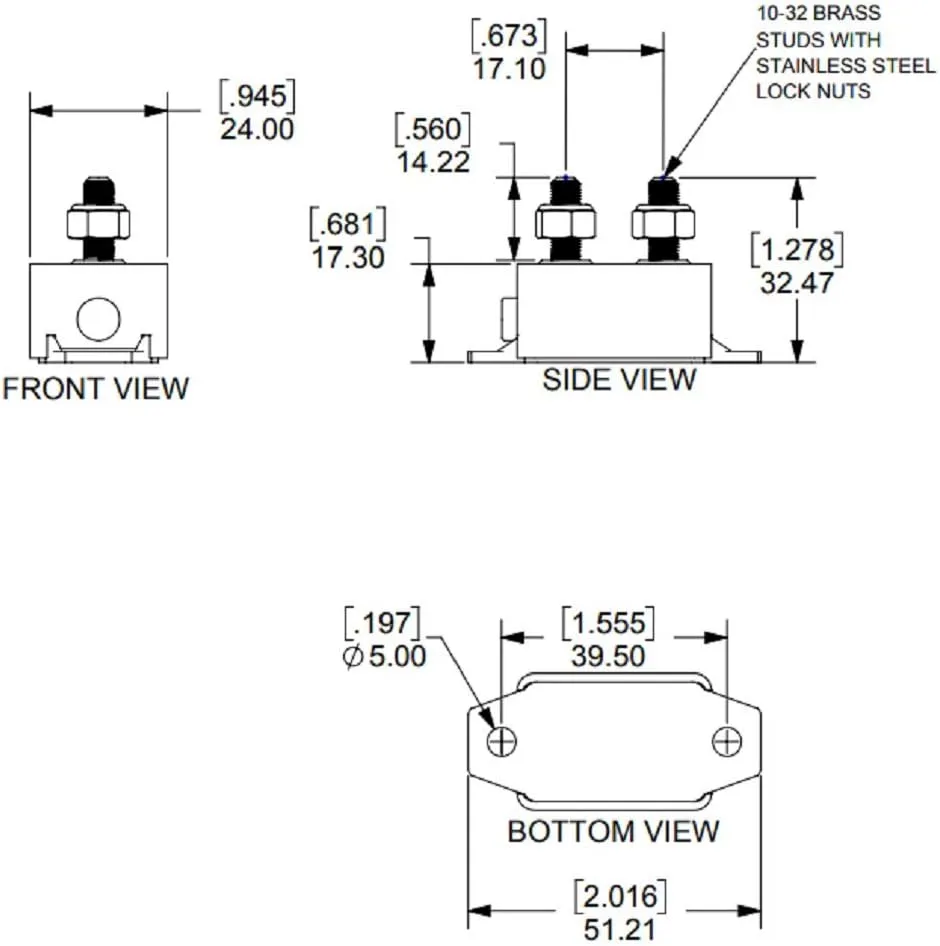

| Product Dimensions | 1.25 x 2.69 x 4.44 inches |
| Size | One Size |
| Weight | 0.96 ounces |
| Width | 2.69 inches |
| Technical Specifications | |
| Amperage | 40a |
| Interrupt Capacity | 2500A @ 28V DC |
