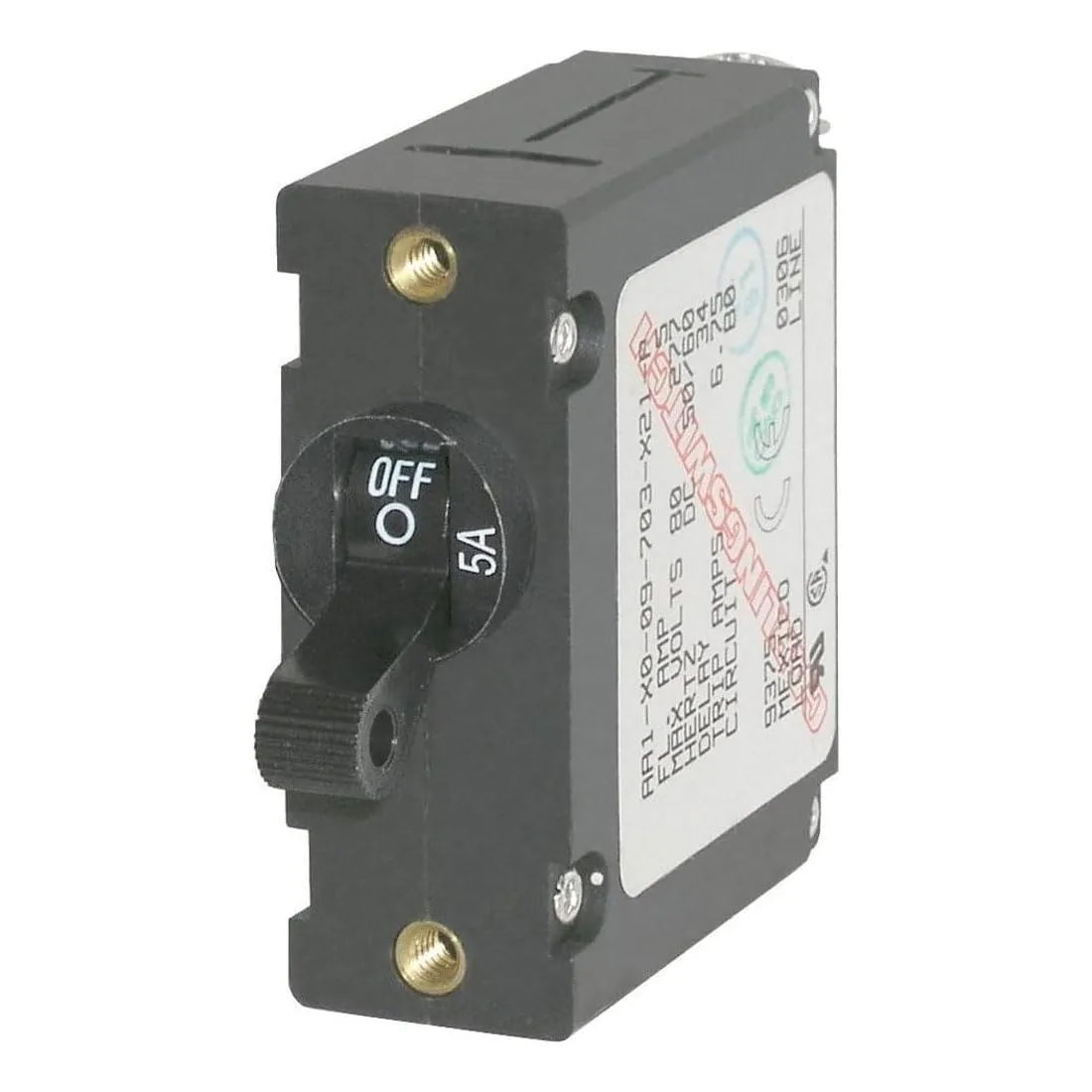

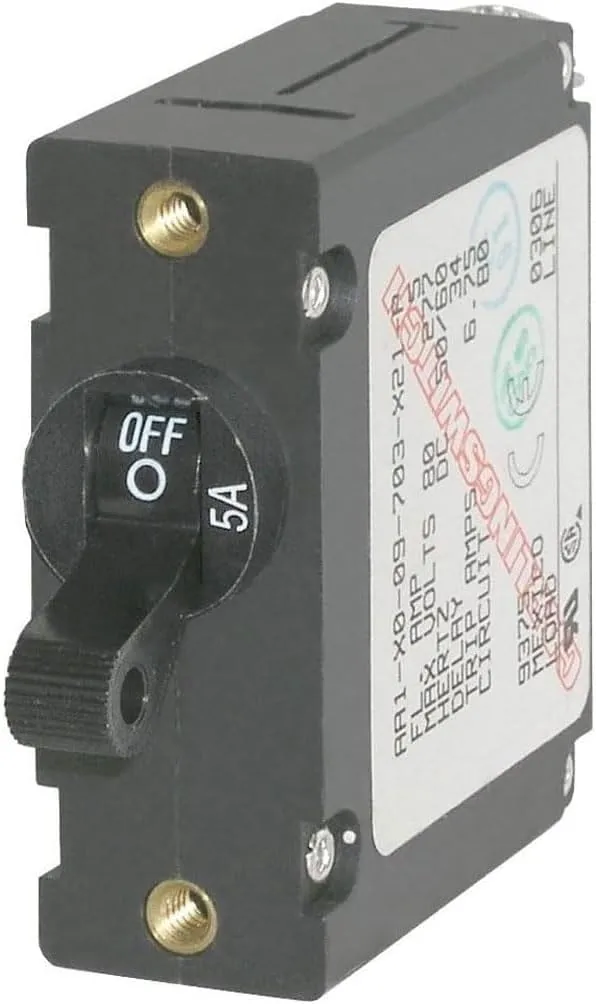

Blue Sea Systems 7200 A-Series Black Toggle Circuit Breaker, Single Pole 5A
Customize
Blue Sea 7200 AC / DC Single Pole Magnetic World Circuit Breaker - 5 Amp. The World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada. PN: 7200 Color: Black Amperage: 5 Amp Delay: Standard. Features: The industry standard circuit breaker for Blue Sea Systems electrical panels. Combines switching and circuit protection into a single device. Single pole Quick Trip models are designed specifically for electronics protection. "Trip Free" design cannot be held "ON" during fault current condition. Specifications: Circuit Breaker Type: Magnetic Hydraulic - Trip Free. Maximum Voltage: 277 Volts AC / 65 Volts DC. Rated Switch Cycles: 10,000@rated amperage and voltage. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Combines switching and circuit protection into a single device
- Package Weight: 0.5 pounds
- Country of Origin : United States
- Package Dimensions: 3.302 H x 13.97 L x 8.89 W (centimetres)
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Circuit Breaker Type | Standard |
| Global Trade Identification Number | 00632085072001 |
| Item model number | 7200 |
| Model | CIRCUIT BREAKER AA1 5A BK |
| Mounting Type | Panel Mount |
| National Stock Number | 5925-01-623-0696 |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 1 inches |
| Weight | 0.8 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Circuit Breaker Type | Standard |
| Current Rating | 5 Amps |
| Is Discontinued By Manufacturer | No |
| Number Of Poles | 1 |
