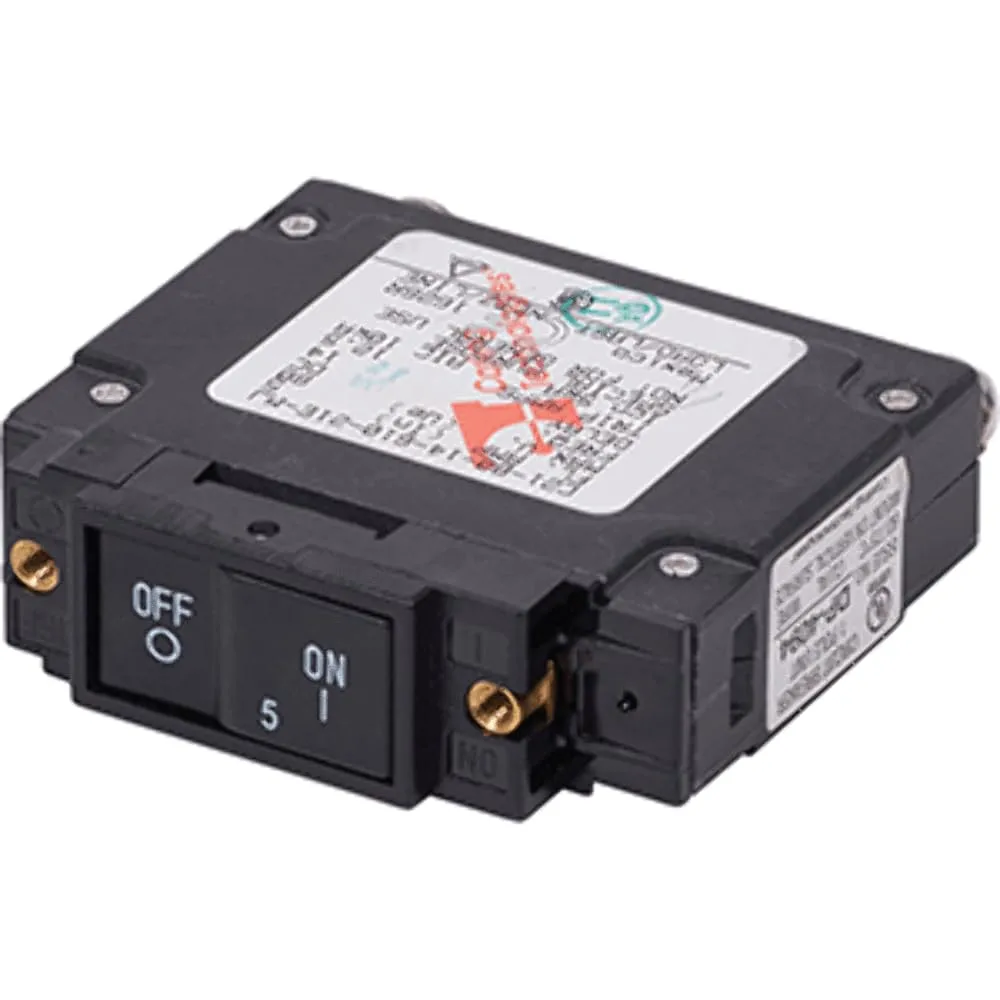

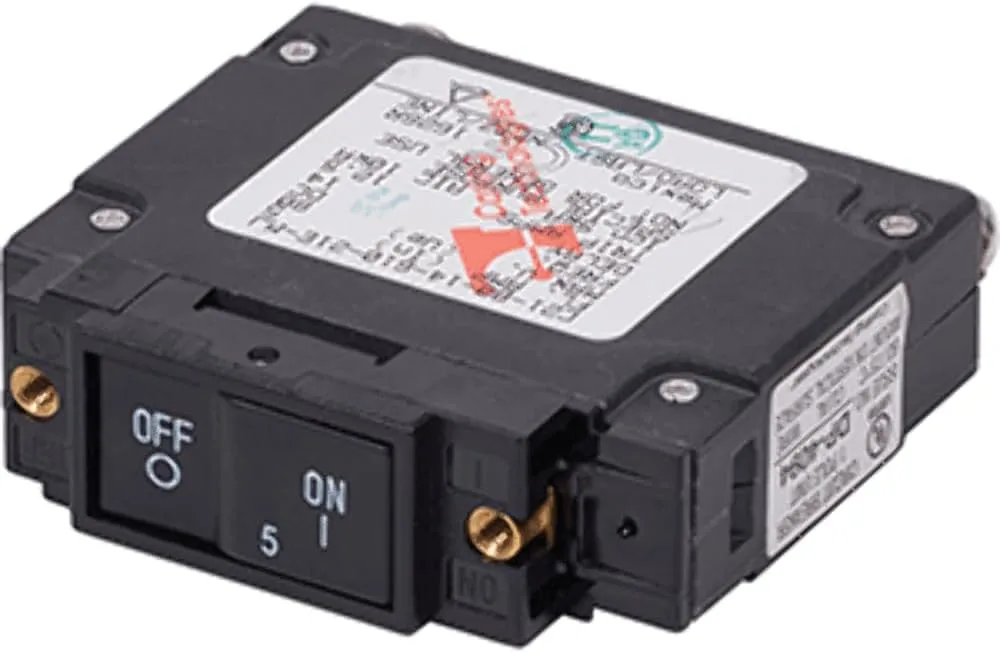

7440 UL-489 Circuit Breaker - 5A Flat Rocker. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications: Amperage: 5A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 80V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type: #10-32 Screw Tin-Plated Brass Interrupt Capacity: 10000A. 5A DC Flat Rocker UL 489 Circuit Breaker. Interrupting Capacity: 10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C. Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb. Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Lifetime warranty.
| Materials & Construction | |
| Color | Beige |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Amperage | 5a |
| Included Components | Circuit Breaker |
| Model Name | UL-489 Circuit Breakers |
| Model Year | 2019 |
| Mounting Type | Screw Mount |
| Number Of Poles | 1 |
| Sizing & Dimensions | |
| Height | 1.73 inches |
| Length | 4.41 inches |
| Size | 5 Amp DC |
| Weight | 0.01 ounces |
| Width | 2.76 inches |
| Technical Specifications | |
| Circuit Breaker Type | Magnetic HydraulicTrip free |
| Warranty Description | Lifetime |
