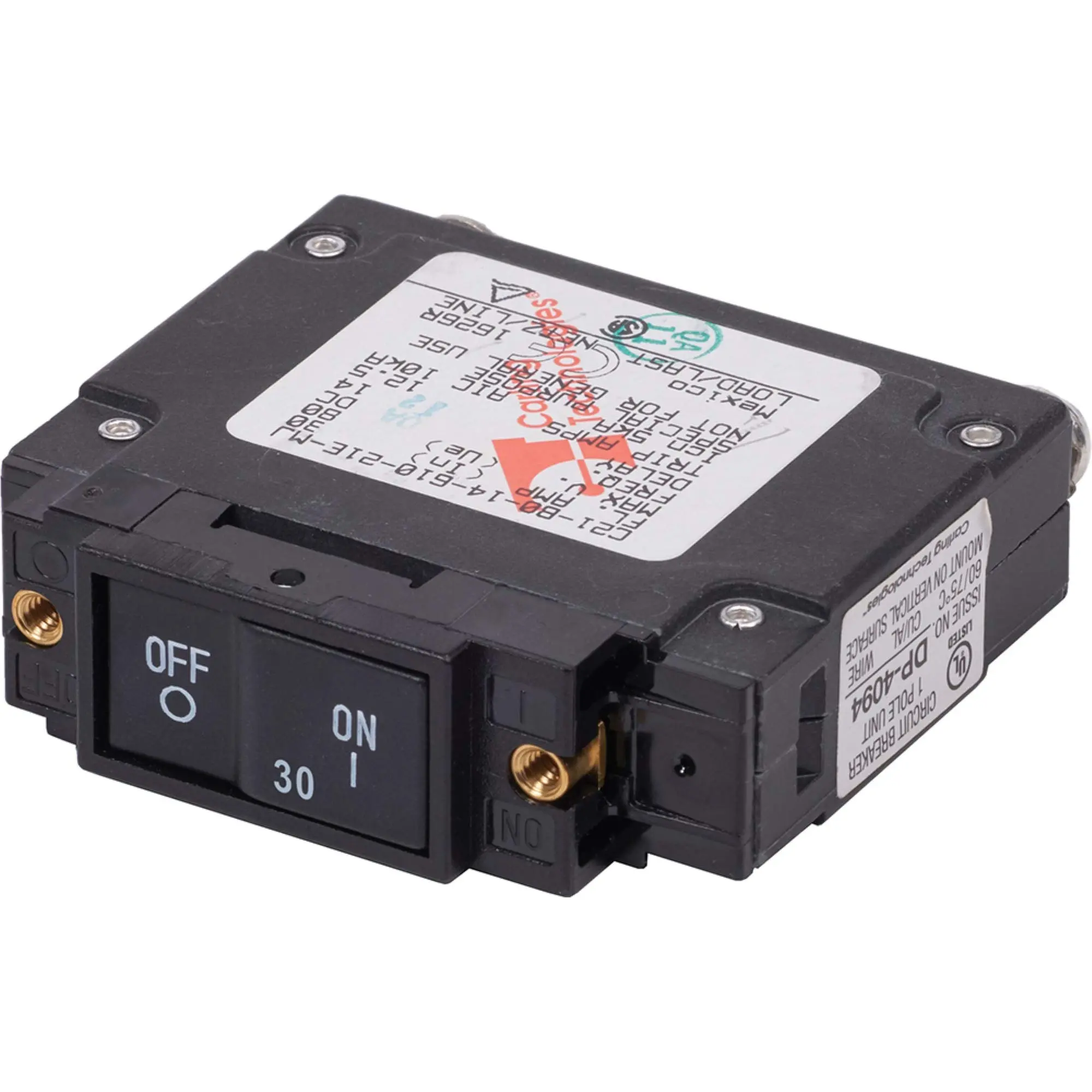

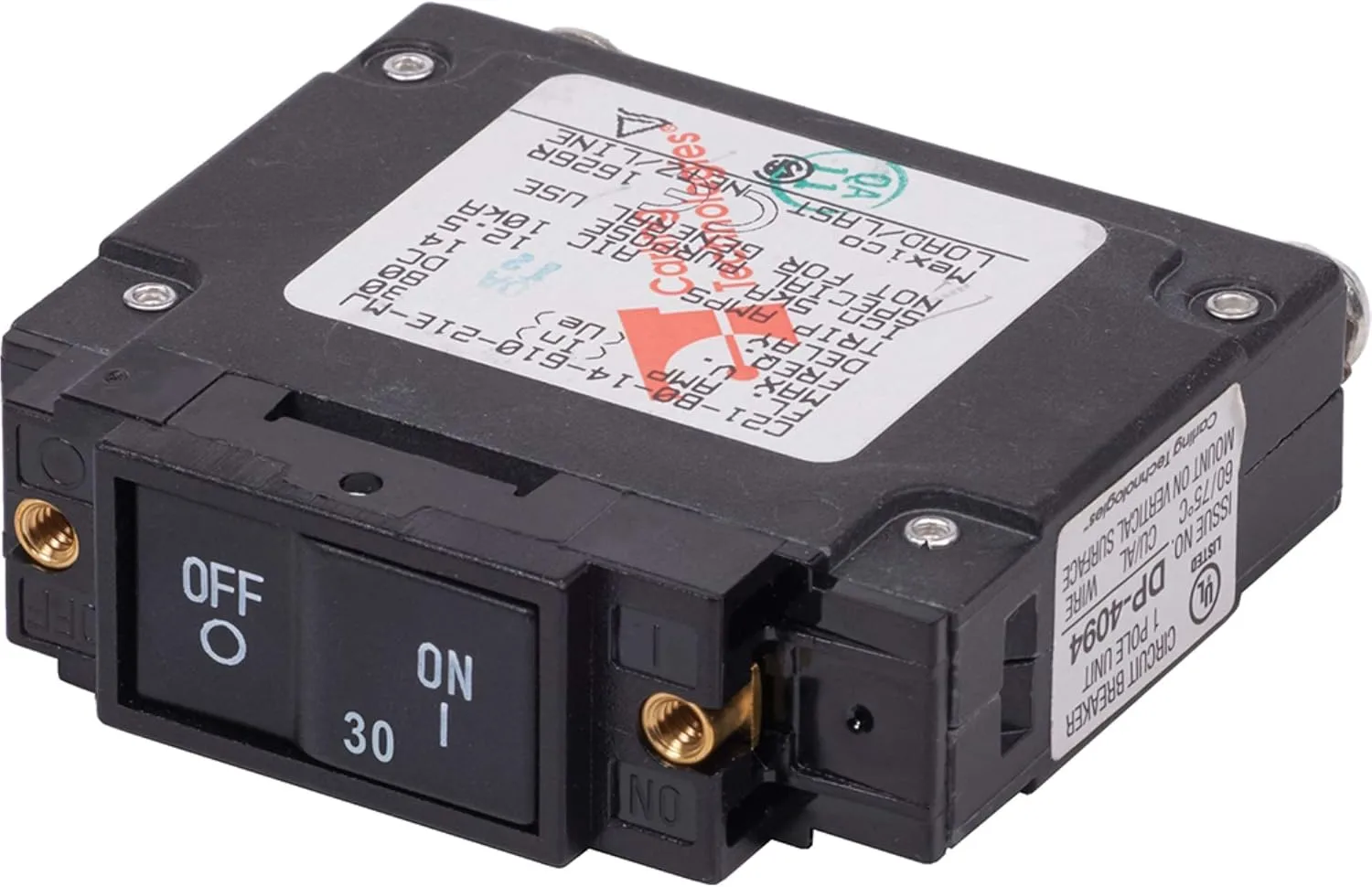

Blue Sea Systems 7444 Circuit Breaker C-Series Flat Rocker 30A DC UL489
Customize
7444 UL-489 Circuit Breaker - 30A Flat Rocker Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications: Amperage: 30A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 80V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type: #10-32 Screw Tin-Plated Brass Interrupt Capacity: 10000A, Amperage: 30a 30A DC Flat Rocker UL 489 Circuit Breaker.Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C.Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb.Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb.Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb. Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb. Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C. 30A DC Flat Rocker UL 489 Circuit Breaker.
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
- Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C
- 30A DC Flat Rocker UL 489 Circuit Breaker
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Circuit Breaker |
| Model Name | UL-489 Circuit Breakers |
| Model Year | 2019 |
| Number of Items | 1 |
| UPC | 632085074449 |
| Warranty Description | Lifetime |
| Sizing & Dimensions | |
| Height | 1.69 inches |
| Item Package Dimensions L x W x H | 4.69 x 4.49 x 1.69 inches |
| Length | 4.69 inches |
| Weight | 4.23 ounces |
| Width | 4.49 inches |
| Technical Specifications | |
| Circuit Breaker Type | Magnetic HydraulicTrip free |
| Current Rating | 30 Amps |
| Mounting Type | Screw Mount |
| Number Of Poles | 3 |
| Size | 30 Amp DC |
