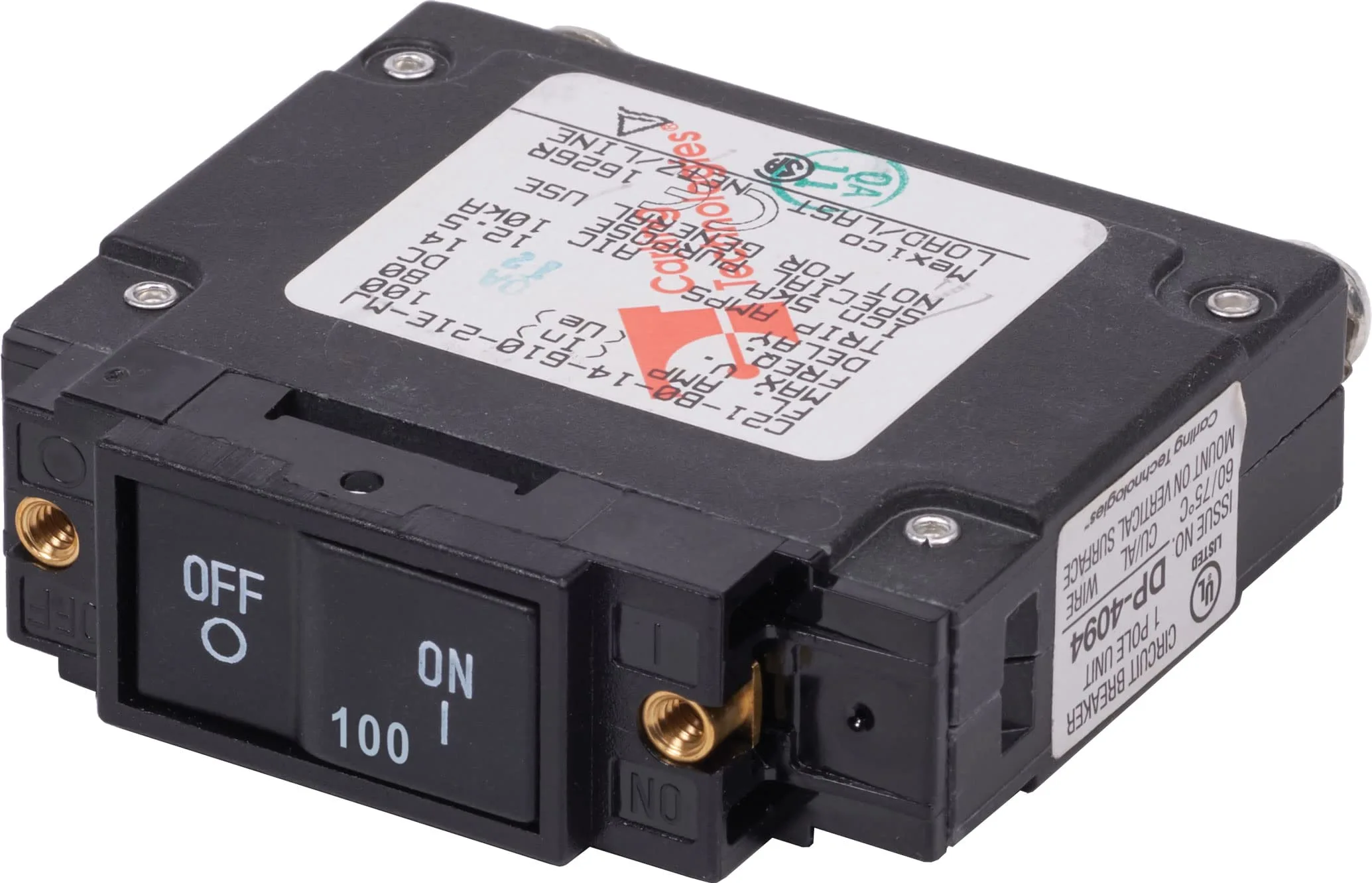

Blue Sea Systems 7446 Circuit Breaker C-Series Flat Rocker 100A DC UL489, 7446 , Black , 100 Amp DC
Customize
7446 UL-489 Circuit Breaker - 100A Flat Rocker. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications: Amperage: 100A DC; Actuator Style: Flat Rocker; Poles: 1; Maximum Voltage: 80V DC; Circuit Breaker Type: Magnetic Hydraulic - Trip Free; Terminal Type: #10-32 Screw Tin-Plated Brass; Interrupt Capacity: 10000A. From marketplace data: 100A DC Flat Rocker UL 489 Circuit Breaker. Interrupting Capacity: 10,000A. Voltage Max. Operating: 80V DC. Temperature Operating: -40 degrees C to 85 degrees C. Terminal: 1/4"-20 Stud, Terminal Torque: 30-35 in-lb. Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb. Item Weight ~0.3 pounds. Item package dimensions (L x W x H): 5.43 x 2.72 x 1.65 inches. Lifetime warranty.
- 100A DC Flat Rocker UL 489 Circuit Breaker
- Interrupting Capacity:10,000A, Voltage Max. Operating: 80V DC, Temperature Operating: -40 degrees C to 85 degrees C
- Terminal: 1/4"-20 Stud, Terminal Torque: 30-35 in-lb
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Product Details | |
| Amperage | 100a |
| Circuit Breaker Type | Standard |
| Current Rating | 100 Amps |
| Included Components | Circuit Breaker |
| Model Name | UL-489 Circuit Breakers |
| Model Year | 2019 |
| Mounting Type | Screw Mount |
| Number of Items | 1 |
| Number Of Poles | 2 |
| Size | 100 Amp DC |
| Warranty | Lifetime |
| Sizing & Dimensions | |
| Product Weight | 0.3 Pounds |
| Size | 100 Amp DC |
| Weight | 4.8 ounces |
| Technical Specifications | |
| Included Components | Circuit Breaker |
| UPC | 632085074463 |
| Warranty Description | Lifetime |
