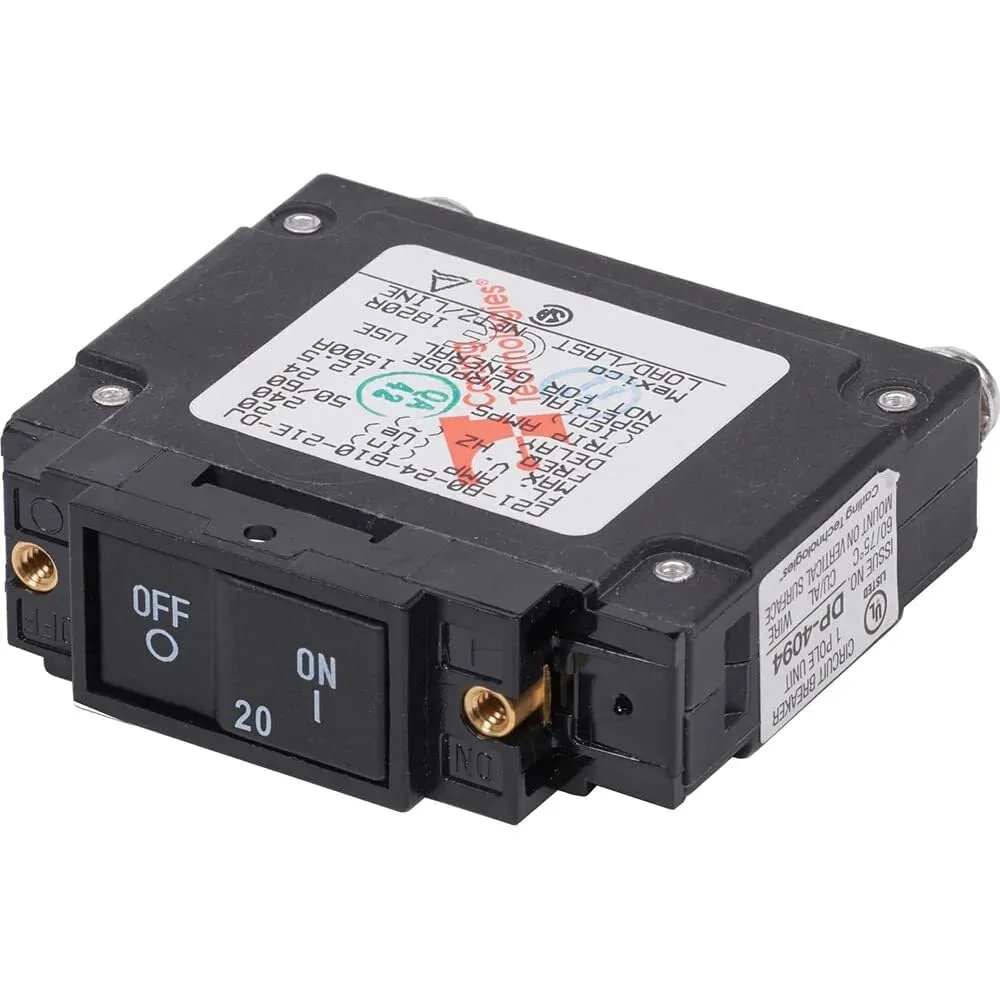

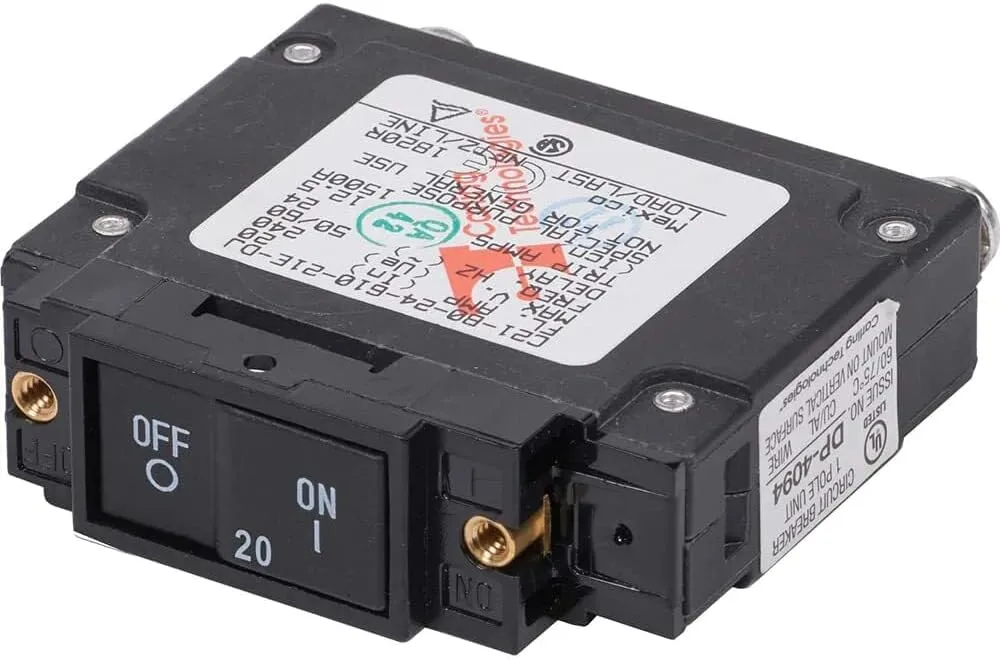

Blue Sea Systems 7457 Circuit Breaker C-Series Flat Rocker 20A AC UL489
Customize
7457 UL-489 Circuit Breaker - 20A Flat Rocker Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications: Amperage: 20A AC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type: #10-32 Screw Tin-Plated Brass Interrupt Capacity: 5000A, Amperage: 20a 20A AC Flat Rocker UL 489 Circuit Breaker. Interrupting Capacity: 5,000A, Voltage Max. Operating: 240V AC, Temperature Operating: -40 degrees C to 85 degrees C. Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb. Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
- Interrupting Capacity: 5,000A, Voltage Max. Operating: 240V AC, Temperature Operating: -40 degrees C to 85 degrees C
- 20A AC Flat Rocker UL 489 Circuit Breaker
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Circuit Breaker Type | Standard |
| Current Rating | 20 Amps |
| Included Components | Circuit Breaker |
| Model Name | UL-489 Circuit Breakers |
| Model Year | 2019 |
| Mounting Type | DIN Rail Mount |
| Number of Items | 1 |
| Number Of Poles | 1 |
| Size | 20 Amp AC |
| Warranty Description | Lifetime |
| Sizing & Dimensions | |
| Size | 20 Amp AC |
| Weight | 3.99 ounces |
| Technical Specifications | |
| Warranty | Lifetime |
