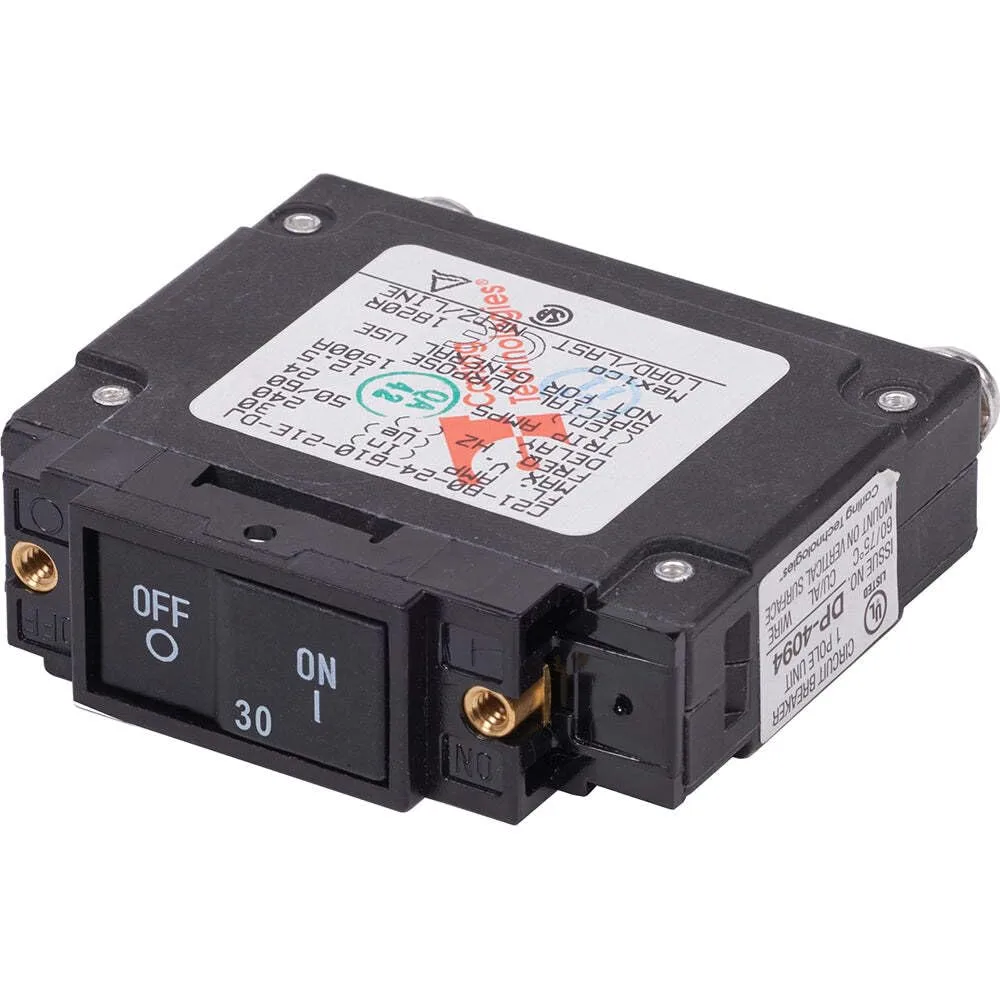

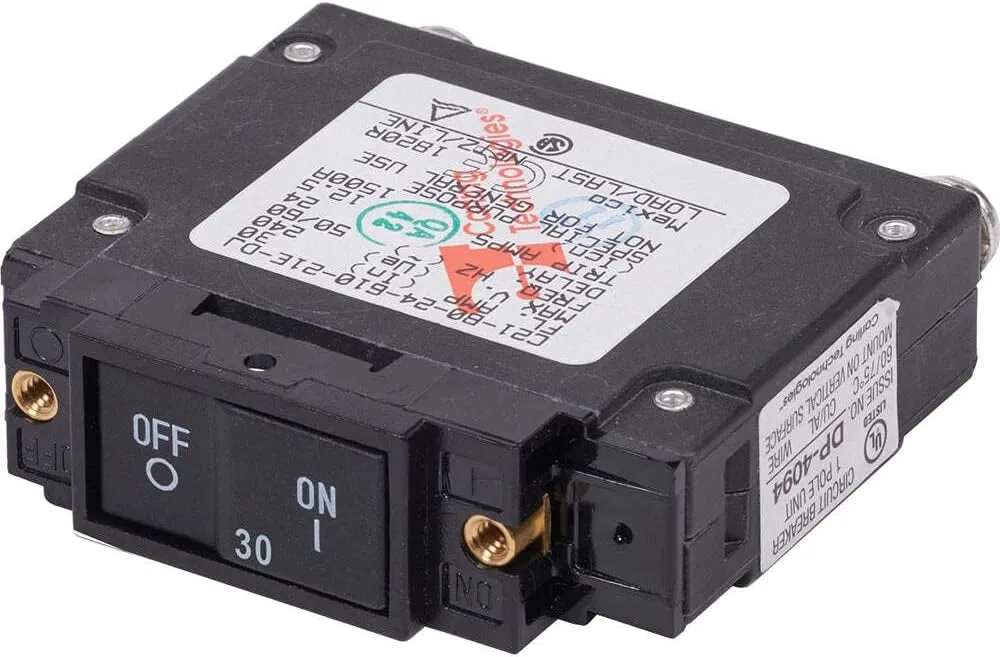

Blue Sea Systems 7458 Circuit Breaker C-Series Flat Rocker 30A AC UL489 30 Amp AC Black
Customize
7458 UL-489 Circuit Breaker - 30A Flat Rocker Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications: Amperage: 30A AC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type: #10-32 Screw Tin-Plated Brass Interrupt Capacity: 5000A, Amperage: 30a 30A AC Flat Rocker UL 489 Circuit Breaker. Interrupting Capacity: 5,000A, Voltage Max. Operating: 240V AC, Temperature Operating: -40 degrees C to 85 degrees C. Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb. Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
- Interrupting Capacity: 5,000A, Voltage Max. Operating: 240V AC, Temperature Operating: -40 degrees C to 85 degrees C
- 30A AC Flat Rocker UL 489 Circuit Breaker
Specifications:
| Product Details | |
| Batteries required | No |
| Circuit Breaker Type | Standard |
| Current Rating | 30 Amps |
| Included Components | Circuit Breaker |
| Item model number | 7458 |
| Mounting Type | Screw Mount |
| Number Of Poles | 3 |
| Warranty Description | Lifetime |
| Sizing & Dimensions | |
| Height | 1.46 inches |
| Length | 4.13 inches |
| Weight | 4.2 ounces |
| Width | 2.72 inches |
