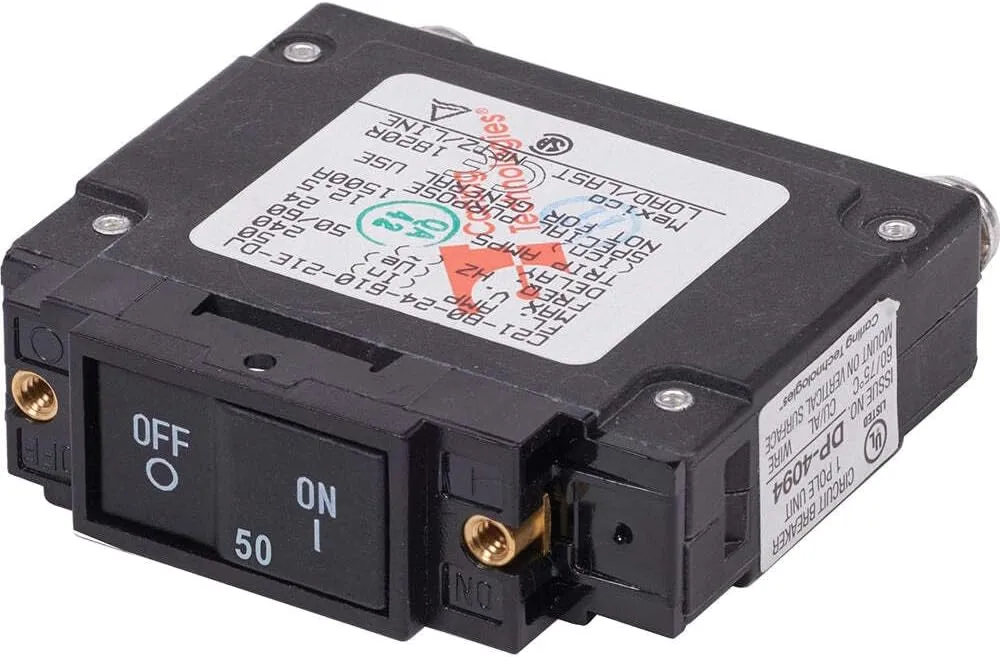

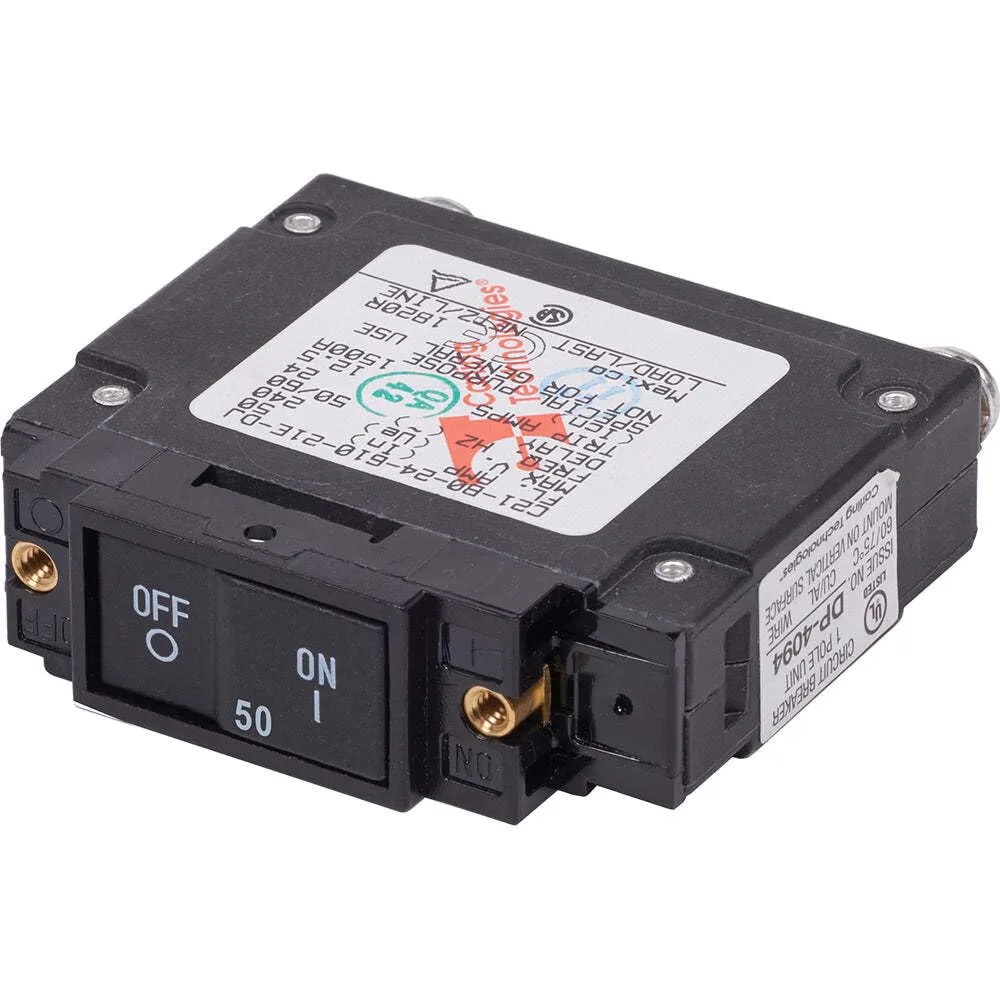

Blue Sea Systems 7459 Circuit Breaker C-Series Flat Rocker 50A AC UL489
Customize
Blue Sea 7459 UL-489 Circuit Breaker - 50A Flat Rocker. Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46). Specifications: Amperage: 50A. Actuator Style: Flat Rocker. Poles: 1 (see manufacturer data). Maximum Voltage: 240V AC. Circuit Breaker Type: Magnetic Hydraulic - Trip Free. Terminal Type: #10-32 Screw Tin-Plated Brass. Interrupt Capacity: 5000A. From manufacturer and marketplace data: 50A AC Flat Rocker UL-489 Circuit Breaker. Interrupting Capacity: 5,000A. Voltage Max. Operating: 240V AC. Temperature Operating: -40 degrees C to 85 degrees C. Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb. Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb. Included Components: Circuit Breaker. Warranty: Lifetime.
- 50A AC Flat Rocker UL 489 Circuit Breaker
- Suitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46)
- Mounting Screw: #6-32 SS, Mounting Screw Torque: 7-9 in-lb
- Terminal: #10-32 Tin-Plated Brass Screw, Terminal Torque: 15-20 in-lb
- Interrupting Capacity: 5,000A, Voltage Max. Operating: 240V AC, Temperature Operating: -40 degrees C to 85 degrees C
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Circuit Breaker Type | Standard |
| Current Rating | 50 Amps |
| Included Components | Circuit Breaker |
| Model Name | UL-489 Circuit Breakers |
| Number Of Poles | 2 |
| Voltage | 240 Volts |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 3 x 2 inches |
| Size | 50 Amp AC |
| Weight | 4 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Warranty | Lifetime |
