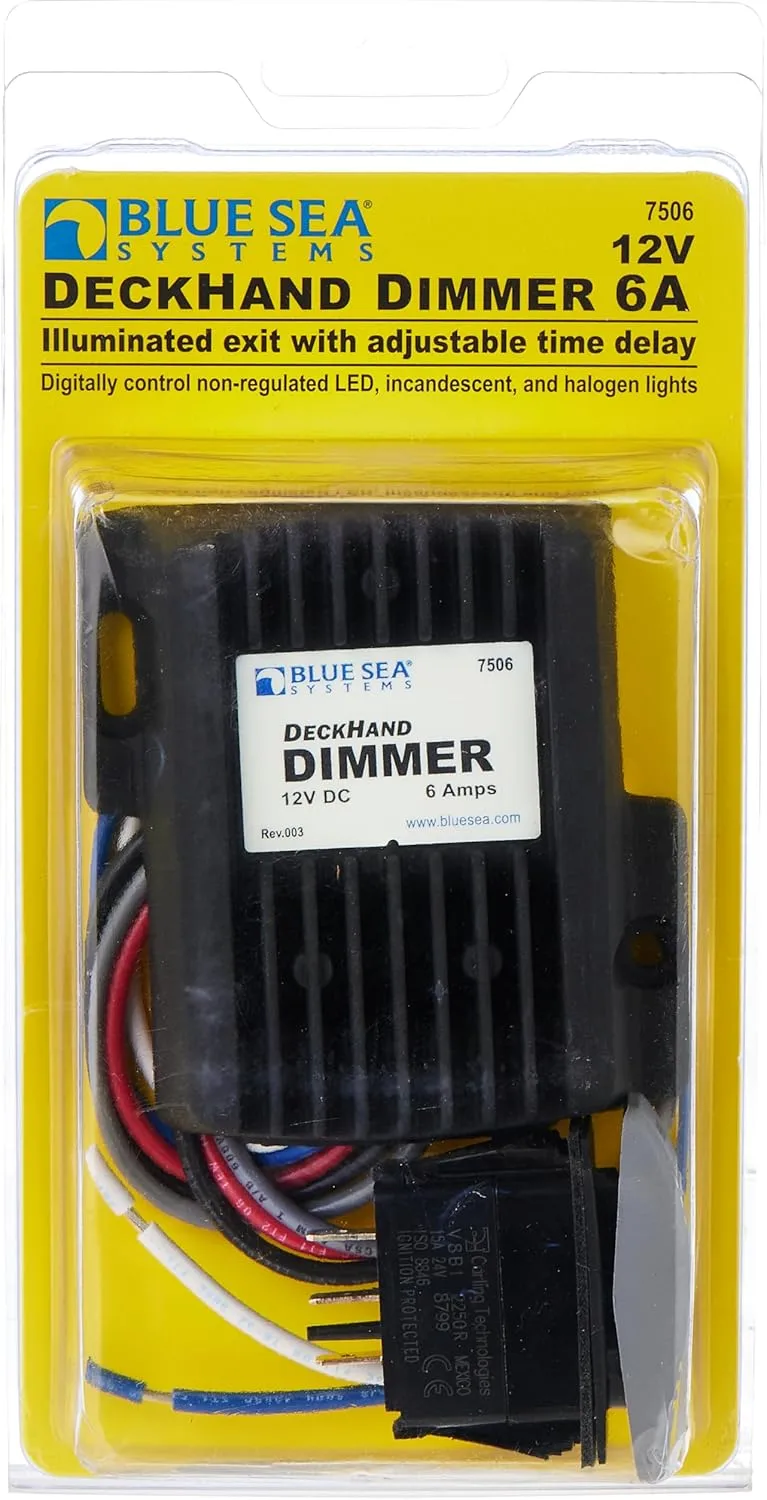

Blue Sea Systems 7506 Deckhand DIMMER Switch 6A 12V, Blue, Small
Customize

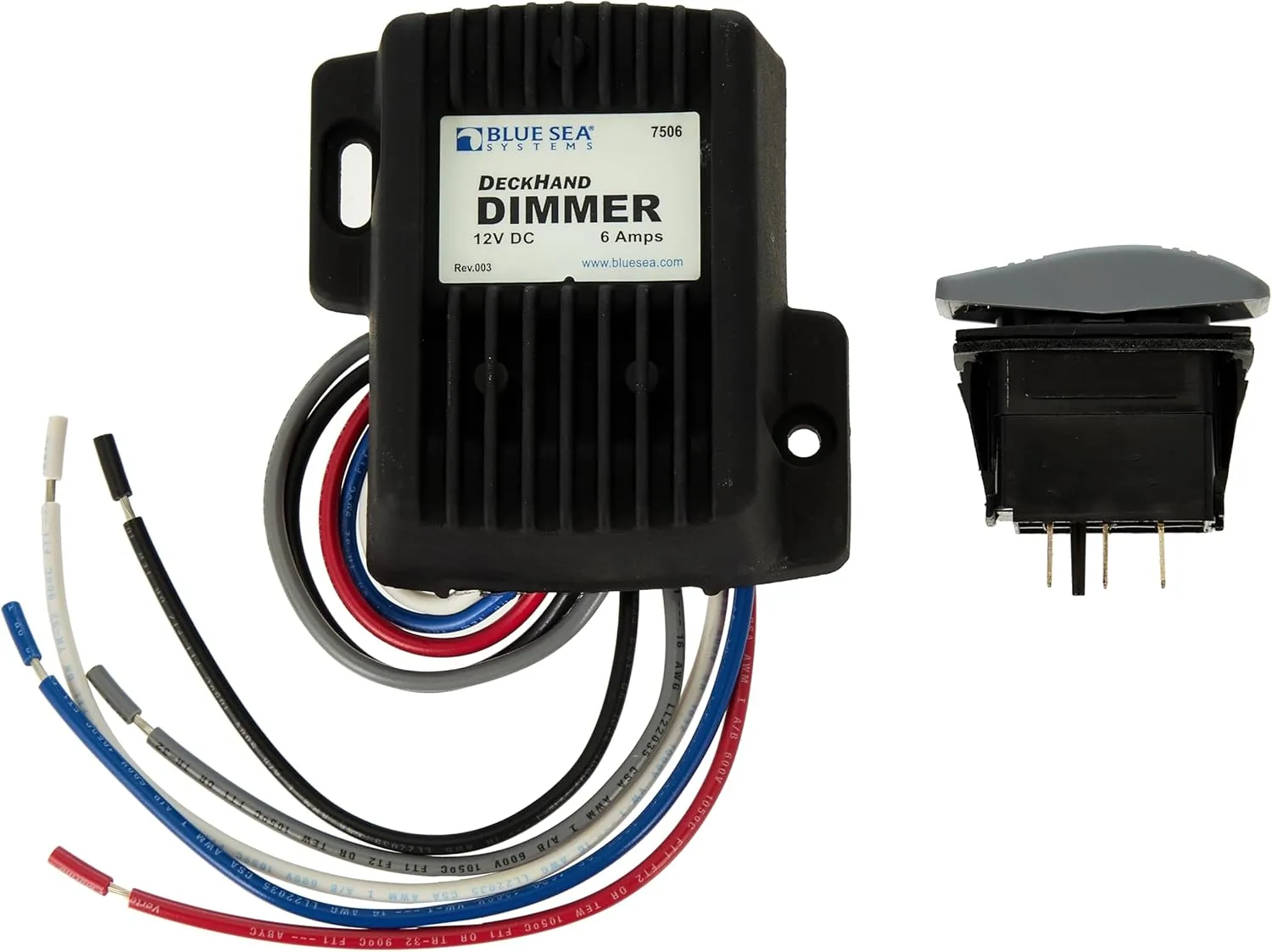

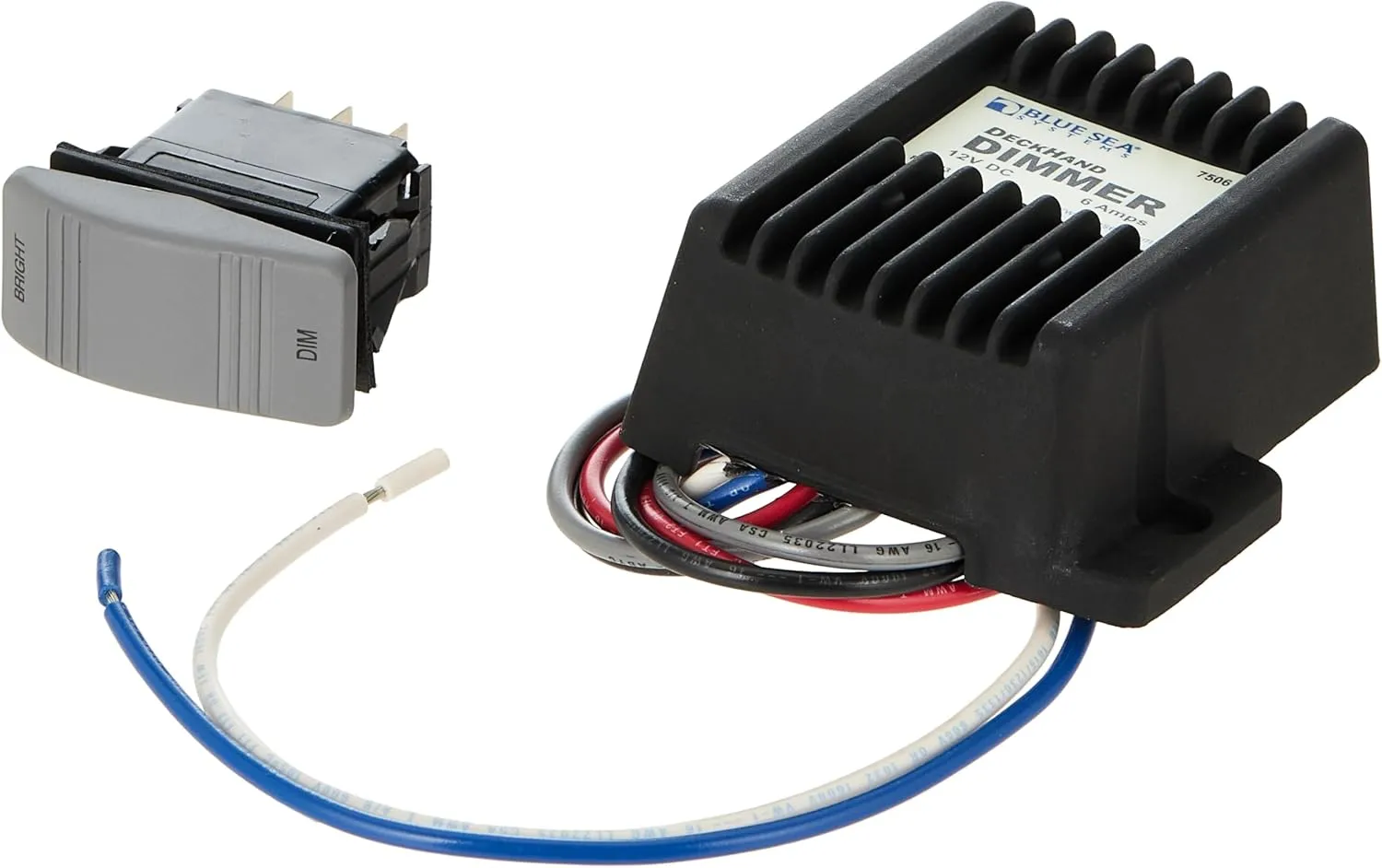

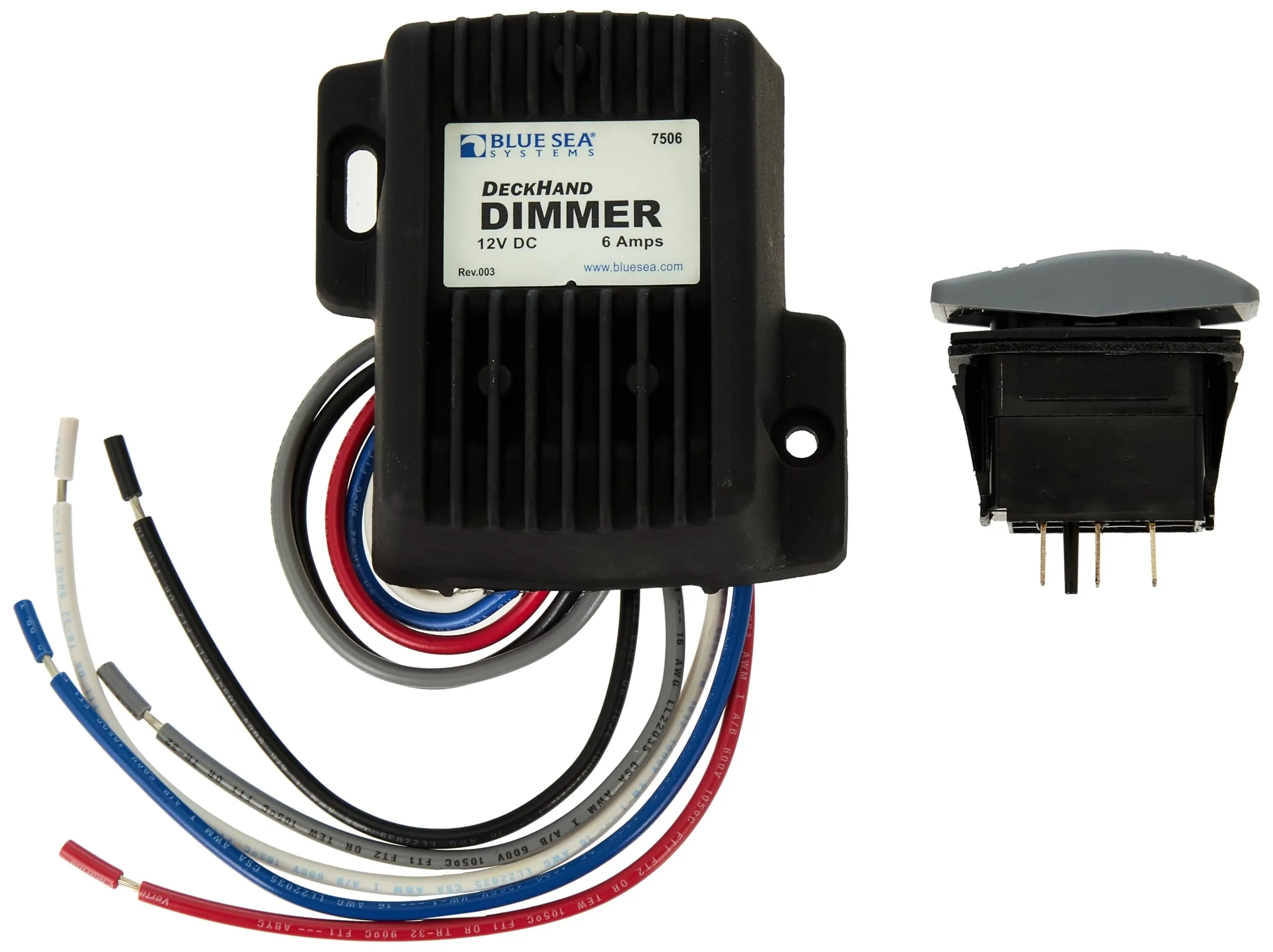

DeckHand Dimmer - 6 Amp/12V Works with all incandescent and non-regulated LED lamps Memory for last setting Illuminated exit with adjustable time delay Provides continuous voltage control from 0 to 100% of input voltage Offset mounting tabs allow dimmers to be mounted close together Retail package includes momentary (ON)-OFF-(ON) switch WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Illuminated exit with adjustable time delay Digitally controls dimming of non-regulated LEDs, incandescent and halogen lights. Memory for last setting. Digitally controls dimming of non-regulated LEDs, incandescent and halogen lights. Illuminated exit with adjustable time delay.
- Memory for last setting
- Digitally controls dimming of non-regulated LEDs, incandescent and halogen lights
- Illuminated exit with adjustable time delay
Specifications:
| Materials & Construction | |
| Color | Blue |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Actuator Type | Push Button |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Din |
| Contact Material | Metal |
| Contact Type | Normally Open |
| Control Method | Touch |
| Country of Origin | USA |
| Current Rating | 6 Amps |
| International Protection Rating | IP54 |
| Is Discontinued By Manufacturer | No |
| Mounting Type | Deck Mount |
| Number of Items | 1 |
| Number of Positions | 1 |
| Operating Voltage | 12 Volts |
| Operation Mode | manual |
| Terminal | Screw |
| Wattage | 72 watts |
| Sizing & Dimensions | |
| Height | 1.81 inches |
| Length | 7.88 inches |
| Product Dimensions | 7.88 x 4 x 1.81 inches |
| Size | 7.88 x 4 x 1.81 inches |
| Weight | 1.6 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Connector Type | Din |
| Contact Type | Normally Open |
| Current Rating | 6 Amps |
| Mounting Type | Deck Mount |
| Operating Voltage | 12 Volts |
| Operation Mode | manual |
| Terminal | Screw |
