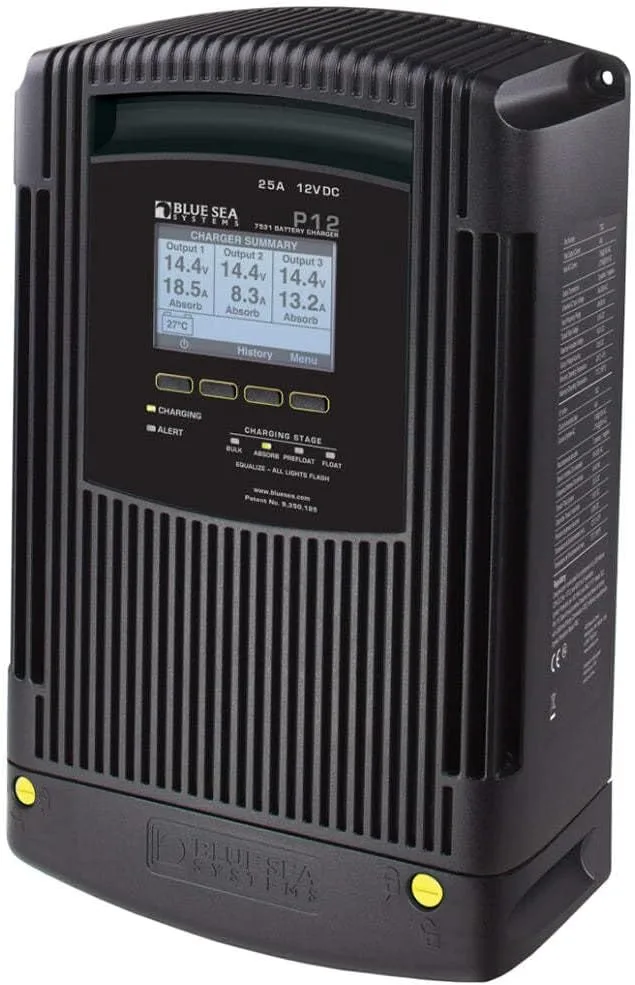

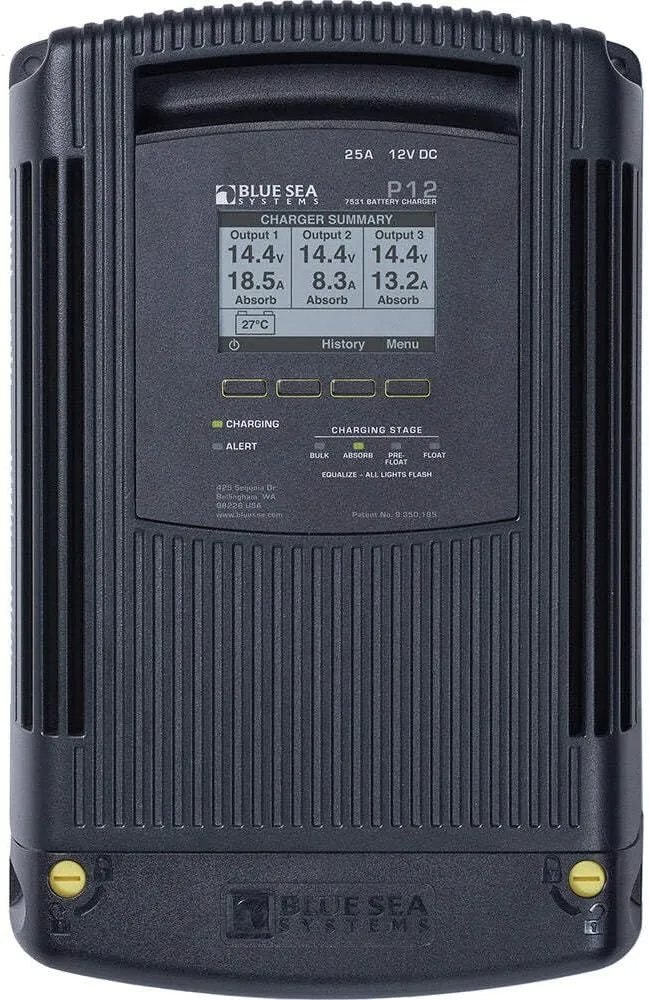

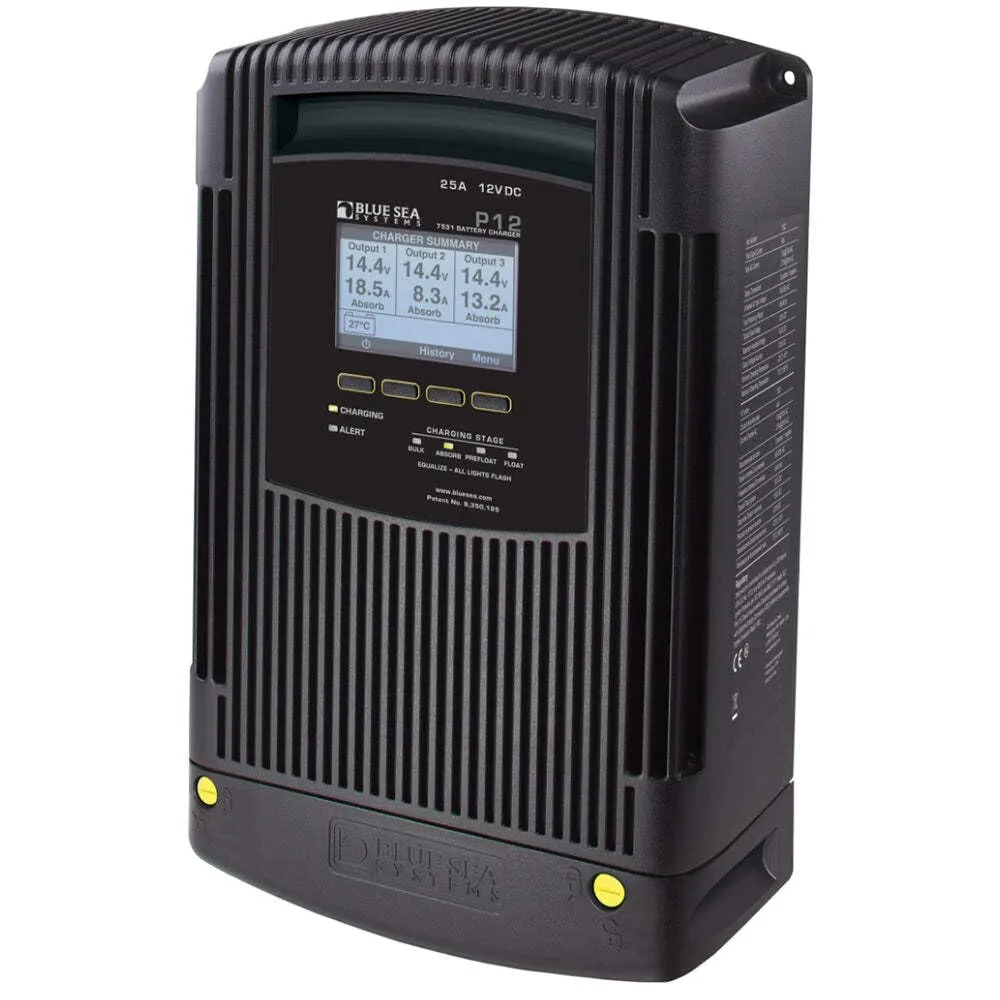

Blue Sea 7531 P12 Battery Charger - 12V DC 25A (3 Output)
Customize
P1 2 Battery Charger - 12V DC 25A Four stage, three output, dry mount design, for use in harsh environments. Features: Rugged, finned aluminum case PreFloat stage prevents over charging Power factor corrected for efficient use of AC Intuitive diagnostic screens User defined charge profiles and customizable settings Provides charging for up to three battery banks Large, bright display Multi-language: English, French, German, Italian, Spanish Charge Coordination with Blue Sea Systems Automatic Charging Relays (ACR) controls ACR state ensuring proper float stage for each battery Battery Temperature Compensation - adjusts charge voltage based on battery temperature AC over and under voltage shut down and automatic restart Over and under battery temperature protection - charger will not operate if battery temperature rises above or falls below a set value DC over voltage and reverse polarity protection Surge and short circuit protection Specifications: Total Output Current: 25A Input AC Current: 4.5A @ 100V AC / 2.25A @ 200V AC Maximum Output Voltage: 16V DC Nominal Voltage: 12V DC Ignition Protected: Yes Number of Outputs: 1 negative / 3 positive Universal AC Input Voltage: 90-265V AC AC Input Frequency: 45-65Hz Output Voltage Accuracy: 0.05V Typical Float Voltage: 13.5V DC Minimum Operating Temperature: -20° C Maximum Operating Temperature: 70° C Minimum Storage Temperature: -30° C Maximum Storage Temperature: 80° C Battery Types: AGM / Flooded Lead Acid / Gel / TPPL (Thin Plate Pure Lead) Recommended for Battery Bank Sizes: 330Ah Maximum / 60Ah Minimum Warranty: 5 Year Height: 13.03" (330.96 mm) Width: 8.46" (214.88 mm) Depth: 3.66" (92.96 mm) Weight: 13.00lb (5.9 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Blue Sea Systems stands behind its products for as long as you own them. Blue Sea Systems will replace or issue a credit for any of its products found to be defective in materials or manufacture. P12 battery chargers and P12 remote displays are warranted for a period of five years from the date of first purchase. Digital meters and vessel system monitors are warranted for a period of three years from the date of first purchase. No compensation will be allowed for products not returned to Blue Sea Systems for analysis, nor will compensation be made for labour required to replace any defective product. Please contact customer service for an RMA number prior to shipping any product back to Blue Sea Systems.
- Technical support by officers, engineers, and technical Staff.
- Guaranteed Satisfaction with our products
- Quality products engineered for the harsh marine environment and built to last.
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Finned aluminum |
| Outer Material | Finned aluminum |
| Product Details | |
| Batteries | 1 Unknown batteries required. |
| Charger Input - Voltage | 120/240v |
| Charger Output - Amps | 25a |
| Charger Output Voltage | 12v |
| Charging Banks | 3 |
| Item model number | 7531 |
| Output Voltage | 12 Volts (DC) |
| Specification Met | Yes |
| Sizing & Dimensions | |
| Height | 5.94 inches |
| Length | 15.59 inches |
| Product Dimensions | 15.59 x 11.37 x 5.94 inches |
| Weight | 12 pounds |
| Width | 11.37 inches |
| Technical Specifications | |
| AC Input Frequency | 45-65Hz |
| Ignition Protected | Yes |
| Input AC Current | 4.5A @ 100V AC / 2.25A @ 200V AC |
| Maximum Output Voltage | 16V DC |
| Nominal Voltage | 12V DC |
| Output Voltage Accuracy | 0.05V |
| Total Output Current | 25A |
| Typical Float Voltage | 13.5V DC |
| Universal AC Input Voltage | 90-265V AC |
| Warranty | 5 Year |
