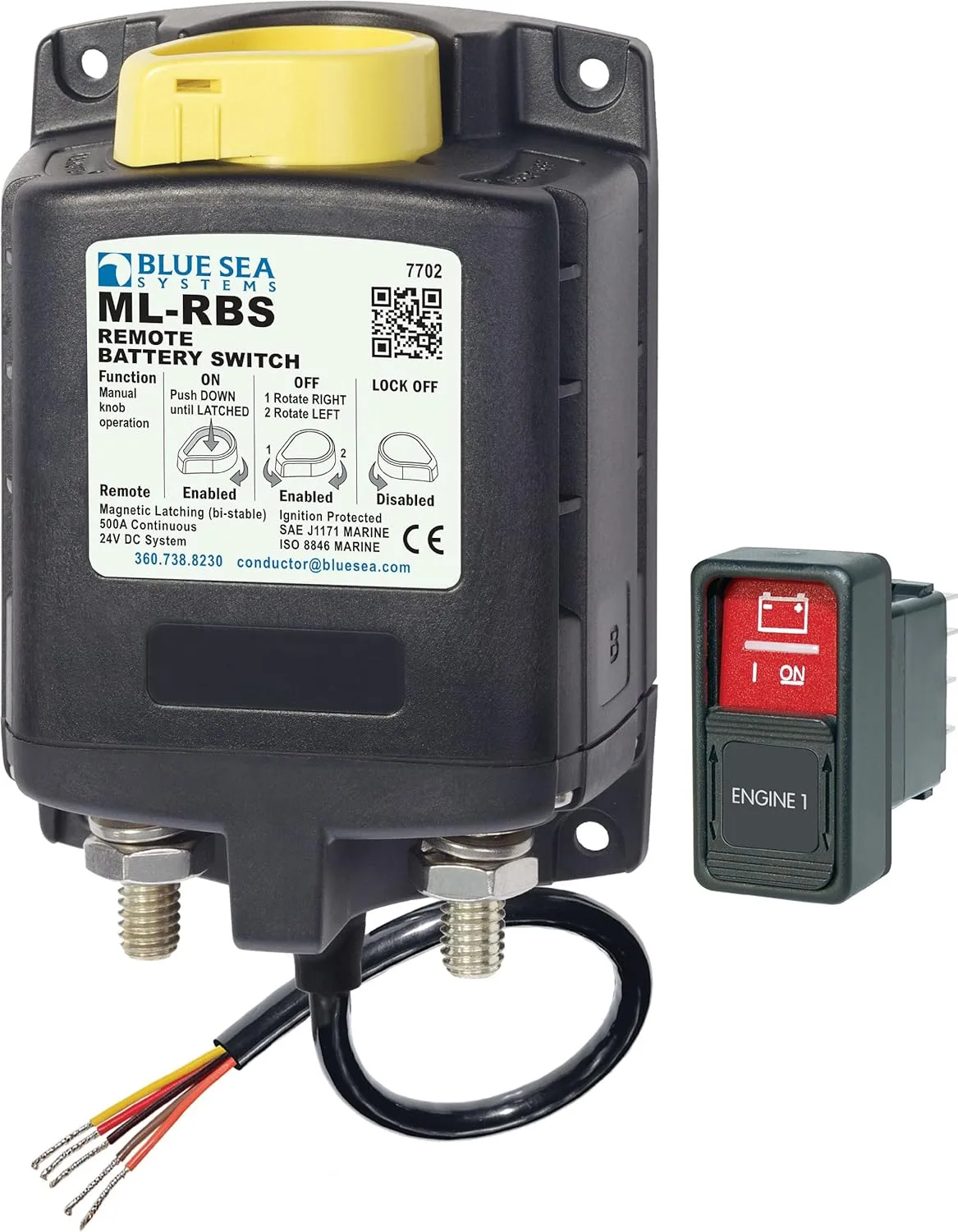

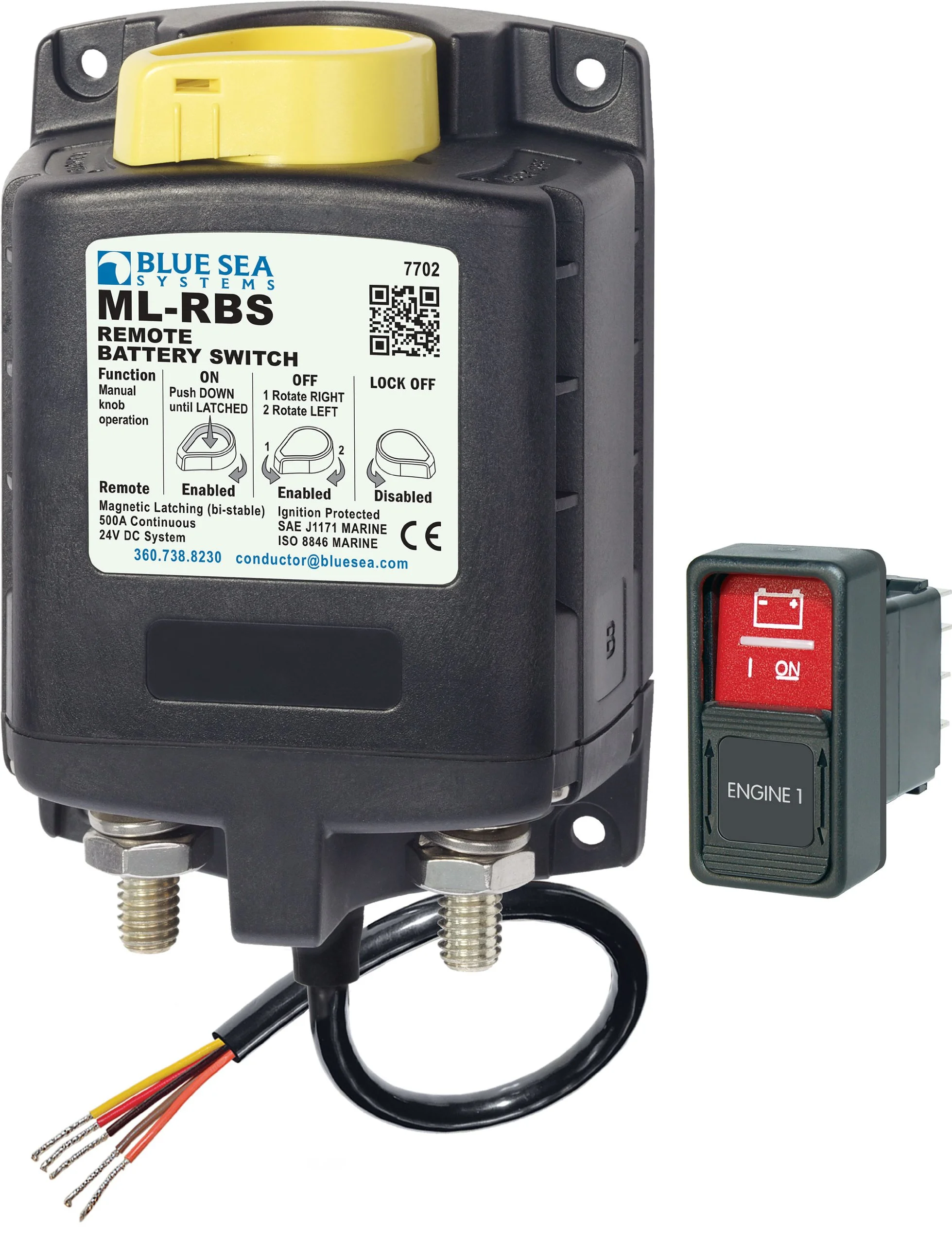

Blue Sea Systems 7702 ML-RBS 24V DC 500A Remote Battery Switch with Manual Control, Beige
Customize

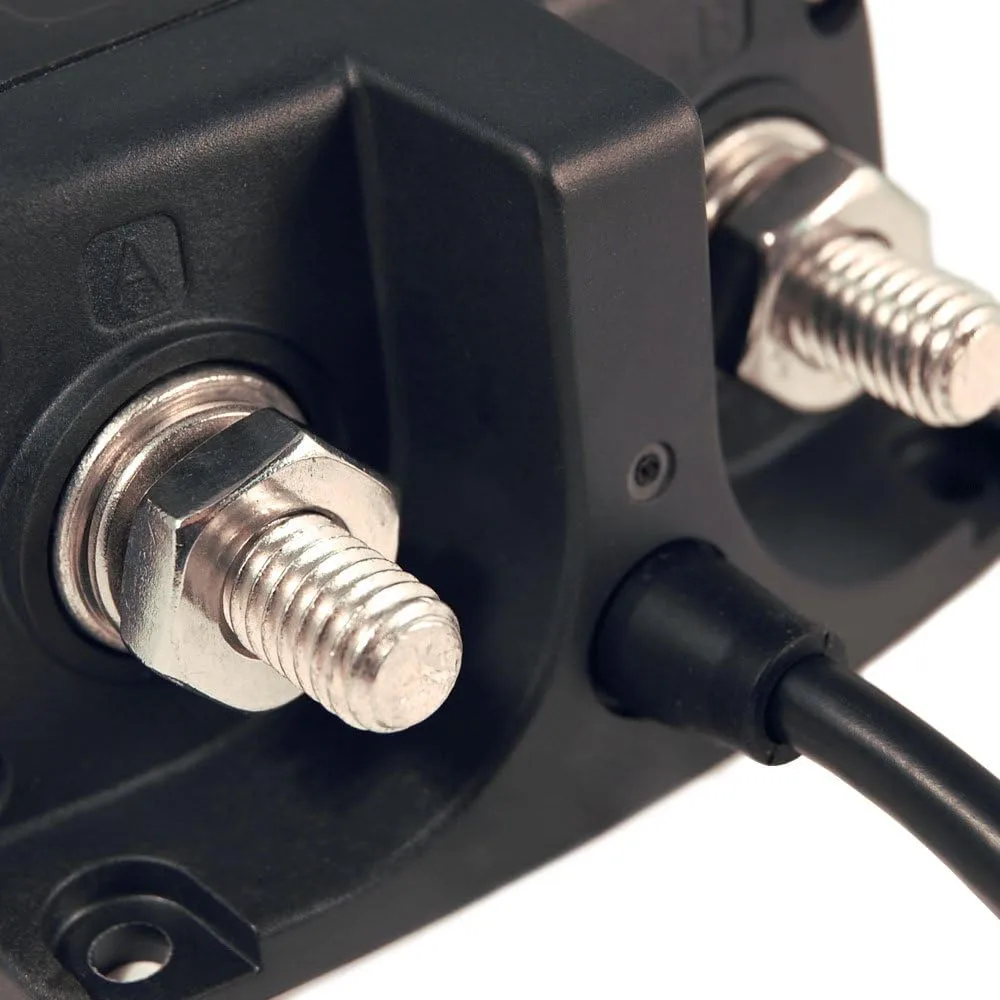

Blue Sea 7702 ML-Series Remote Battery Switch w/Manual Control 24V DC. 7702 Manual Control: Yes. Coil Voltage: 24V DC. 500 Ampere continuous rating for use as a remote battery switch for inboard gasoline or diesel engines, reducing long cable runs. Magnetic latch only draws current when changing state of switch, drawing no current in "ON" or "OFF" state. Silver alloy contacts provides high reliability for switching live loads. Optional manual switch provides an added level of safety allowing control with or without power, and offering lockout capability for servicing. 3/8" copper studs, using Blue Sea Systems superior one piece technology, suitable for 300 Amperes continuous rating and large cable connections. LED output to remotely indicate switch state - requires optional LED. Manual override knob provides LOCKED OFF capability for servicing. Remotely control power to engines and electronic devices.
- LED output to remotely indicate switch state - requires optional LED

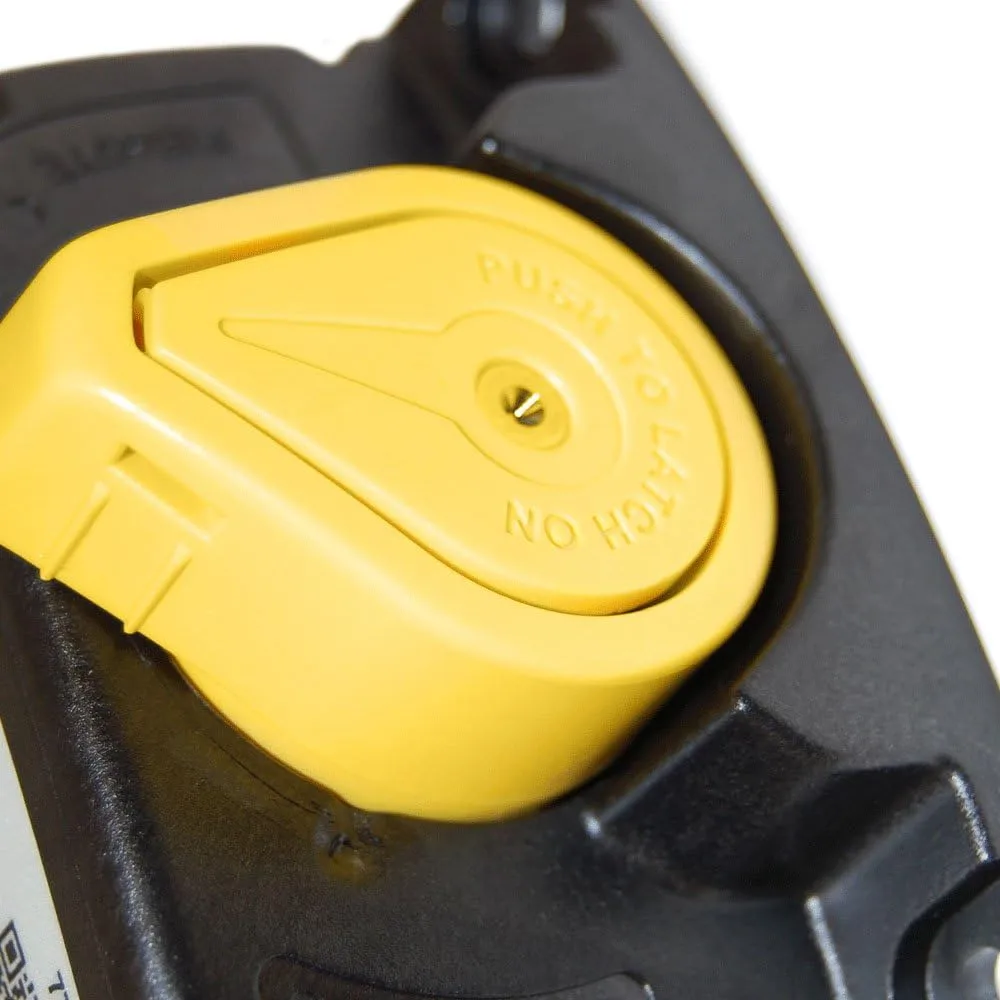

- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- Remotely control power to engines and electronic devices
Specifications:
| Materials & Construction | |
| Color | Beige |
| Material | Silver |
| Product Details | |
| Included Components | Blue Sea Systems 7702 ML-RBS 24V DC 500A Remote Battery Switch with Manual Control, Beige |
| Model Name | Blue Sea Systems 7702 ML-RBS 24V DC 500A Remote Battery Switch with Manual Control, Beige |
| Number of Items | 1 |
| Style | 24v Bi-stable W/ Knob |
| Sizing & Dimensions | |
| Height | 11.75 inches |
| Length | 6.75 inches |
| Product Dimensions | 6.75 x 3.2 x 11.75 inches |
| Size | One Size |
| Weight | 1.764 pounds |
| Width | 3.2 inches |
| Technical Specifications | |
| Actuator Type | Manual Override Knob |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Stud |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Control Method | Remote |
| Current Rating | 0.5 Amps |
| International Protection Rating | IP54 |
| Number of Positions | 2 |
| Operating Voltage | 24 Volts |
| Warranty | Warranty |
| Wattage | 1.2E+4 |
