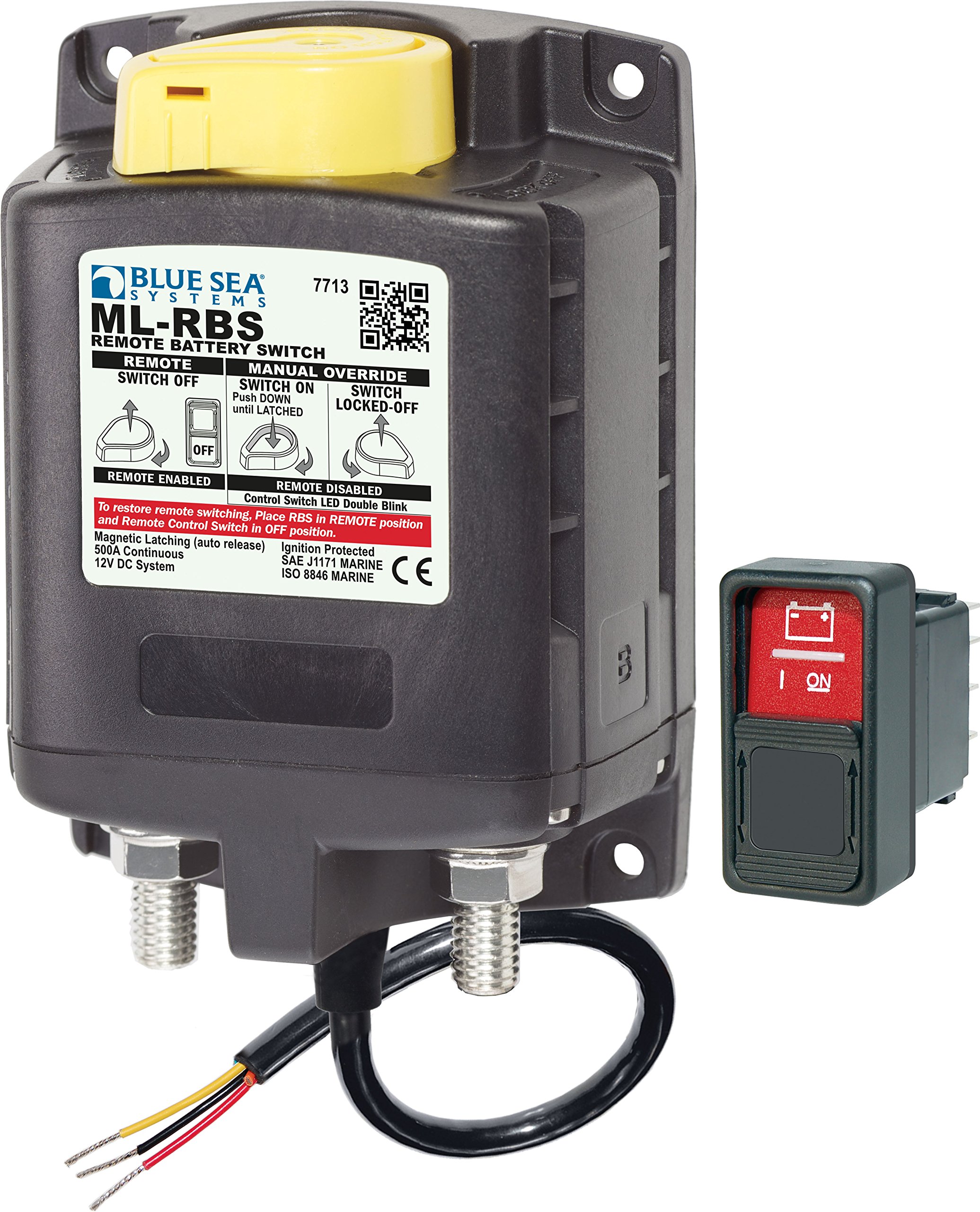

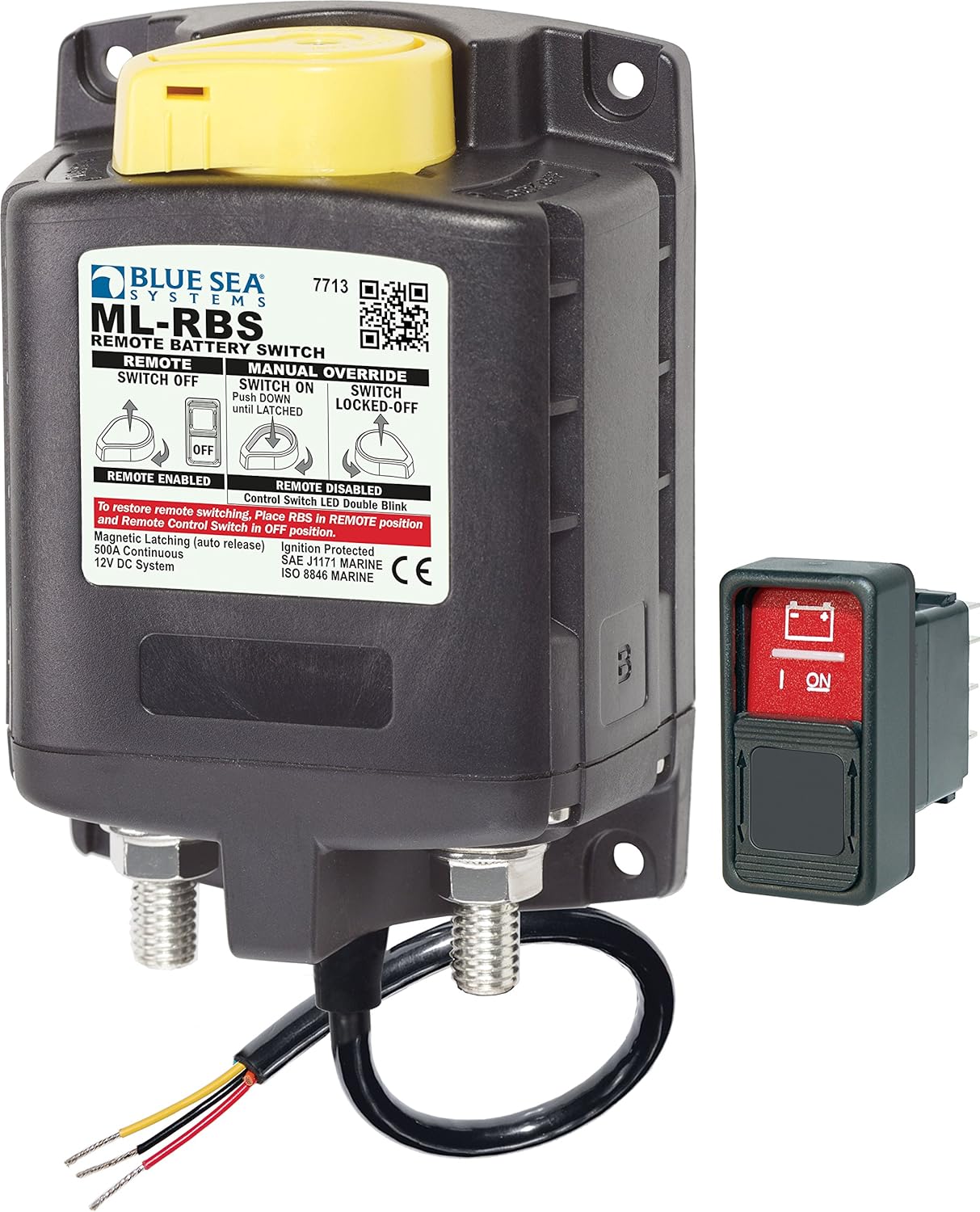

Blue Sea Systems 7713 ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/ 8" (22mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired Specifications Control Circuit Connection: Tinned Wire Nominal Voltage: 12V DC Coil Function: Auto releasing Mounting: #10 Amperage Operating Current: 8mA when OFF/13mA when ON Amperage Operating Current when changing state: Control Circuit Voltage: 10.1 to 16.5V DC Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating: 10 sec 2500A Cranking Rating: 1 min 1100A Minimum Operating Temperature: -10° C Maximum Operating Temperature: 50° C Cable Size to Meet Ratings: 2x (4/0) Live Current Switching: 300A @ 12V DC 10,000 Cycles Master Control Switch Capability: Yes Mechanical Endurance: 100,000 Cycles Switching Cycles: 100,000 Terminal Ring Diameter Clearance: 1.18" (29.97mm) Terminal Stud Length: 0.875" (22.23mm) Terminal Stud Size: 3/8-16 (M10) Terminal Stud Torque: 140 in-lb (15.82 Nm) Weight: 1.75lb (0.79 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov ., Lockable: Yes , Continuous Amperage: 500a. Features: LED output to remotely indicate switch state - requires optional LED. Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing. Remotely control power to engines and electronic devices. 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance; 7/8" (22 mm) stud length accepts multiple cable terminals.

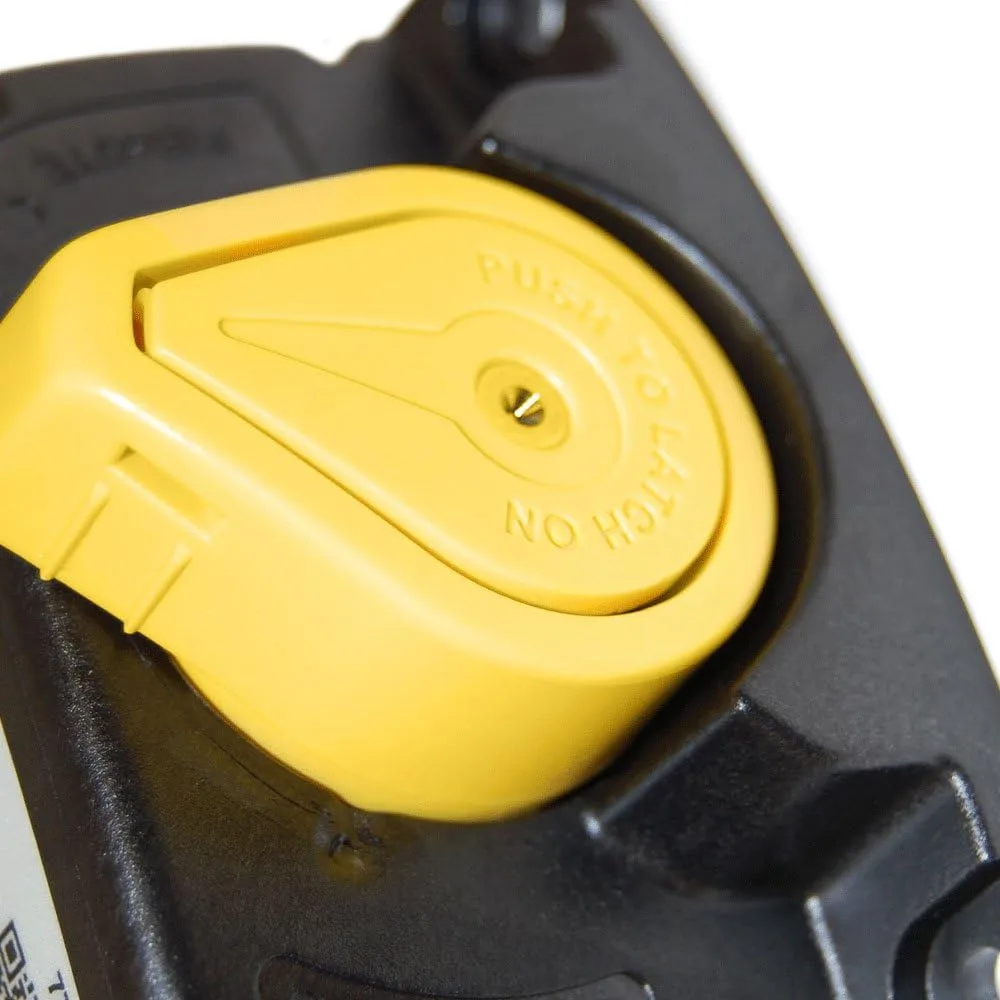

• Manual override knob provides an added level of safety allowing control with or withoutpower and offering LOCKED OFF capability for servicing
• Remotely control power to engines and electronic devices

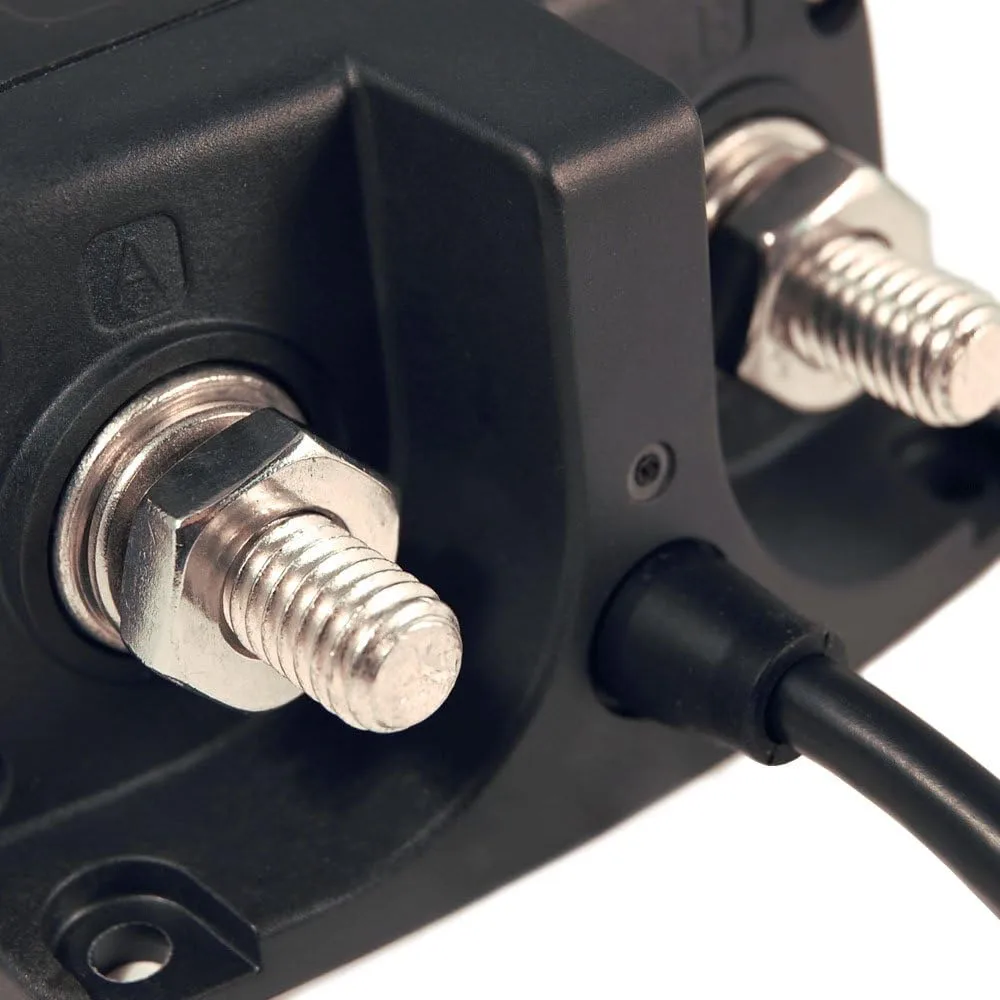

• 3/ 8 -16 tin-plated Copper studs for maximum conductivity and Corrosion resistance; 7/ 8 (22 mm) stud length accepts multiple cable terminals
• LED output to remotely indicate switch state - requires optional LED
• Manual override knob provides an added level of safety allowing Control with or without power and offering locked off capability for servicing
• Normally open relay (Replacement for Blue Sea Systems part number 7712)
