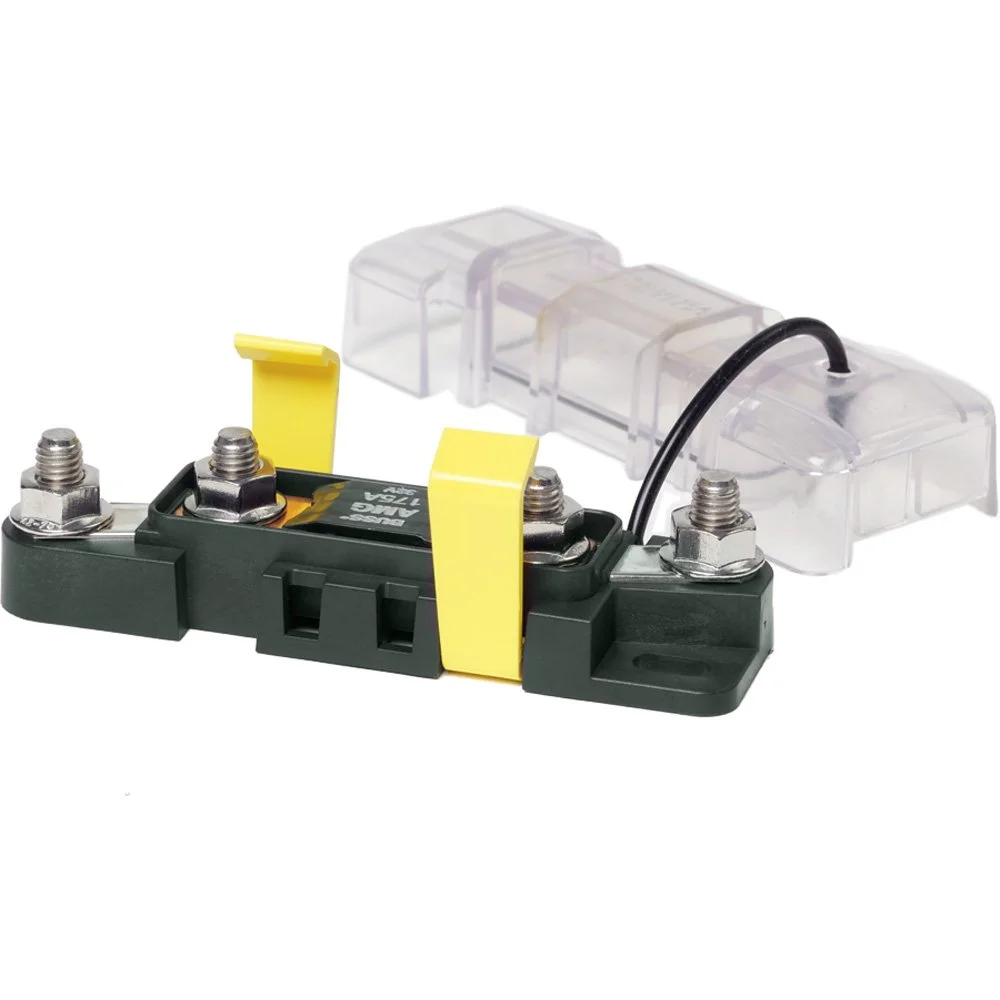

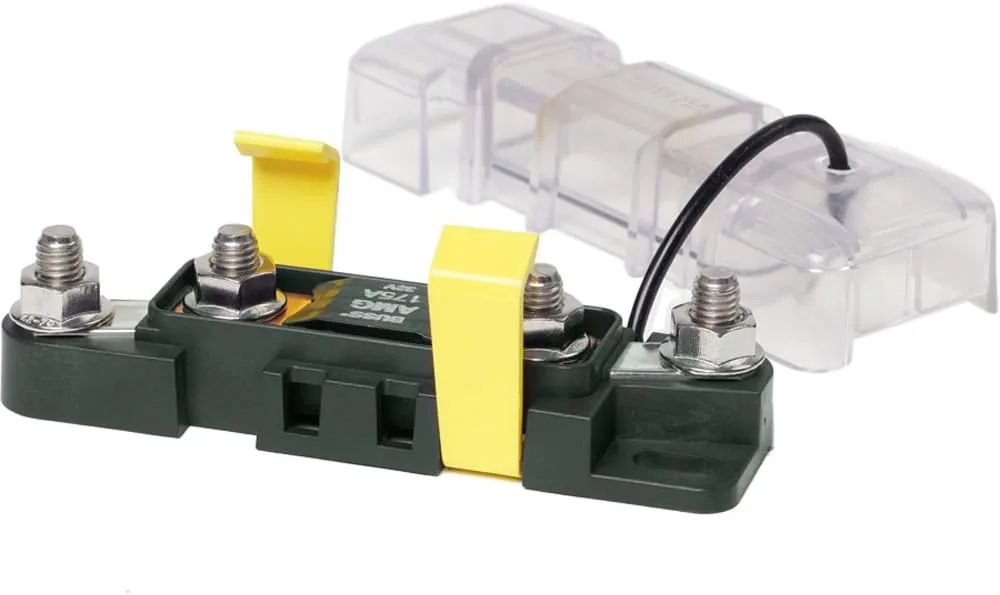

MEGA or AMG Fuse Safety Block. Ignition protected for installation aboard gasoline or diesel powered boats. Sealed cover protects fuses from the harsh marine environment. Insulating cover satisfies ABYC/USCG insulation requirements. Cover breakouts allow wire access in any direction. 300A maximum with 2/0 cable. Accepts Blue Sea Systems Square Format standard or custom label. Fuses sold separately. Included features: DIN rail mount option, screw connector type, 1 pole, 1 contact. Warranty: LIMITED WARRANTY. Proposition 65 warning applies.
- Insulating cover satisfies ABYC/USCG insulation requirements
- Sealed cover protects fuses from the harsh marine environment
- Ignition protected for installation aboard gasoline or diesel powered boats
Specifications:
| Materials & Construction |
| Color | Black |
| Material | Iron |
| Outer Material | Iron |
| Product Details |
| Connector Type | Screw |
| Current Rating | 300 Amps |
| Fuse Type | Mega/Amg |
| Global Trade Identification Number | 00632085077211 |
| Included Components | FUSE BLOCK SAFETY SEA/AMG |
| Model Name | FUSE BLOCK SAFETY SEA/AMG |
| Mounting Type | DIN Rail Mount |
| Number Of Contacts | 1 |
| Number of Items | 1 |
| Number Of Poles | 1 |
| Specification Met | Abyc/Uscg Insulation Requirements |
| Type | Fuse Blocks |
| UPC | 632085077211 696582459314 995889633541 611104332241 012302849973 |
| Voltage | 32 Volts |
| Warranty | LIMITED WARRANTY |
| Sizing & Dimensions |
| Height | 2 inches |
| Length | 7.75 inches |
| Product Dimensions | 7.75 x 4 x 2 inches |
| Product Weight | 0.15 Pounds |
| Weight | 2.4 ounces |
| Width | 4 inches |
| Technical Specifications |
| Connector Type | Screw |
| Current Rating | 300 Amps |
| Mounting Type | DIN Rail Mount |
| Number Of Contacts | 1 |
| Number Of Poles | 1 |
| Specification Met | Abyc/Uscg Insulation Requirements |
| Voltage | 32 Volts |
