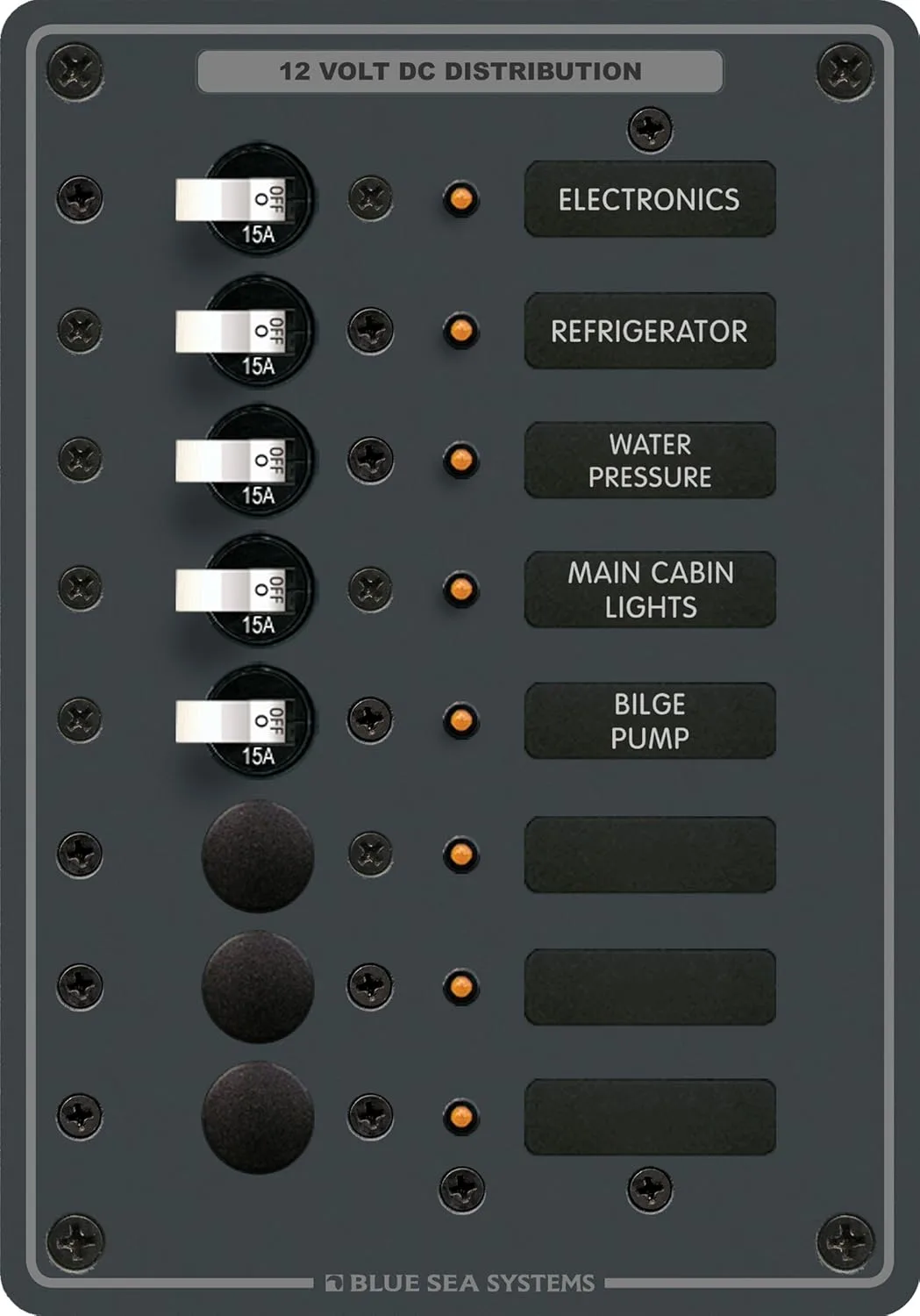

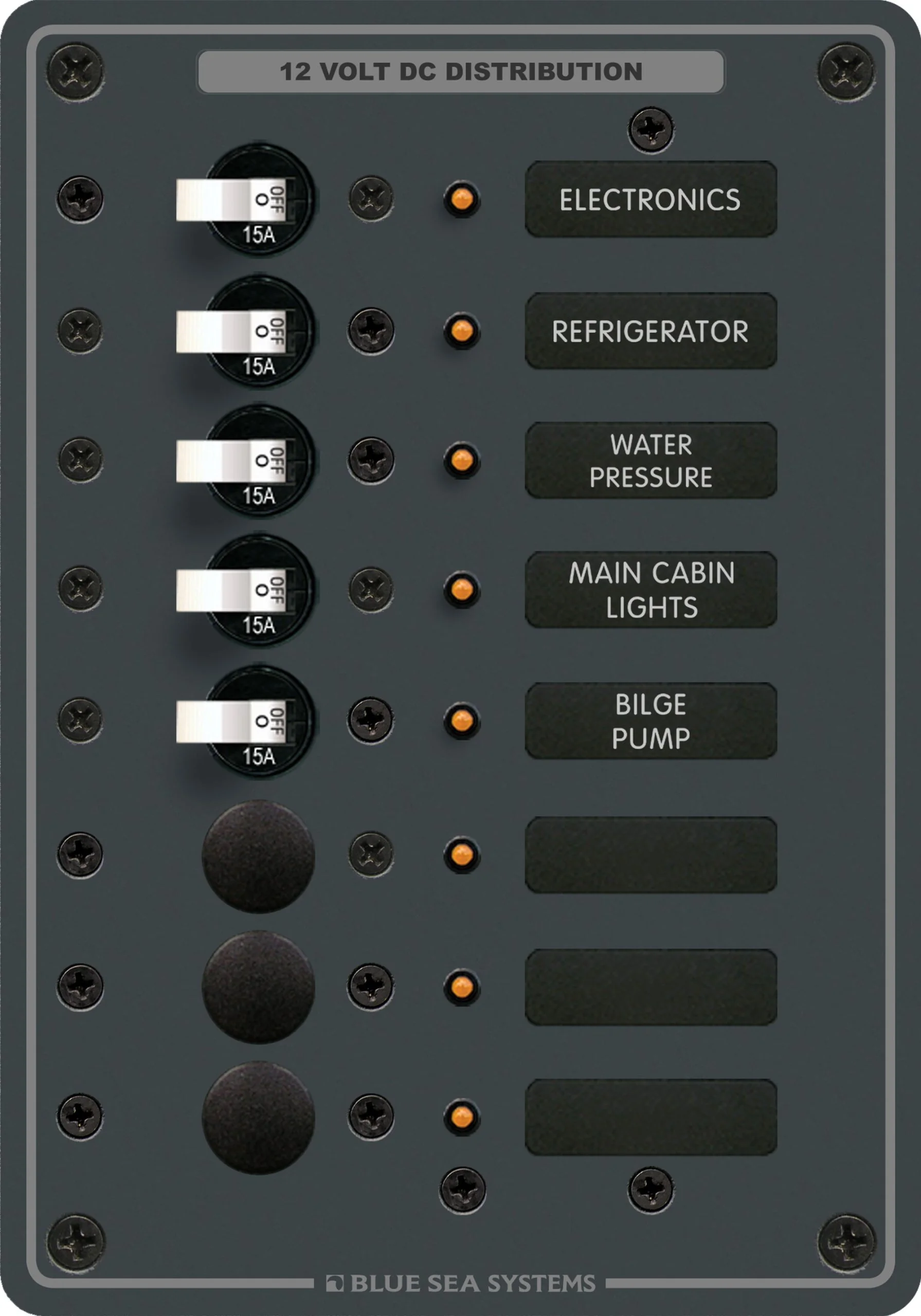

Blue Sea Systems 8023 Traditional Metal DC Panel - 8 Positions Black
Customize
8023 DC 8 Position Circuit Breaker - White Switches Features: All positive, negative and grounding buses installed, fully pre-wired Panels with meters include toggle switch for mounting up to 3 battery banks All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters) All circuit label positions are backlit on standard panels - No kit required "ON" indicating LEDs installed in all circuit positions Specifications: Positions: 8 Nominal Voltage: 12v / 24v DC Maximum Amperage: 100A Height: 7.5" Width: 5.25" Included: (5) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (1) 8030 Basic DC Panel Label Set - 30 Labels WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . DC Distribution Panel, MFG# 8023, Five 15 Amp breakers w/ white toggle switch and 3 open positions. 12 or 24 VDC, with Negative bus and LED indicators. 5. 25"W x 7. 25"H. 100 Amp Max.
- Package length: 28.194 cm
- Package width: 15.748 cm
- Package height: 10.922 cm
- Product Type: FISHING EQUIPMENT
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| AC/DC | DC |
| Circuit Type | 8 way |
| Connectivity Protocol | X-10 |
| Connector Type | Wire Leads |
| Contact Material | Metal |
| Control Method | Touch |
| Included Components | item and manual |
| Max Breaker Quantity | 8 |
| Number of Positions | 8 |
| Operation Mode | manual |
| Terminal | Screw |
| Voltage | 12/24v |
| Warranty | 1 Year Limited |
| Wattage | 1.2E+3 |
| Sizing & Dimensions | |
| Height | 12 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 7 x 12 inches |
| Size | 8 positions |
| Weight | 1.95 pounds |
| Width | 7 inches |
| Technical Specifications | |
| AC/DC | DC |
| International Protection Rating | IP65 |
| Max Amperage | 100A |
| Voltage Specification | 12/24v |
