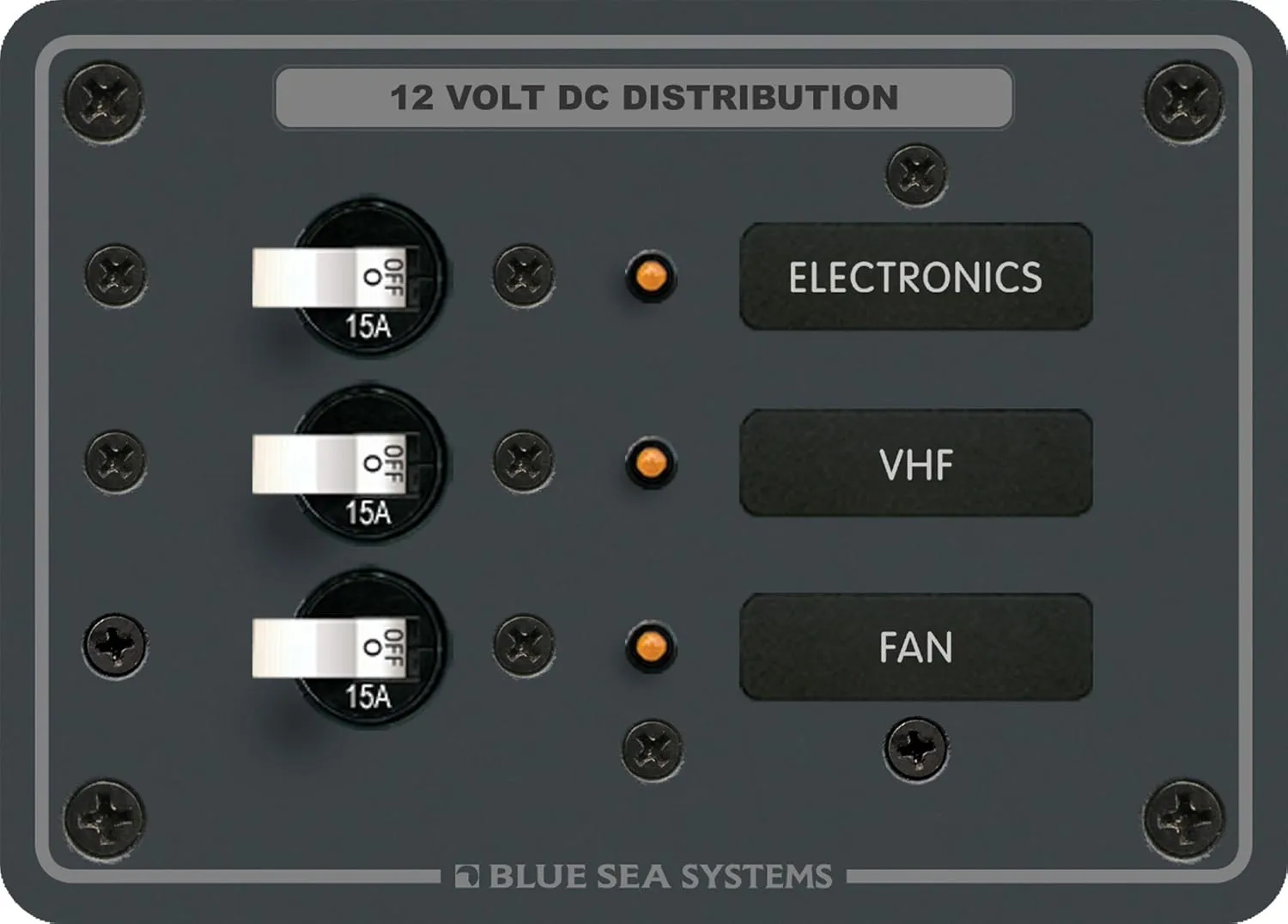

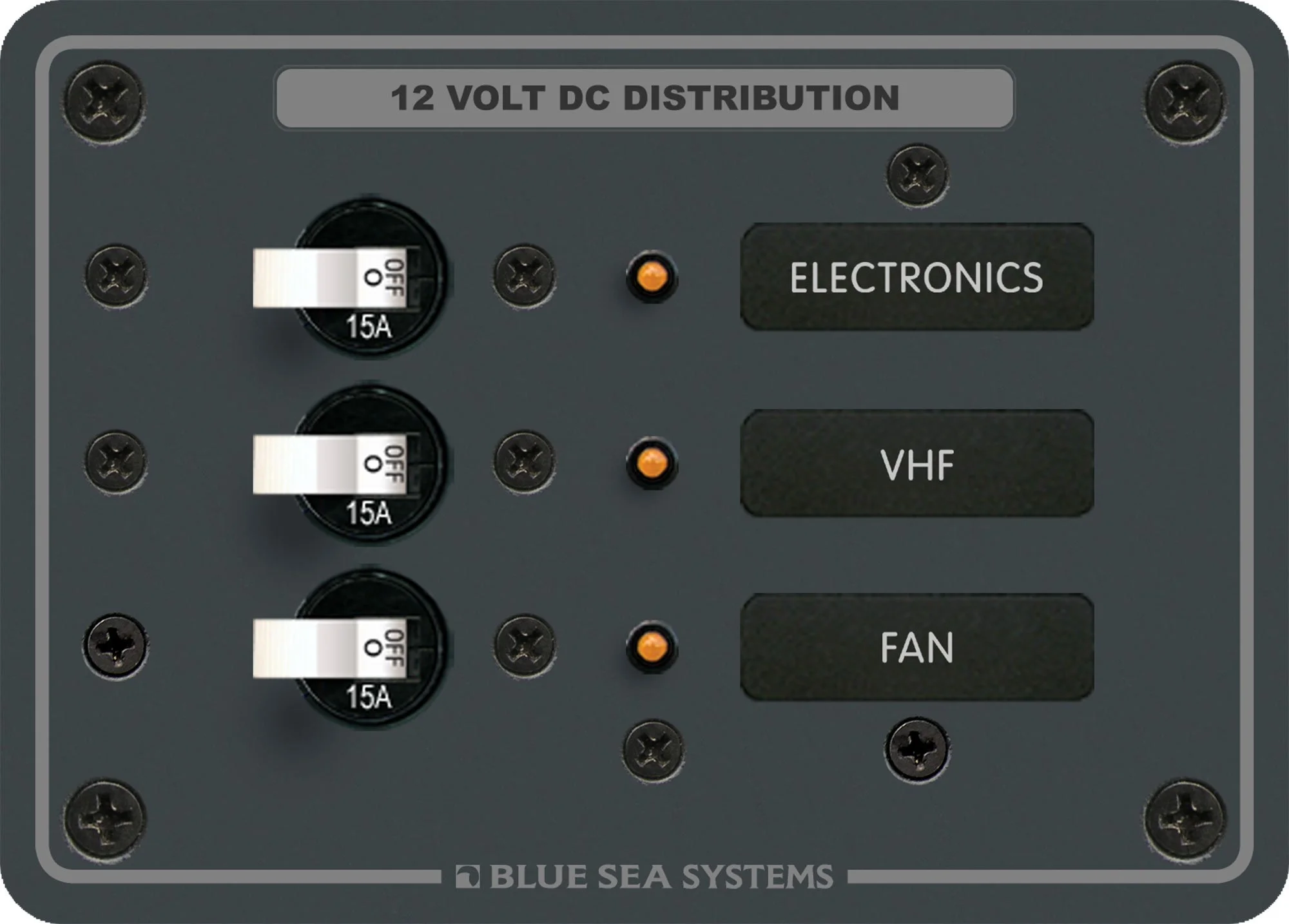

Blue Sea Systems 8025 Traditional Metal DC Panel - 3 Positions, White
Customize
8025 DC 3 Position Breaker Panel - White Switches. Features: All positive, negative and grounding buses installed, fully pre-wired. Panels with meters include toggle switch for mounting up to 3 battery banks. All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters). All circuit label positions are backlit on standard panels - No kit required. "ON" indicating LEDs installed in all circuit positions. Specifications (combined): Positions: 3; Nominal Voltage: 12v / 24v DC; Maximum Amperage: 100A. Height: 3.75"; Width: 5.25". Included: (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A; (1) 8030 Basic DC Panel Label Set - 30 Labels. Rainforest marketing and specs: Contact Material: Stainless Steel Or Marine-grade Brass; Actuator Type: manual switch; Circuit Type: 3 way; Item dimensions L x W x H: 8.1 x 6.1 x 4.4 inches; Terminal: Screw; Connector Type: Screw Terminals; Contact Type: Mechanical Toggle; Operating Voltage: 24 Volts (DC); Operation Mode: ON-OFF; Number of Positions: 3; International Protection Rating: IP54. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- AFFORDABLE PARTS
- Part number: 8025
- Included components: PANEL DC 3 SWITCH
- Package Dimensions: 20.574 L x 11.176 H x 15.494 W (centimeters)
Specifications:
| Materials & Construction | |
| Color | White |
| Contact Material | Stainless Steel Or Marine-grade Brass |
| Product Details | |
| Actuator Type | manual switch |
| Circuit Type | 3 way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw Terminals |
| Contact Type | Mechanical Toggle |
| Control Method | Touch |
| Global Trade Identification Number | 00632085080259 |
| International Protection Rating | IP54 |
| Item model number | 8025 |
| Number of Items | 1 |
| Number of Positions | 3 |
| Operating Voltage | 24 Volts (DC) |
| Operation Mode | ON-OFF |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Wattage | 1.2E+3 |
| Sizing & Dimensions | |
| Height | 4.4 inches |
| Length | 8.1 inches |
| Product Dimensions | 8.1 x 6.1 x 4.4 inches |
| Weight | 1 pounds |
| Width | 6.1 inches |
| Technical Specifications | |
| AC/DC | Dc |
| International Protection Rating (note) | IP54 |
| Max Breaker Quantity | 3 |
| Operating Voltage (note) | 24 Volts (DC) |
| Voltage | 12/24v |
