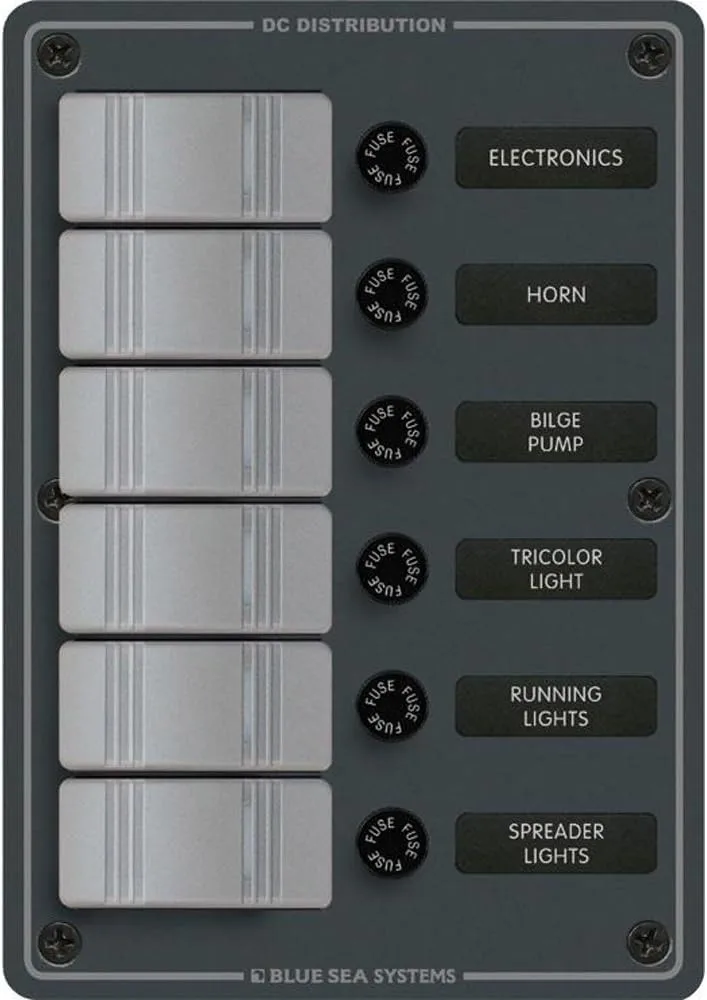

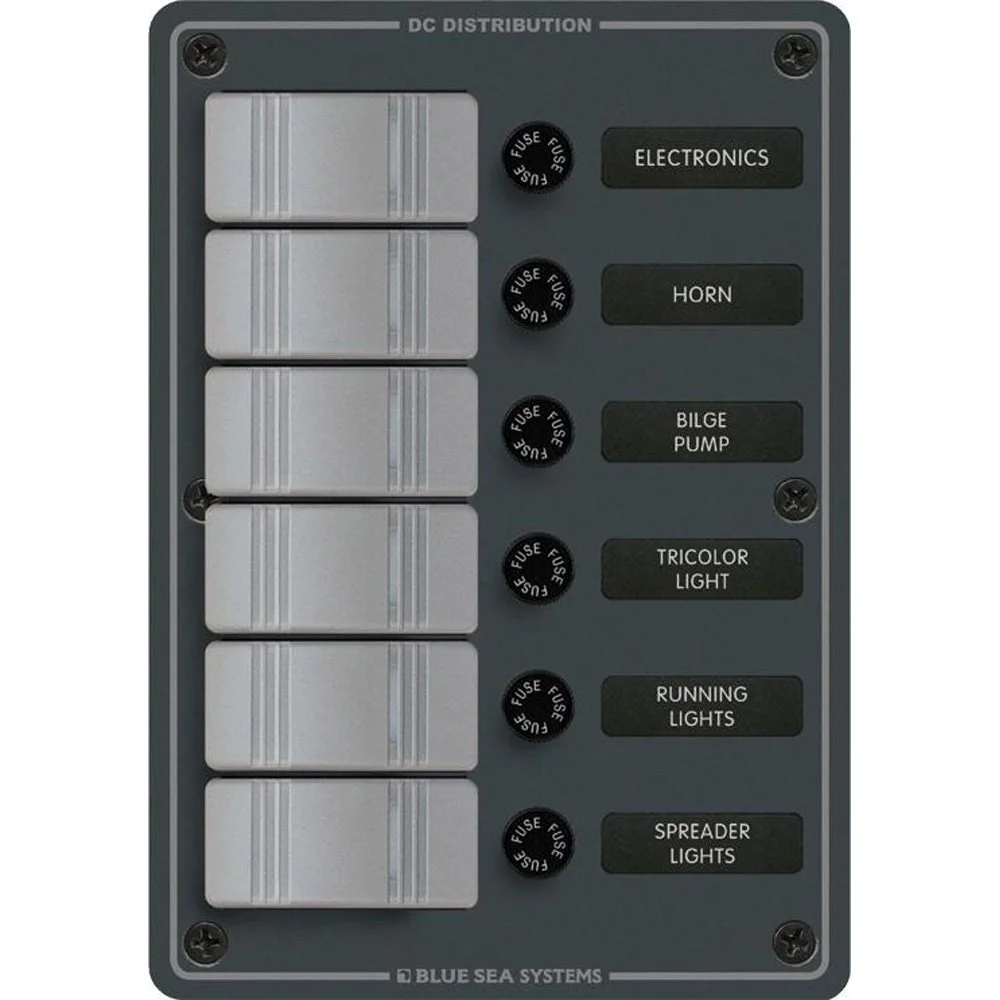

Blue Sea 8053 Slate Grey - 6 Position - Vertical
Customize
8053 Slate Grey - 6 Position - Vertical. Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions. Designed for flybridge and open cockpit applications. ON-OFF Contura Switches with ON indicating LEDs embedded in switches. Watertight mounting gasket included. Countersunk mounting holes throughout. Two-part polyurethane slate gray finish. Industry standard height and width. Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion. Completely wired and ready to install. Includes (6) 5021 Panel Mount AGC/MDL Fuse Holder; (1) 8030 Basic DC Panel Label Set - 30 Labels; (6) 8230 Contura Switch SPST Gray - OFF-ON. NOTE: Waterproof panel labels are not backlit. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Included components: Manual
- The Package Width Of The Package Is 14 Inches
- The Package Length Of The Product Is 15 Inches
- The Package Height Of The Product Is 13 Inches
- Country Of Origin : United States
Specifications:
| Materials & Construction | |
| Color | Slate Grey |
| Material | Stainless Steel |
| Outer Material | Stainless Steel |
| Product Details | |
| Ac/dc | Dc |
| Actuator Type | Mechanical Toggle Switch |
| Circuit Type | versatile |
| Connectivity Protocol | X-10 |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 20 Amps |
| Global Trade Identification Number | 00632085080532 |
| Included Components | Great Product |
| International Protection Rating | IP54 |
| Max Breaker Quantity | 6 |
| Model Name | 8053 |
| Number of Items | 1 |
| Number of Positions | 6 |
| Operation Mode | ON-OFF |
| Terminal | Physical |
| Unit Count | 1 Count |
| Voltage | 12/24v |
| Warranty Description | Warranty |
| Waterproof | Resistant |
| Wattage | 480 watts |
| Sizing & Dimensions | |
| Height | 12 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 7 x 12 inches |
| Size | One Size |
| Weight | 5.60 ounces |
| Width | 7 inches |
| Technical Specifications | |
| Current Rating Detail | 20 Amps |
| International Protection Rating | IP54 |
| Operating Voltage | 24 Volts |
